Shift Indicator - A/T: Testing and Inspection

A/T INDICATOR

A/T Indicator Does Not Illuminate

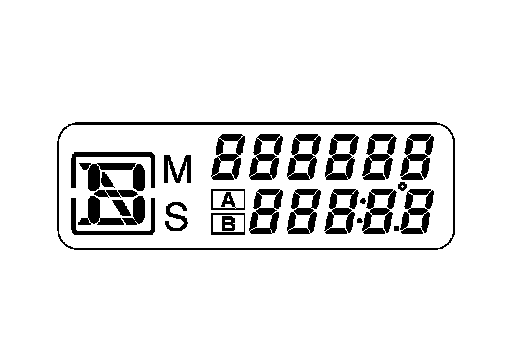

1. CHECK SEGMENT OF A/T INDICATOR






Perform self-diagnosis of combination meter. Self-Diagnosis Mode of Combination Meter.
Are all segments displayed?
YES- GO TO 2.
NO- Replace combination meter. Removal And Installation.

2. CHECK COMBINATION METER (CONSULT)

1.Connect CONSULT.
2.Select "METER/M&A" on CONSULT, and perform self-diagnosis of combination meter. Combination Meters.
Self-diagnostic results content
No malfunction detected-GO TO 3.
Malfunction detected- Check applicable parts, and repair or replace as necessary.

3. CHECK COMBINATION METER INPUT SIGNAL

Use "DATA MONITOR" of "METER/M&A" on CONSULT. Confirm each indication on the monitor when operating the A/T selector lever.





OK or NG
OK- Replace combination meter. Removal And Installation.
NG- GO TO 4.

4. CHECK SELF-DIAGNOSIS RESULTS OF TCM

Perform self-diagnosis of TCM. Automatic Transmission.
OK or NG
OK- Check TCM input/output signal. Repair or replace malfunctioning part, if necessary. Automatic Transmission.
NG- Check applicable part, and repair or replace as necessary.
