Output Speed Sensor

ON-VEHICLE SERVICE

Output Speed Sensor

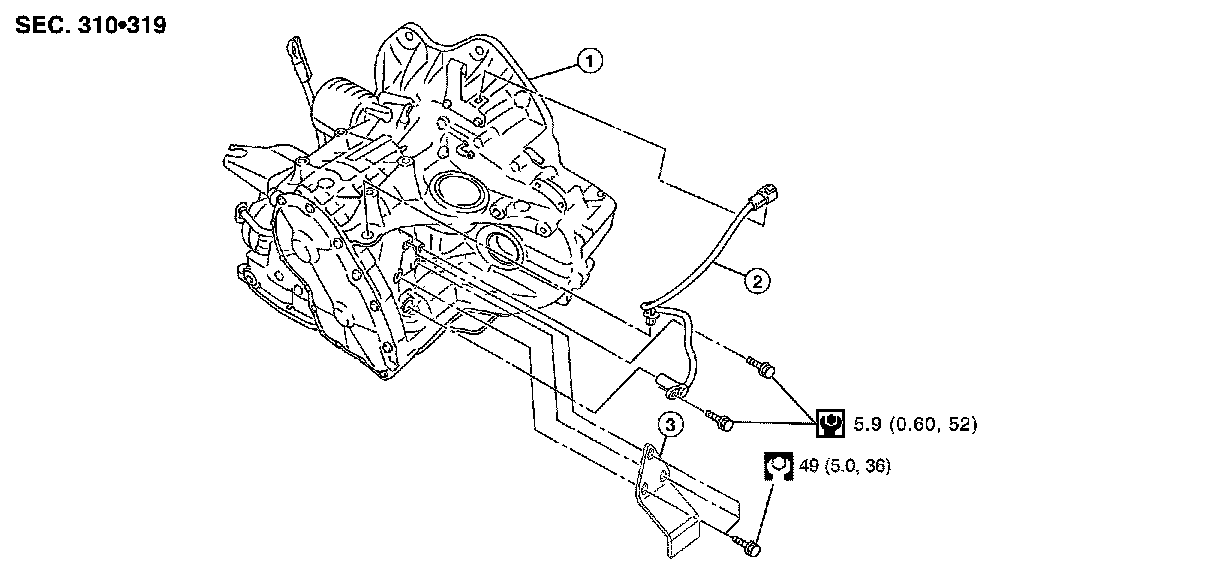

COMPONENTS












REMOVAL AND INSTALLATION

Removal
1.Disconnect the battery negative terminal.
2.Remove air duct (inlet), air duct and air cleaner case. Component.

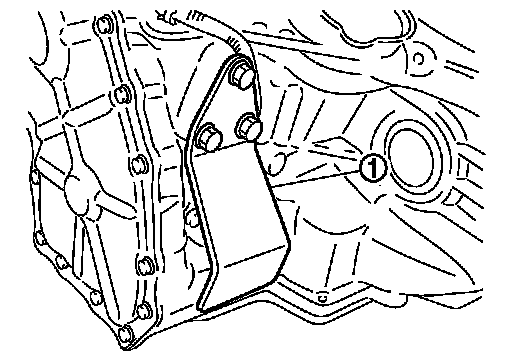

3.Remove gusset (1).





4.Disconnect output speed sensor harness connector.

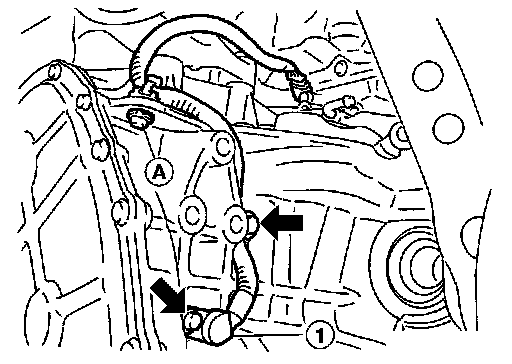

5.Remove clip (A).

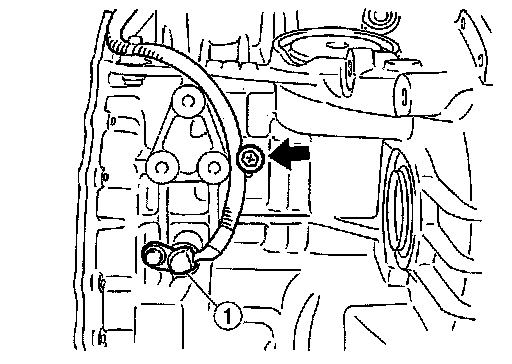

6.Remove output speed sensor (1) from A/T.






7.Remove O-ring from output speed sensor (1)
Installation
Installation is in the reverse order of removal.

CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.





- Ensure output speed sensor harness is firmly secured with bolt.
