Final Drive

FINAL DRIVE

Disassembly and Assembly


DISASSEMBLY

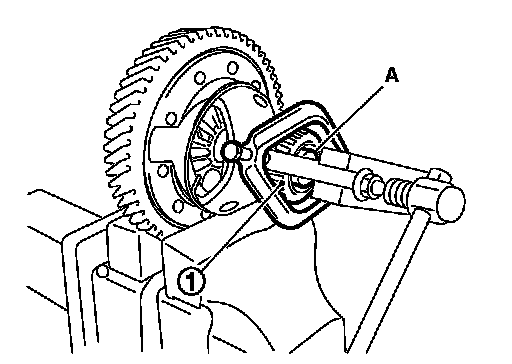

1.Remove differential side bearing inner race (clutch housing side)
(1) according to the following procedures.
a.Set a suitable tool to differential side bearing inner race (clutch housing side).
b.Remove differential side bearing inner race (clutch housing side)
using Tool (A).
Tool number(A): ST-33061000 (J-8107-2)
2.Remove speedometer drive gear.

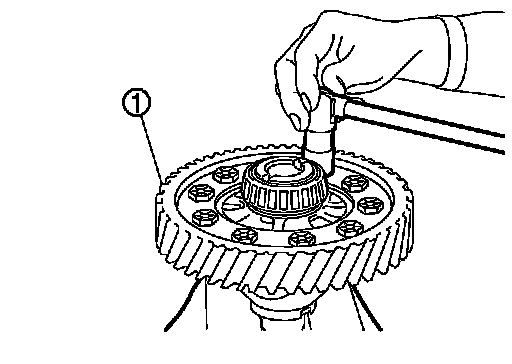

3.Remove final gear bolts, and then remove final gear (1).

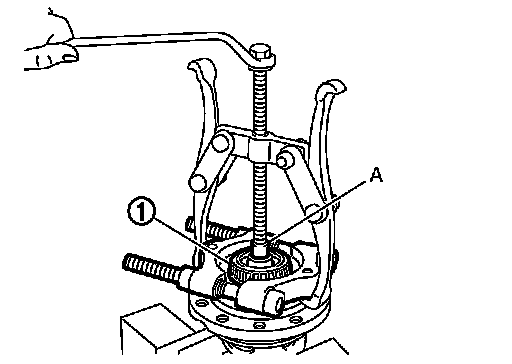

4.Remove differential side bearing inner race (transaxle case side) (1) according to the following procedures.
a.Set a suitable tool to differential side bearing inner race (transaxle case side).
b.Remove differential side bearing inner race (transaxle case side) using a suitable tool (A).

INSPECTION AFTER DISASSEMBLY

Gear and Case
Check final gear and differential case. Replace if necessary.

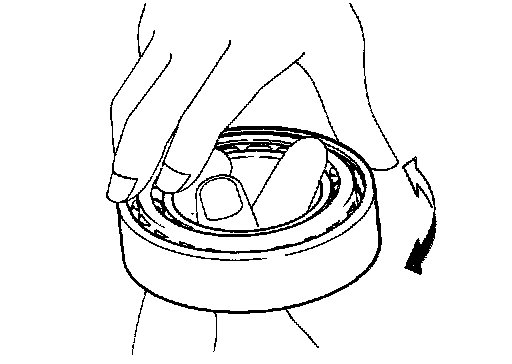

Bearing





Check bearing for damage and rough rotation. Replace if necessary.

CAUTION:
- Replace differential side bearing outer race (clutch housing side) and differential side bearing inner race (clutch housing side) as a set.
- Replace differential side bearing inner race (transaxle case side) and differential side bearing outer race (transaxle case side) as a set.

ASSEMBLY

1.Install final gear, and then tighten final gear bolts to the specified torque. .

CAUTION:
Replace final gear and differential case as a set.
2.Install speedometer drive gear.

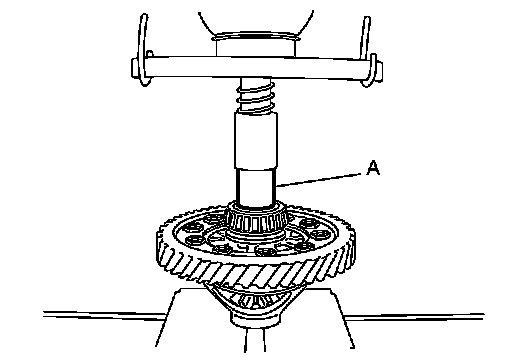

3.Install differential side bearing inner race (clutch housing side)
using a suitable tool (A).

CAUTION:
Replace differential side bearing inner race (clutch housing side) and differential side bearing outer race (clutch housing side) as a set.

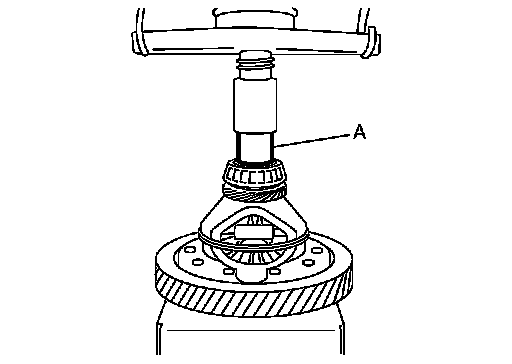

4.Install differential side bearing inner race (transaxle case side)
using a suitable tool (A).

CAUTION:
Replace differential side bearing inner race (transaxle case side) and differential side bearing outer race (transaxle case side) as a set.
