Side Oil Seal

SIDE OIL SEAL

Removal and Installation


REMOVAL

1.Remove front drive shafts from transaxle assembly. Front Drive Shaft Left Side
and Front Drive Shaft Right Side.





2.Remove differential side oil seal (1) using a suitable tool.

CAUTION:
Be careful not to damage transaxle case and clutch housing.

INSTALLATION






Installation is in the reverse order of removal.
- Install differential side oil seal (1) to clutch housing and transaxle case using Tool.

CAUTION:
Do not reuse oil seal.

Tool number: KV-32500QAA (B.vi 1666-B)

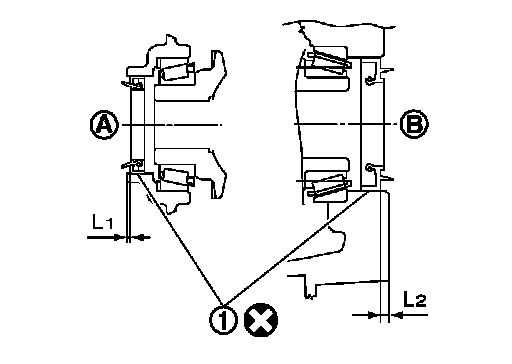

- (A): Transaxle case side
- (B): Clutch housing side
Dimension (L1): 1.2 - 1.8 mm (0.047 - 0.071 in)
Dimension (L2): 2.7 - 3.3 mm (0.106 - 0.130 in)

CAUTION:
- Do not reuse differential oil seal
- Do not incline differential oil seal.
- Do not damage clutch housing and transaxle case.
- Check oil level after installation. Checking M/T Oil.
