Home >> Nissan-Datsun >> 2012 >> Versa Hatchback L4-1.8L (MR18DE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Continuously Variable Transmission/Transaxle >> Specifications >> Mechanical Specifications >> General Specification

General Specification

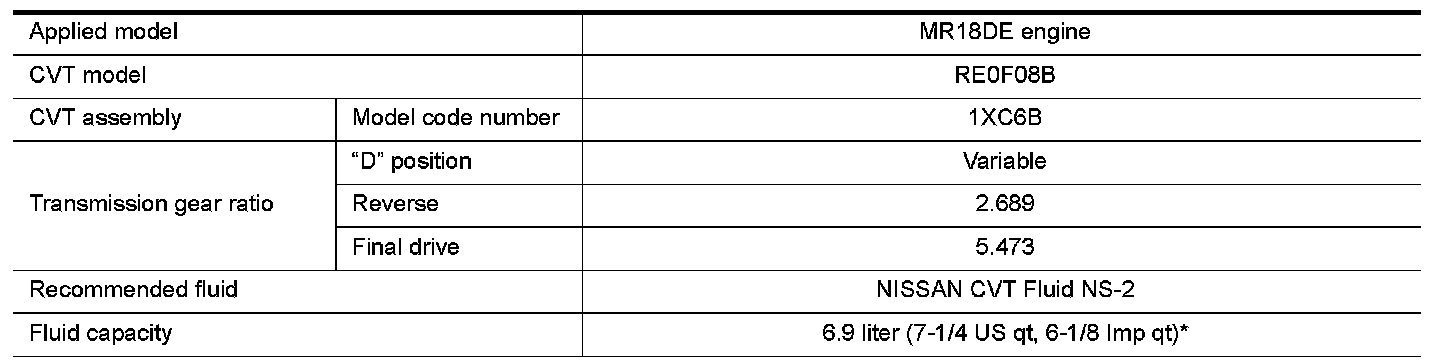

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification






*: The fluid capacity is the reference value. Check the fluid level with CVT fluid level gauge.
