Changing CVT Fluid




CVT FLUID

Changing CVT Fluid

1.Warm up CVT fluid by driving the vehicle for 10 minutes.

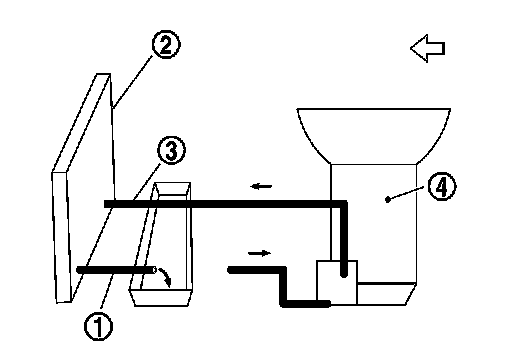

- White arrow indicates : Vehicle front
- Radiator (2)
- CVT fluid cooler hose [inlet side (3)]
- Transaxle assembly (4)
2.Drain CVT fluid from CVT fluid cooler hose [outlet side (1)] and refill with new specified NISSAN CVT fluid in the CVT fluid charging pipe with the engine running at idle speed.
Fluid capacity and grade:Fluids and Lubricants.

CAUTION:
Only use the specified NISSAN CVT fluid.
3.Refill until new CVT fluid comes out from CVT fluid cooler hose [outlet side (1)].
NOTE:
About 30 to 50% extra fluid will be required for this procedure.
4.Check fluid level and condition. Checking CVT Fluid.

CAUTION:
Delete CVT fluid deterioration date with CONSULT after changing CVT fluid. Trouble Diagnosis.
