Removal And Installation Procedure For CVT Unit Connector

PRECAUTIONS

Removal and Installation Procedure for CVT Unit Connector


REMOVAL

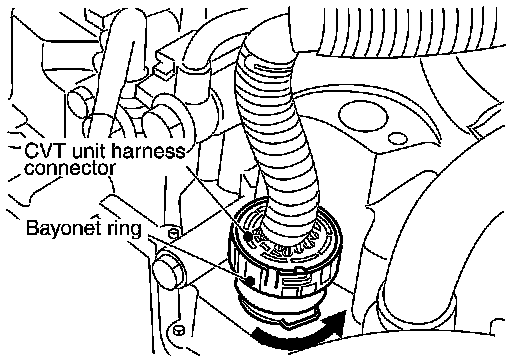

Rotate bayonet ring counterclockwise, pull out CVT unit harness connector upward and disconnect it.

INSTALLATION

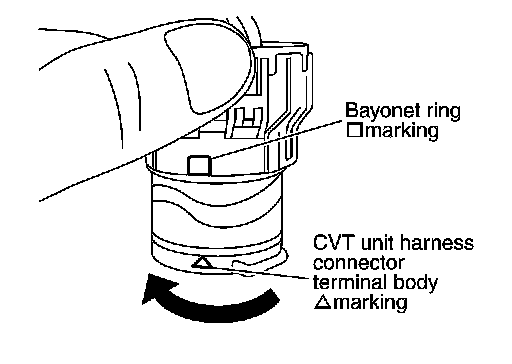

1.Align CVT unit harness connector terminal body marking with bayonet ring marking, insert CVT unit harness connector, and then rotate bayonet ring clockwise.

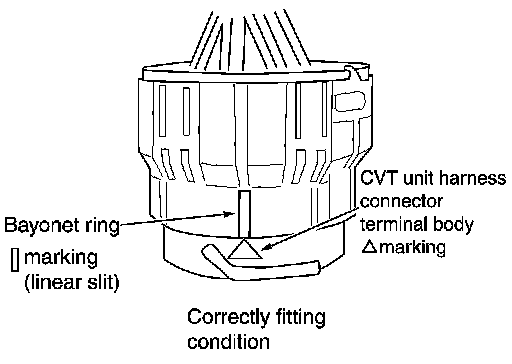

2.Rotate bayonet ring clockwise until CVT unit harness connector terminal body marking is aligned with the bayonet ring marking (linear slit) as shown.

CAUTION:

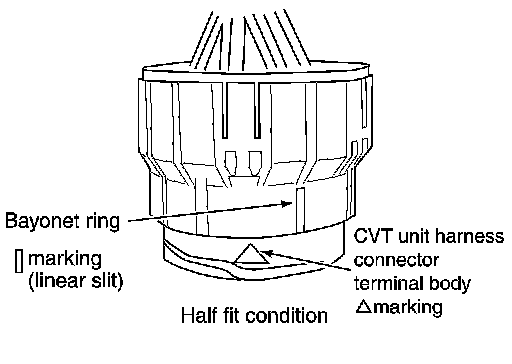

- Securely align CVT unit harness connector terminal body marking with bayonet ring marking (linear slit). Do not make a half fit condition as shown.
- Do not mistake the bayonet ring marking (linear slit) for other dent portion.
