Scan Tool Testing and Procedures

DIAGNOSIS SYSTEM (EPS CONTROL UNIT)

CONSULT Function


FUNCTION

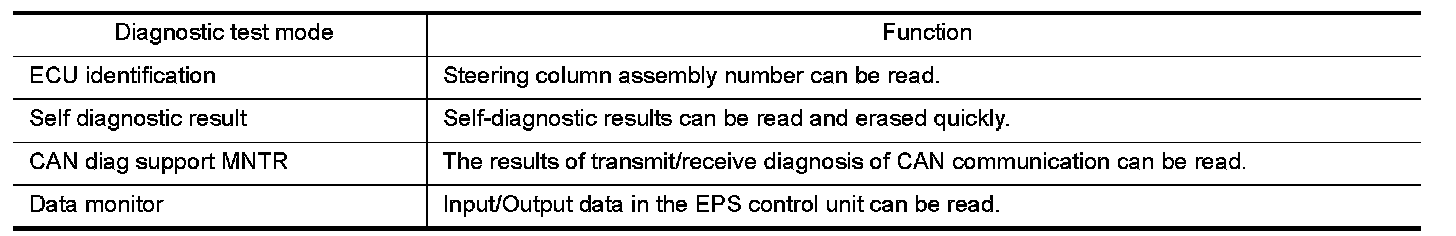

CONSULT can display each diagnostic item using the diagnostic test modes shown following.






ECU IDENTIFICATION

Displays the part number stored in the control unit.

SELF-DIAG RESULTS MODE

Display Item List
Testing and Inspection.

CAUTION:
If "CAN COMM CIRCUIT [U1000]" is displayed with other DTCs, first perform the trouble diagnosis for
CAN communication line.

DATA MONITOR MODE

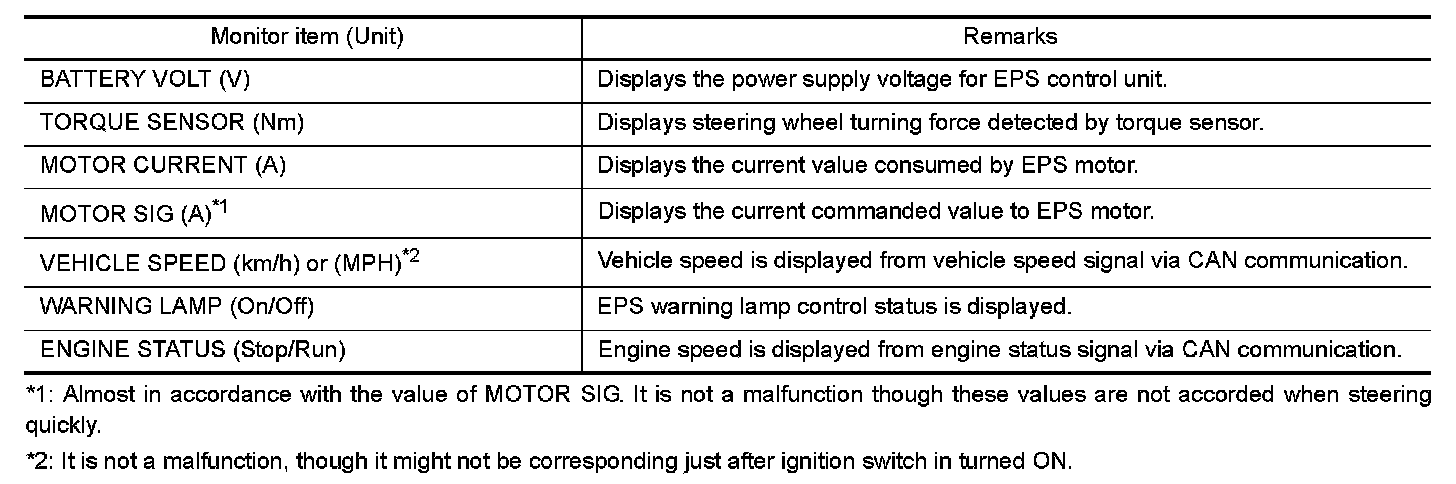

Display Item List
