Pinout Values and Diagnostic Parameters




EPS CONTROL UNIT

Reference Value

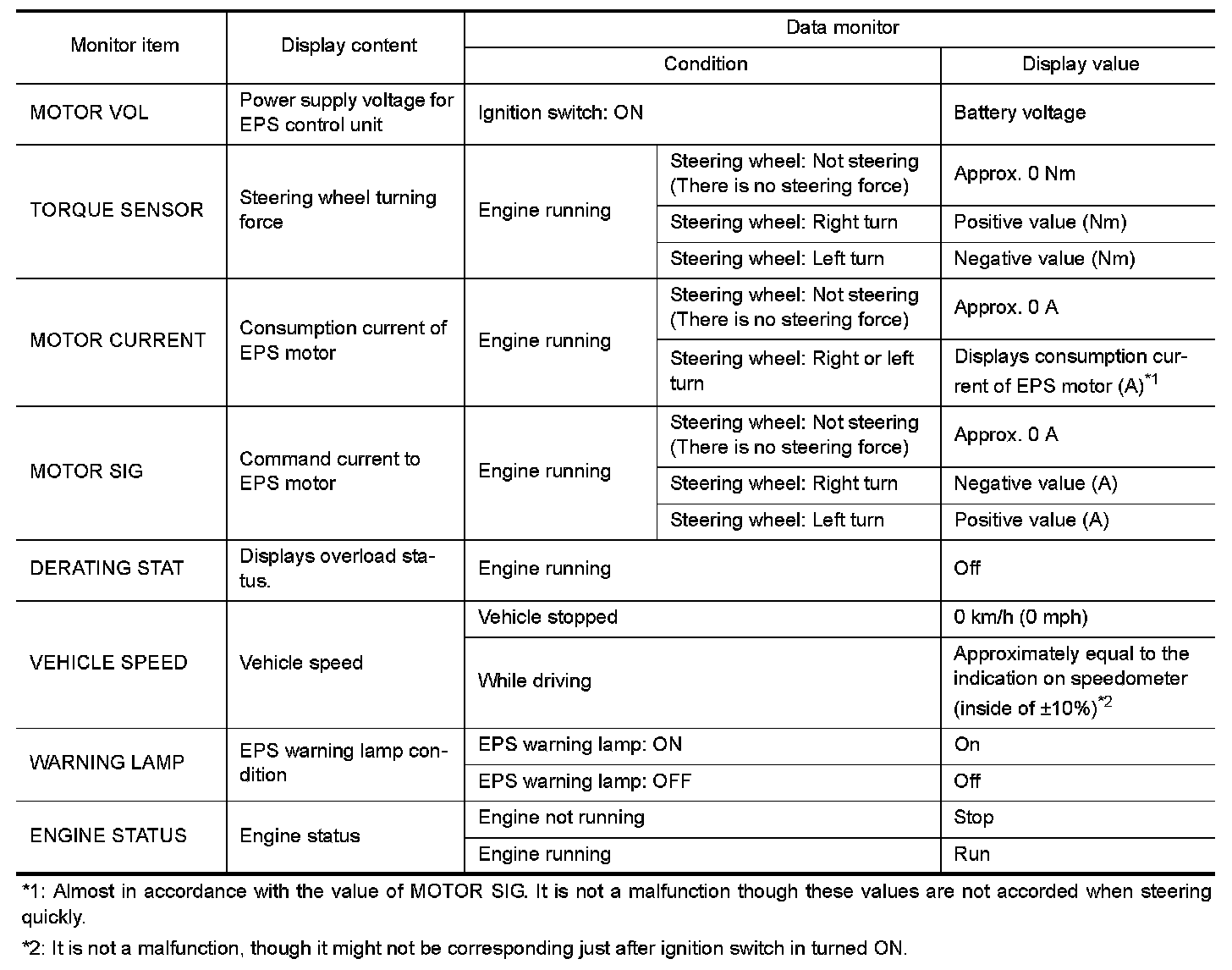

VALUES ON THE DIAGNOSIS TOOL


CAUTION:
The output signal indicates the EPS control unit calculation data. The normal values will be displayed even in the event that the output circuit (harness) is open.

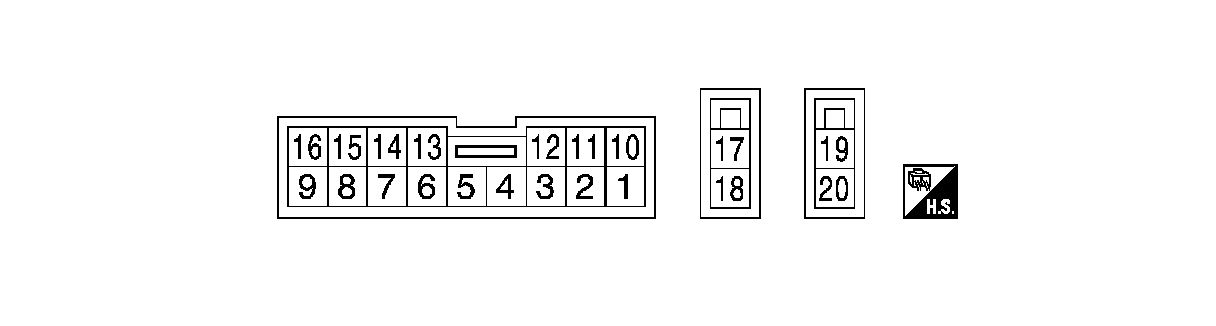

TERMINAL LAYOUT

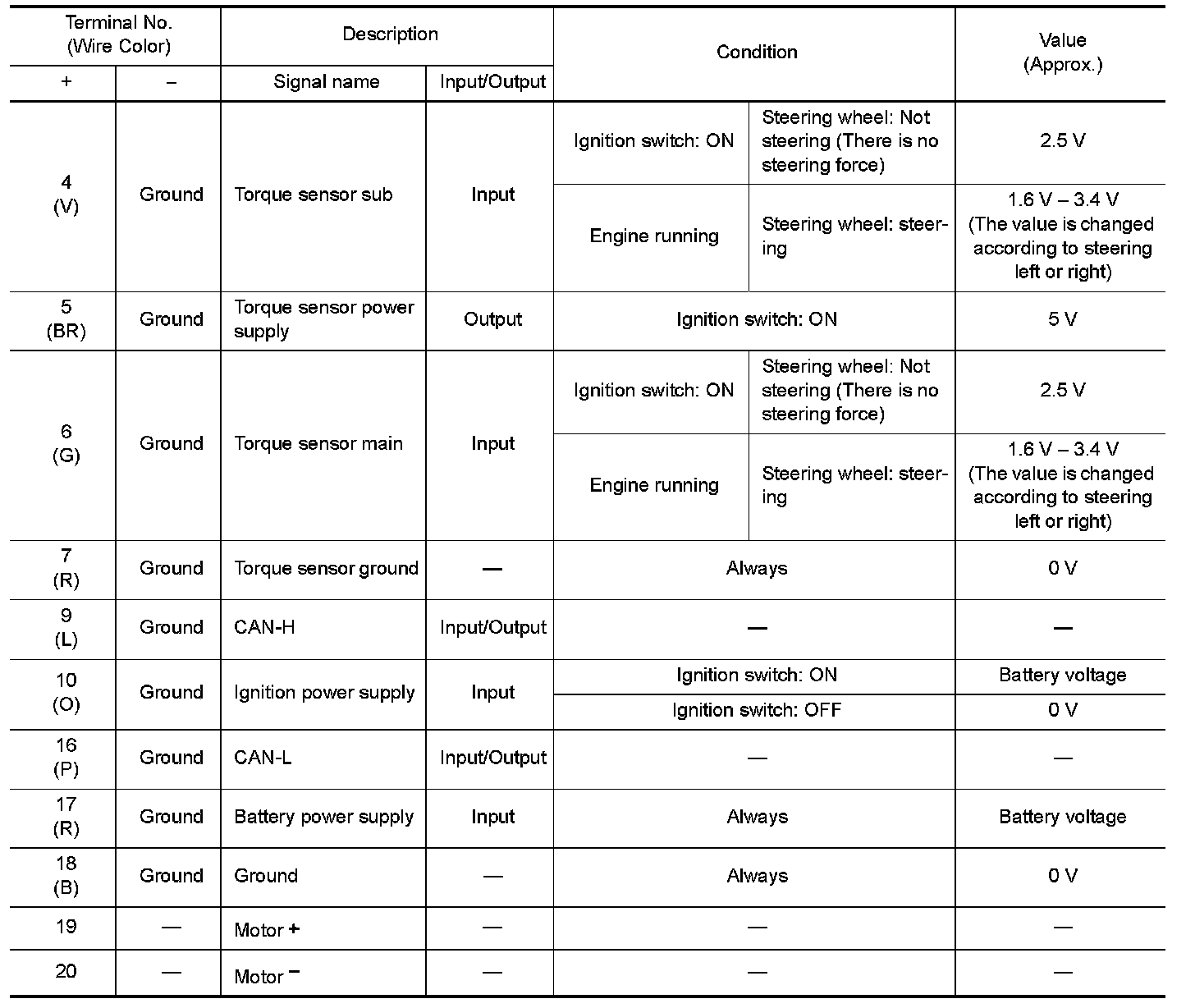

PHYSICAL VALUES
