Power and Ground Distribution: Locations




GROUND CIRCUIT

Ground Distribution

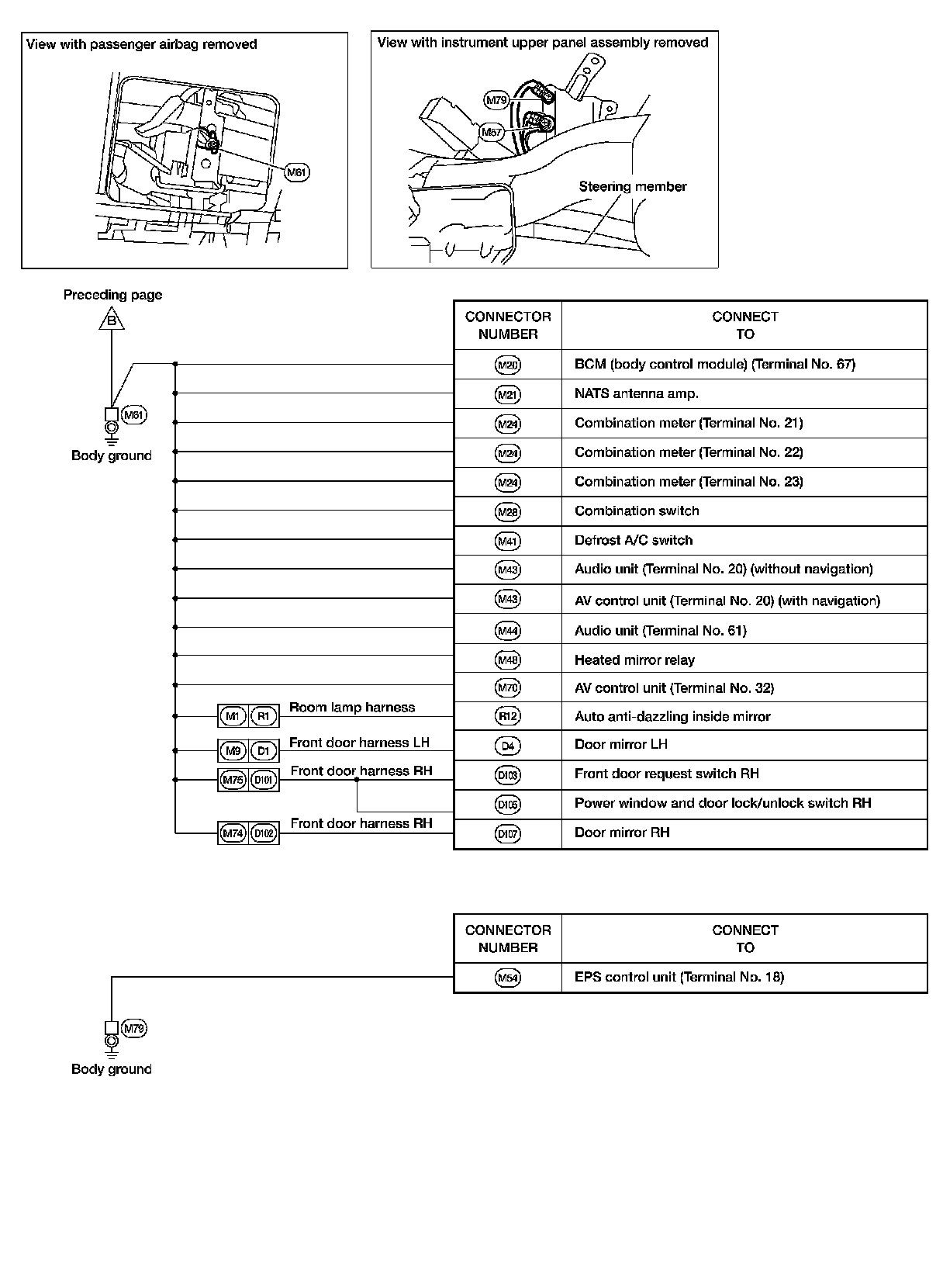

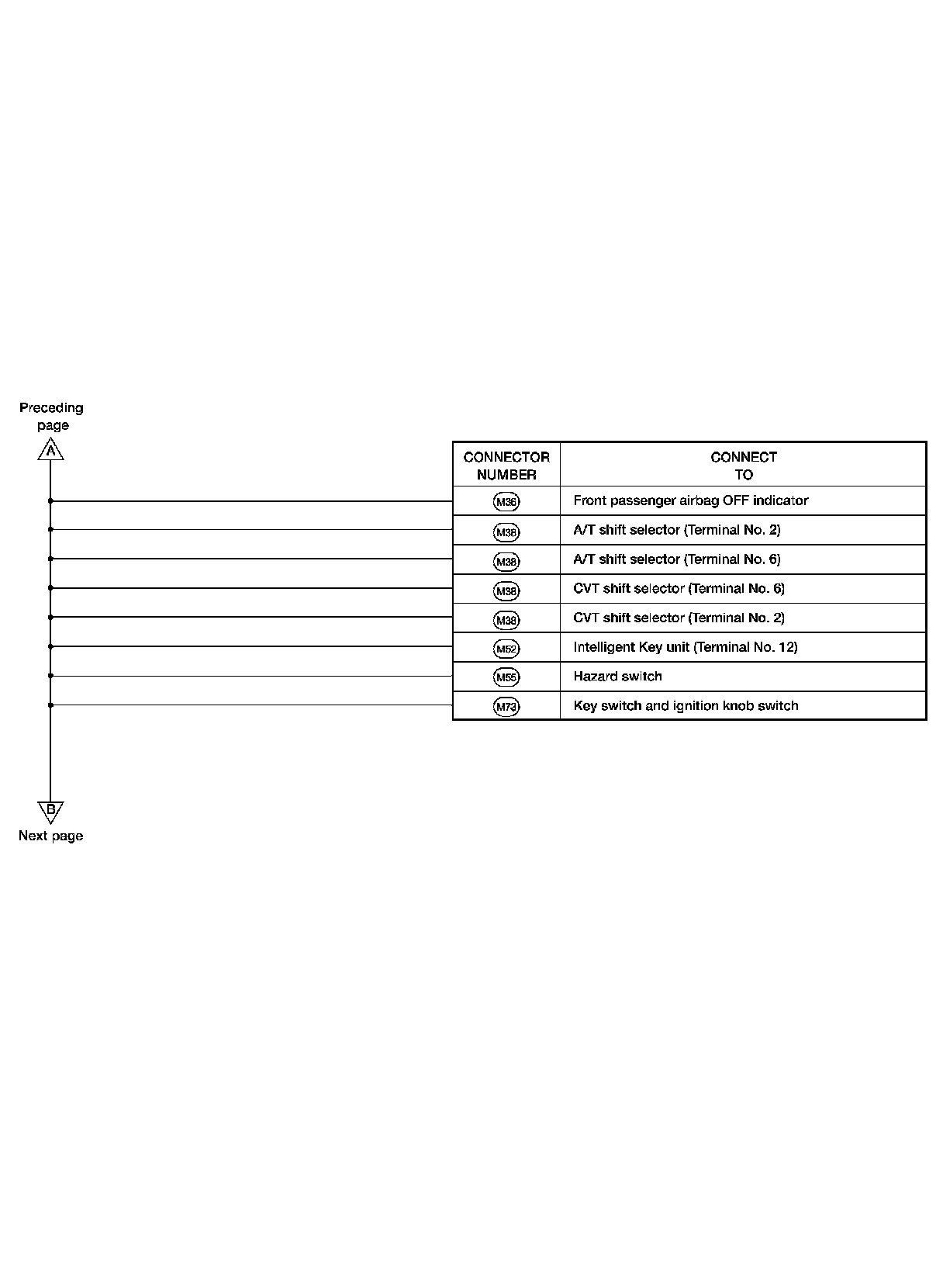

MAIN HARNESS

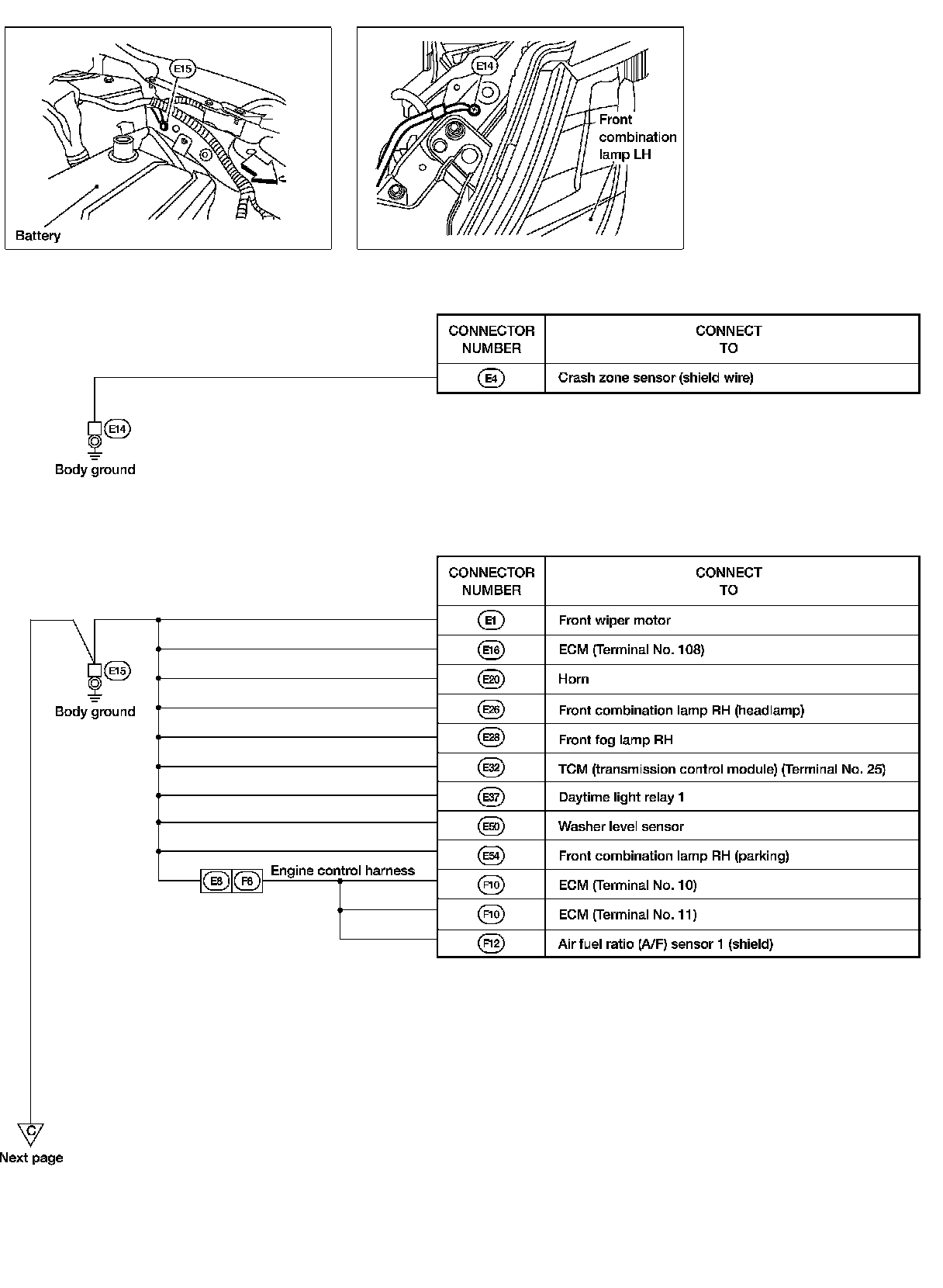

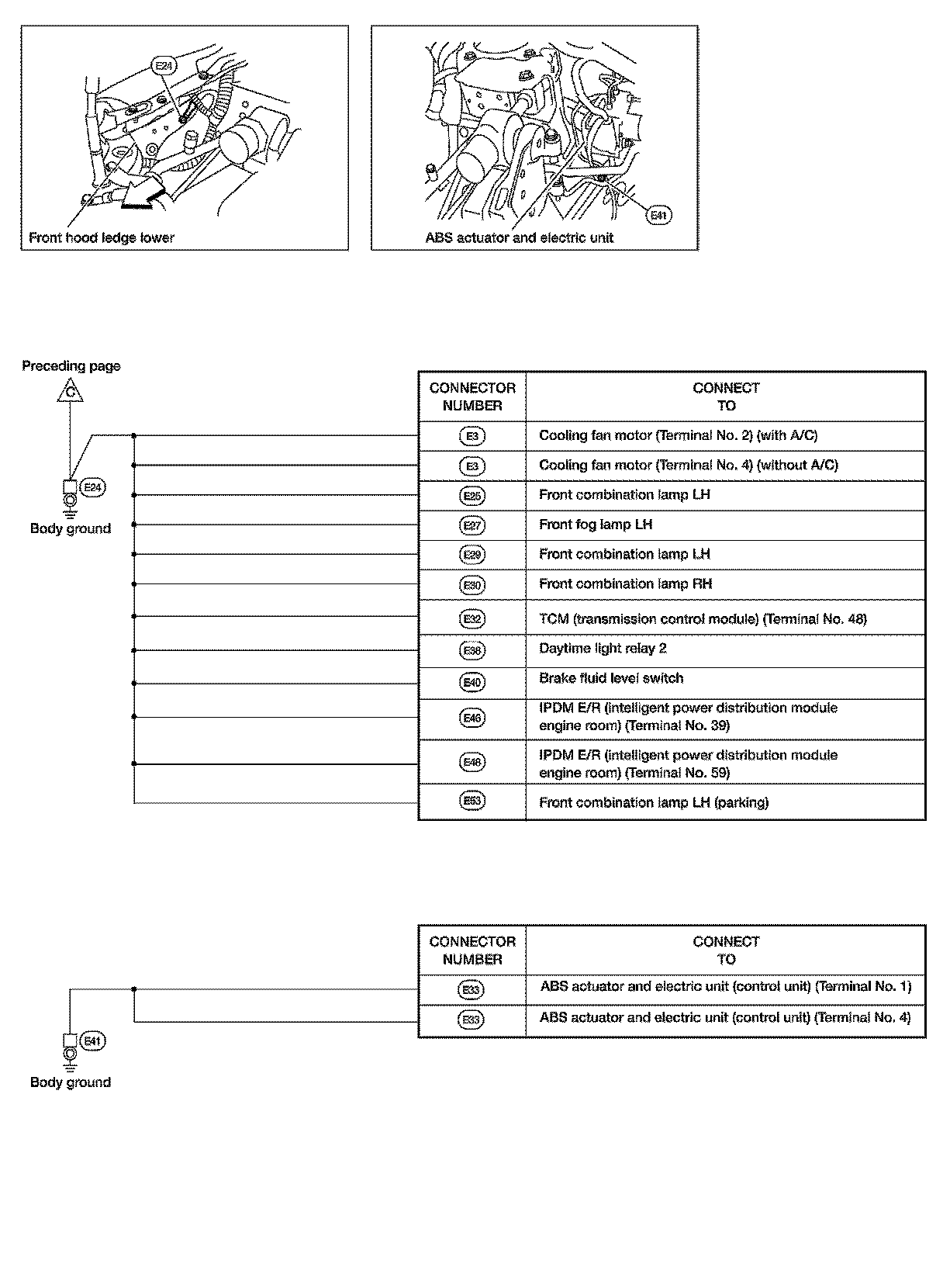

ENGINE ROOM HARNESS

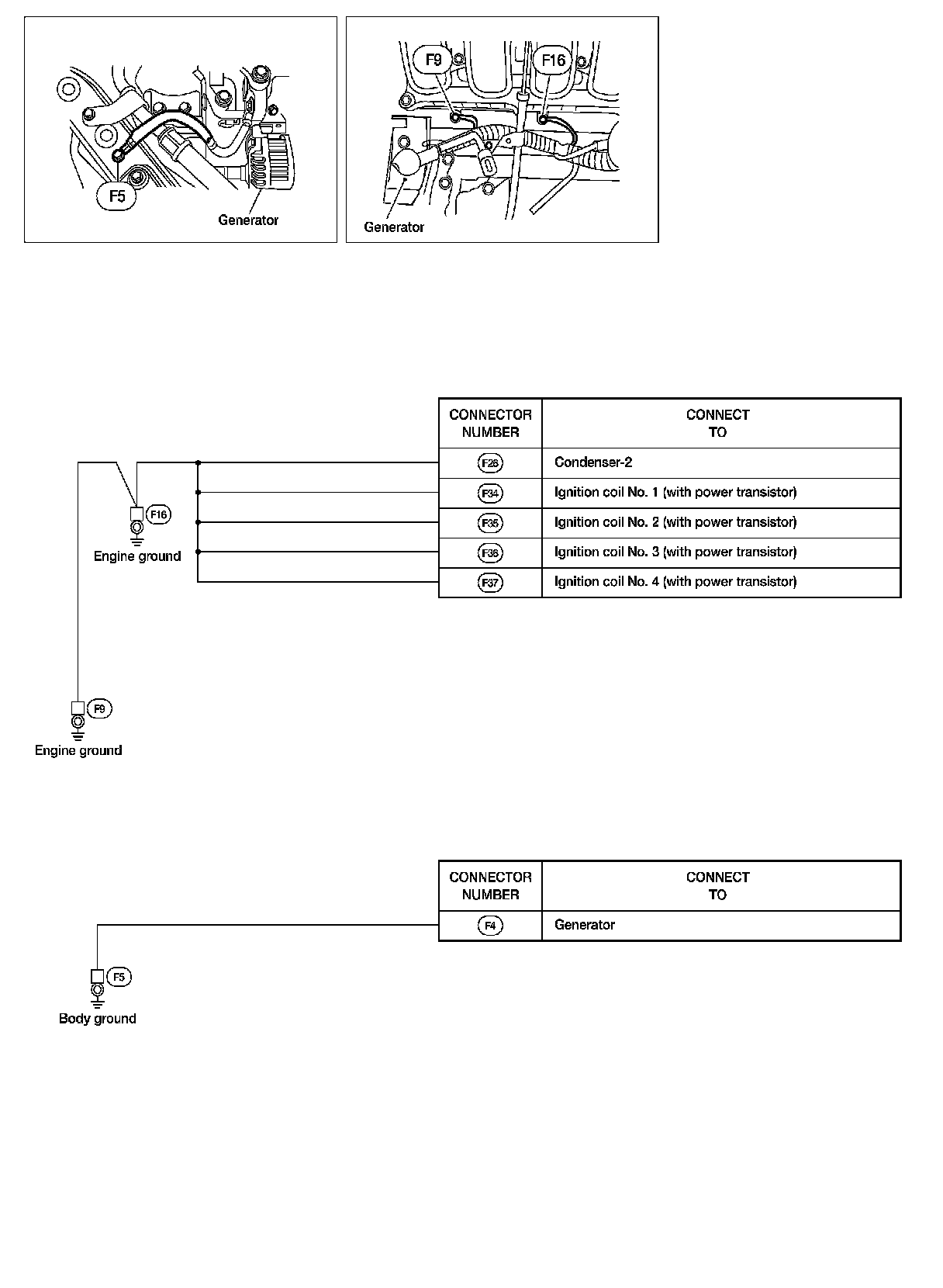

ENGINE CONTROL HARNESS

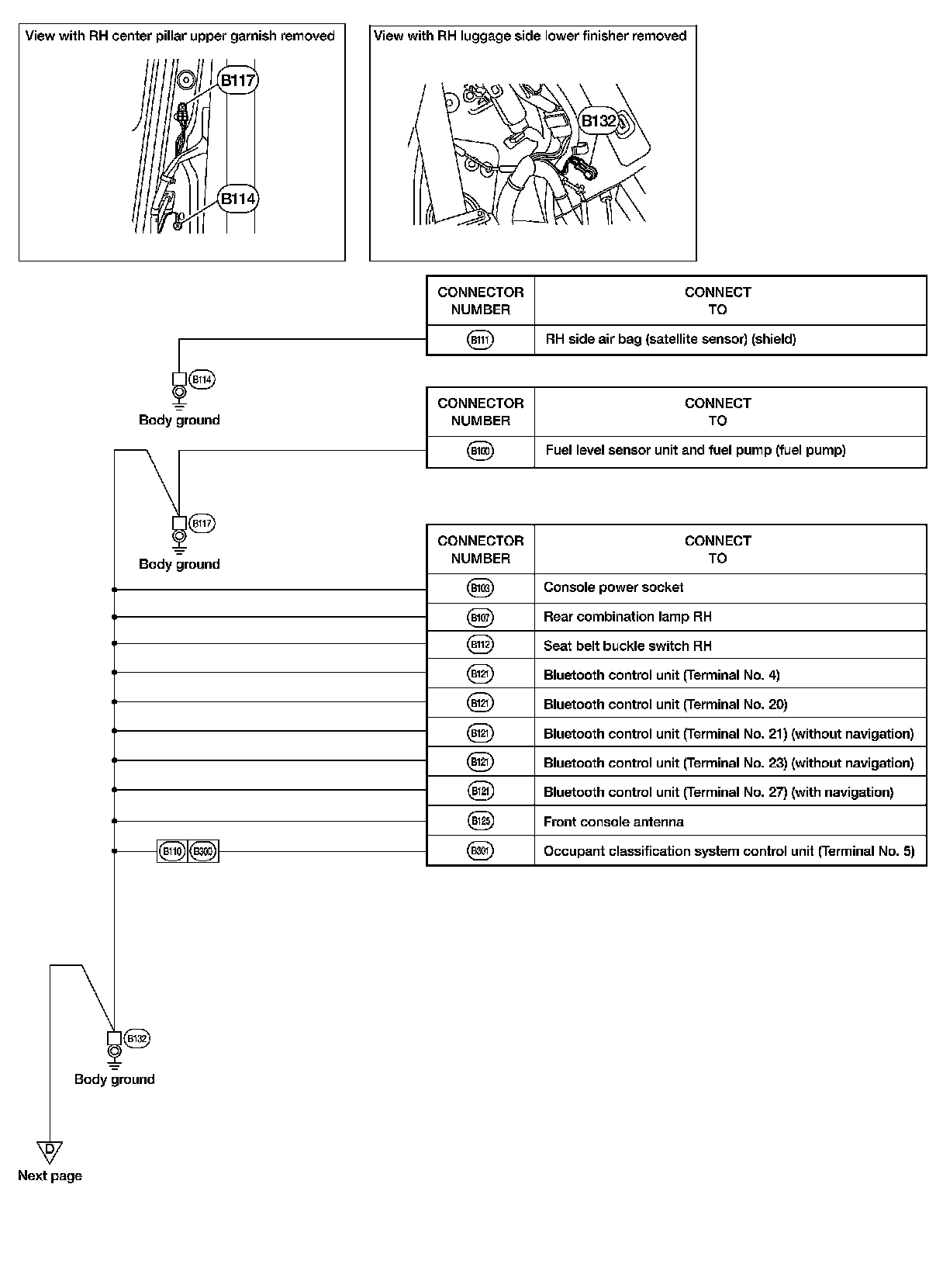

BODY HARNESS

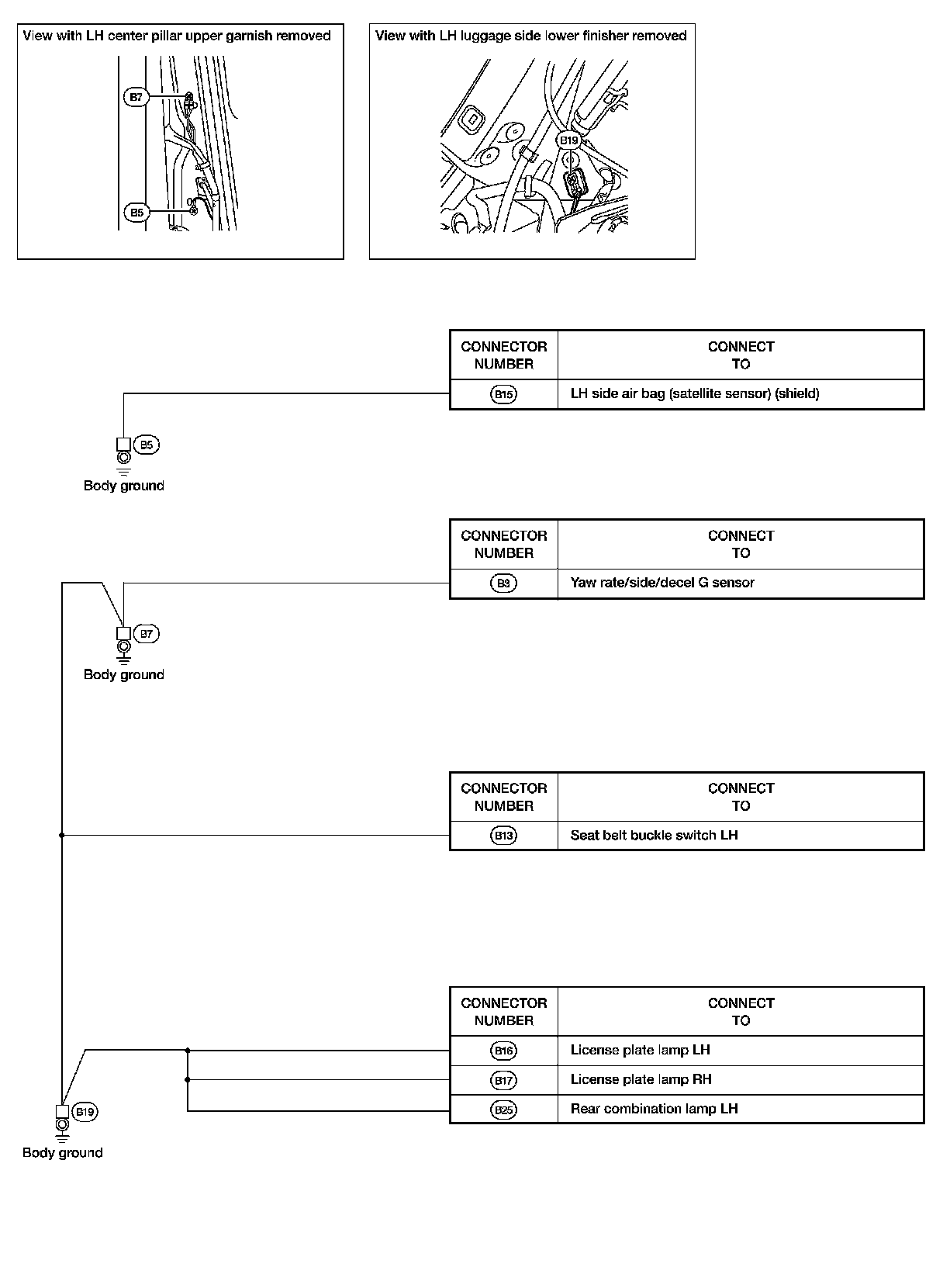

BODY NO. 2 HARNESS

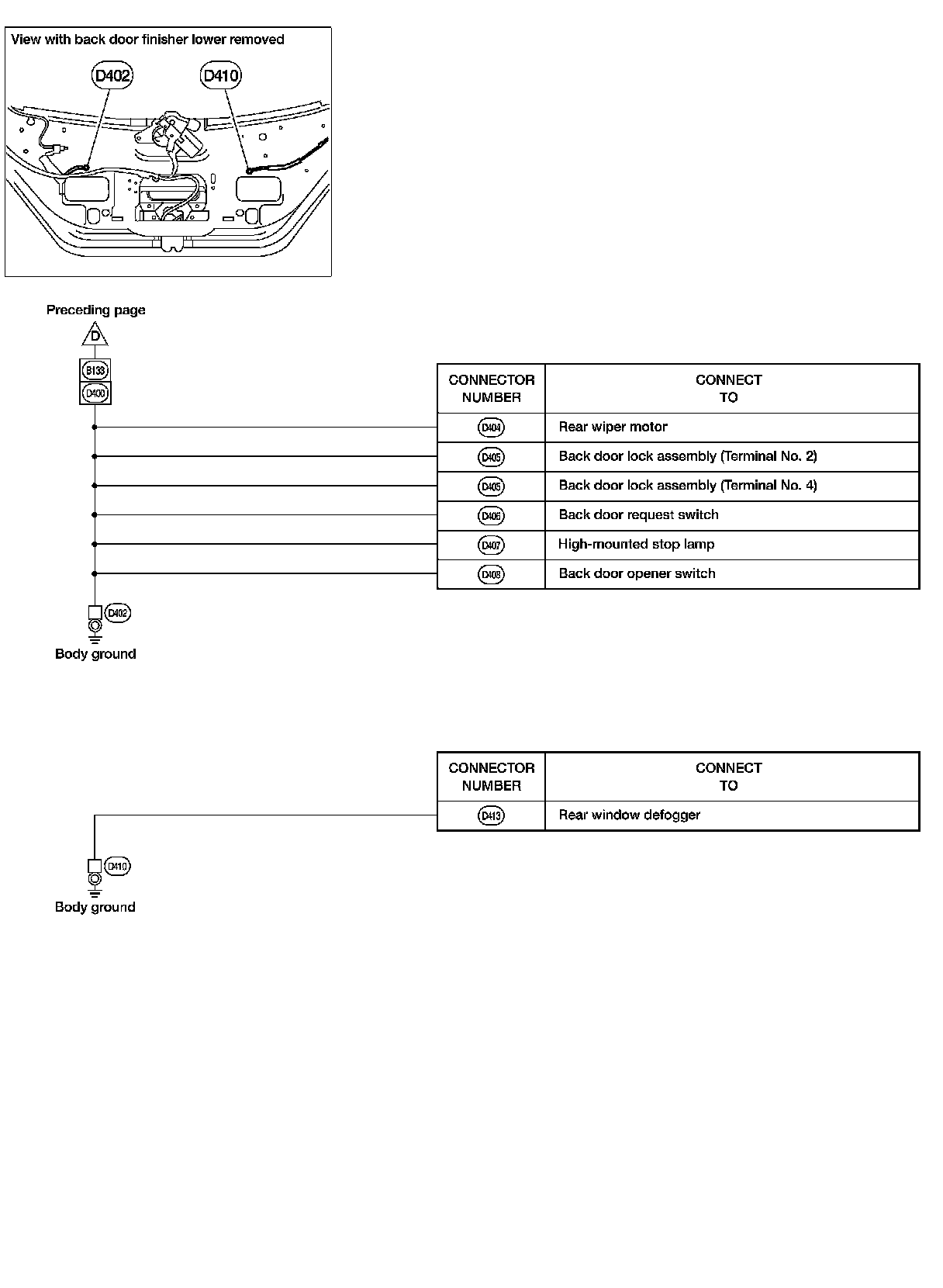

BACK DOOR HARNESS
