TCM Self-Diagnosis Does Not Activate

TROUBLE DIAGNOSIS FOR SYMPTOMS

TCM Self-Diagnosis Does Not Activate


SYMPTOM:

OD OFF indicator lamp does not come on in TCM self-diagnostic procedure even if the lamp circuit is good.

DESCRIPTION

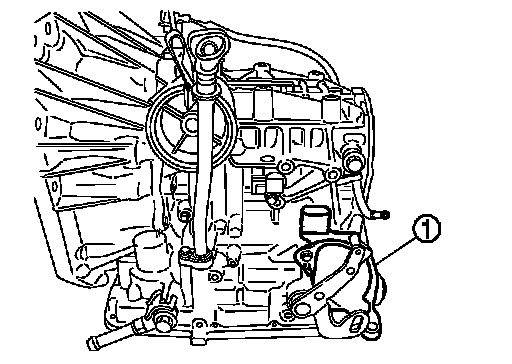

- Transmission range switch (1)
Transmission range switch assembly includes a transaxle position switch. The transaxle position switch detects the selector lever position and sends a signal to the TCM.

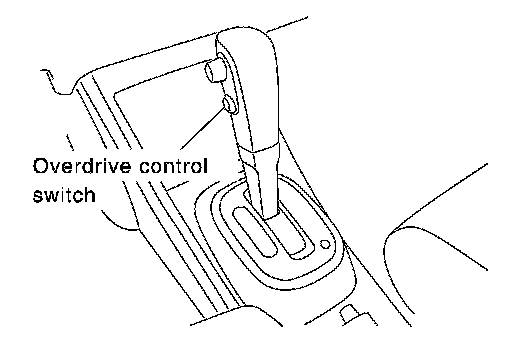

- Overdrive control switch
Overdrive control switch detects the switch position (ON or OFF)
and sends the signal via CAN communication to the TCM.

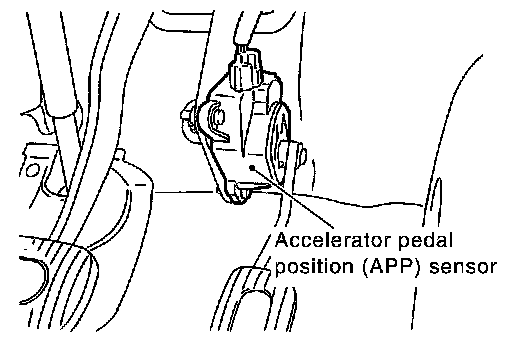

- Closed throttle position signal and wide open throttle position signal
ECM judges throttle opening based on a signal from accelerator pedal position sensor, and sends the signal via CAN communication to the TCM.

DIAGNOSTIC PROCEDURE

NOTE:
The diagnostic procedure includes inspection for the transmission range stitch, overdrive control switch, closed throttle position signal and wide open throttle position signal circuit. Refer to {LINK_TO_MANY:0000000007329432}{LINK_TO_MANY:0000000007329433}{LINK_TO_MANY:0000000007329434} .
