Electrical Diagrams




TROUBLE DIAGNOSIS FOR SYMPTOMS

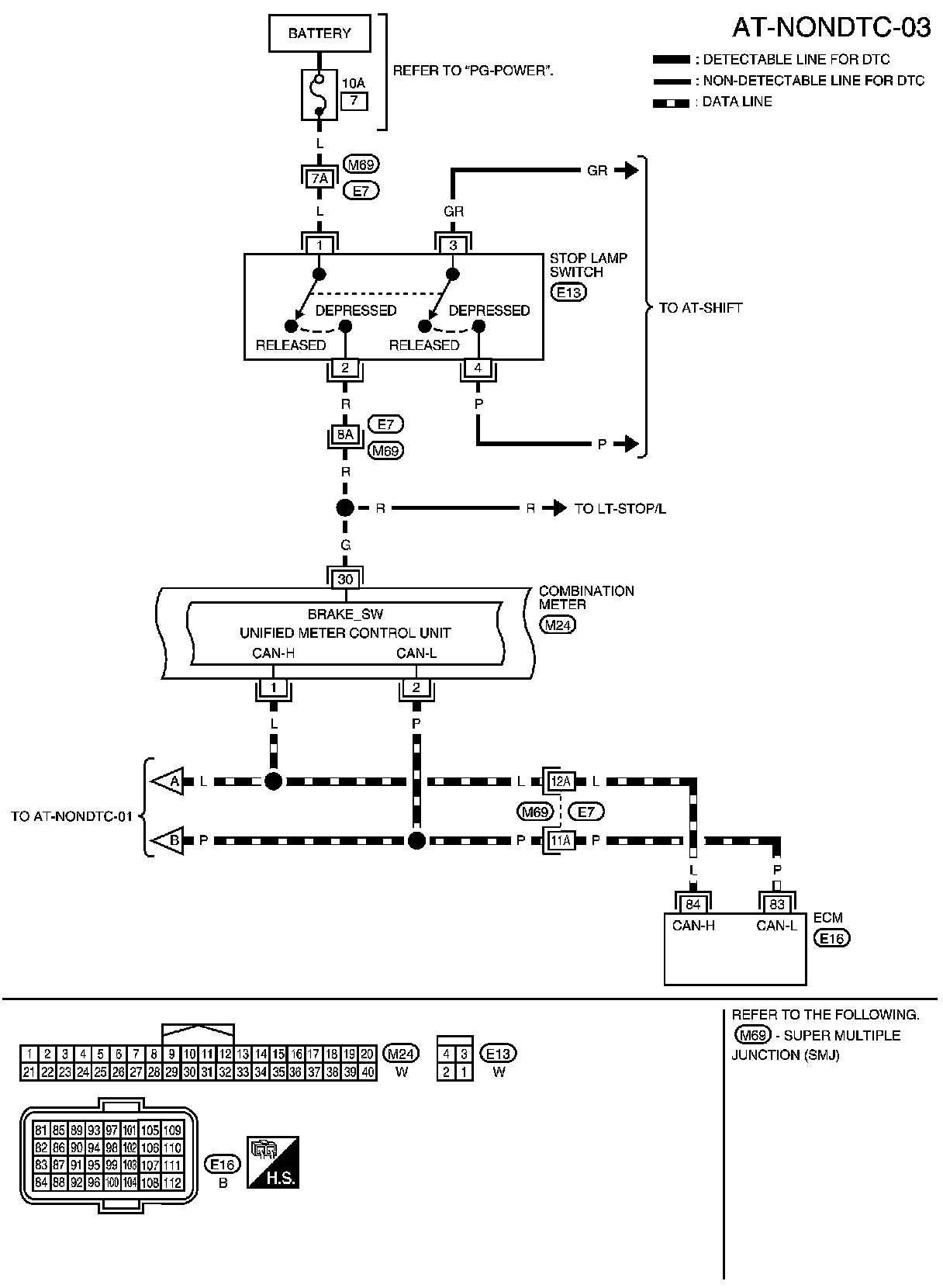

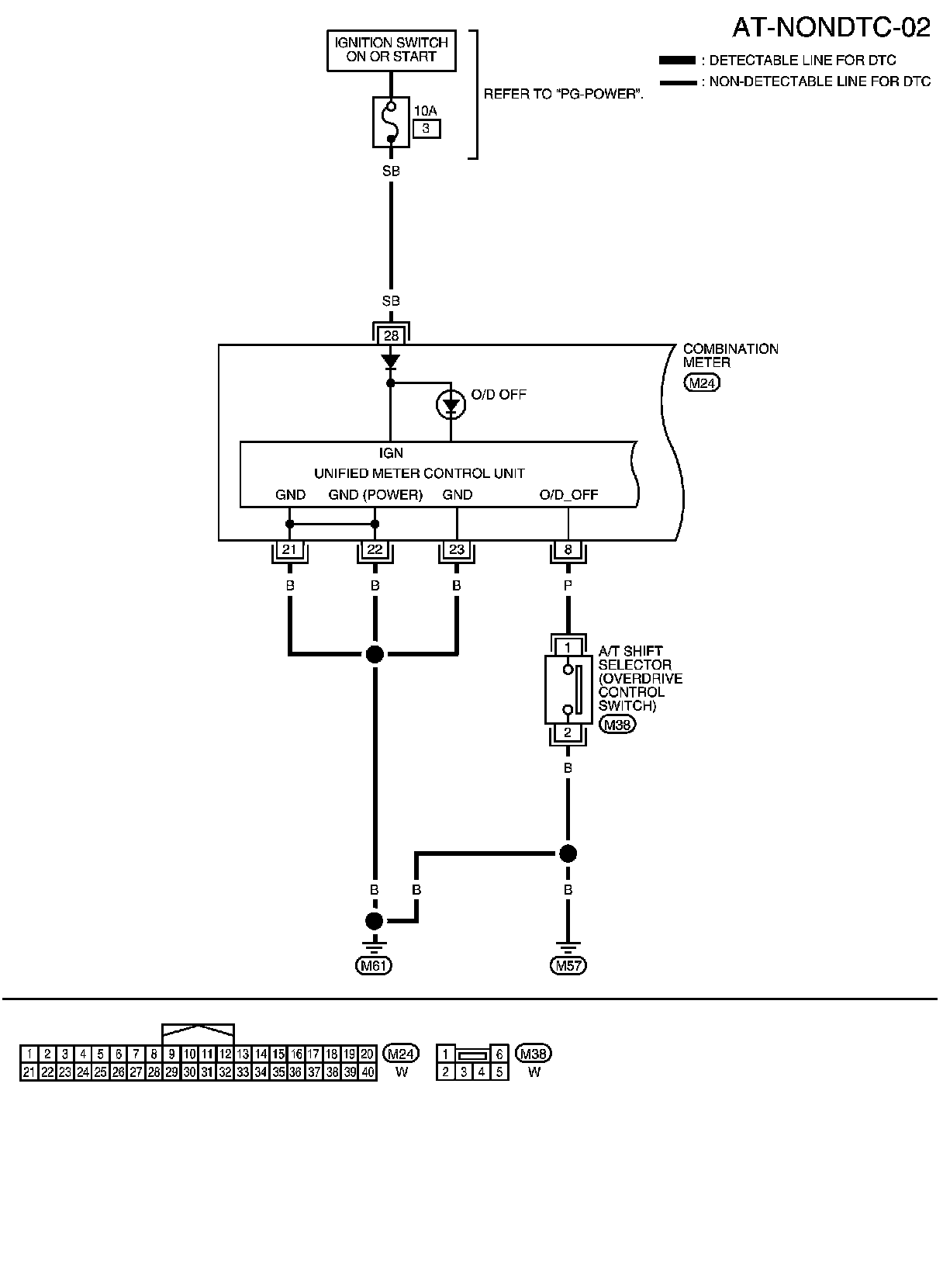

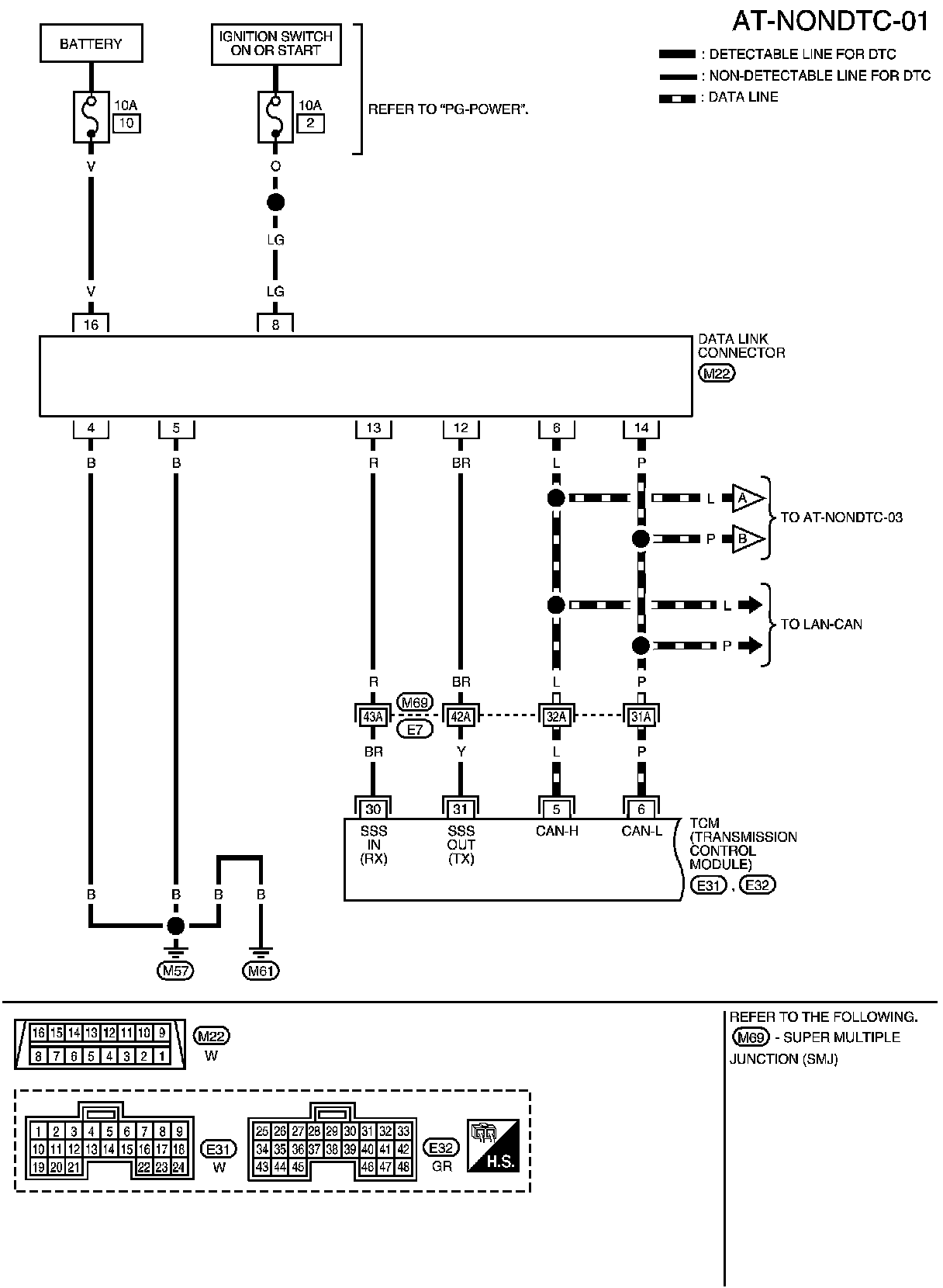

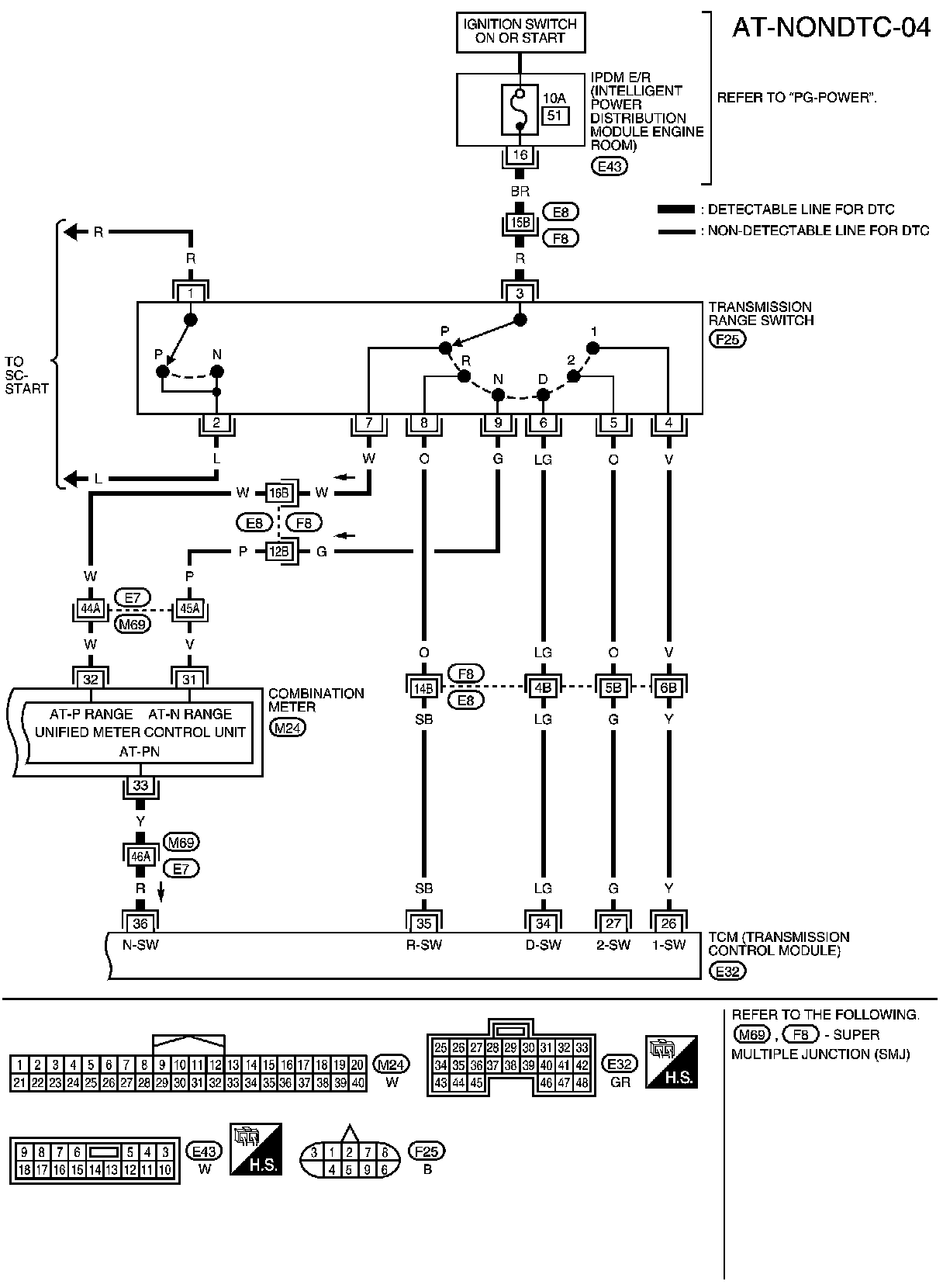

Wiring Diagram - AT - NONDTC






















TCM TERMINALS AND REFERENCE VALUES

Automatic Transmission .
