Automatic Transmission
>>

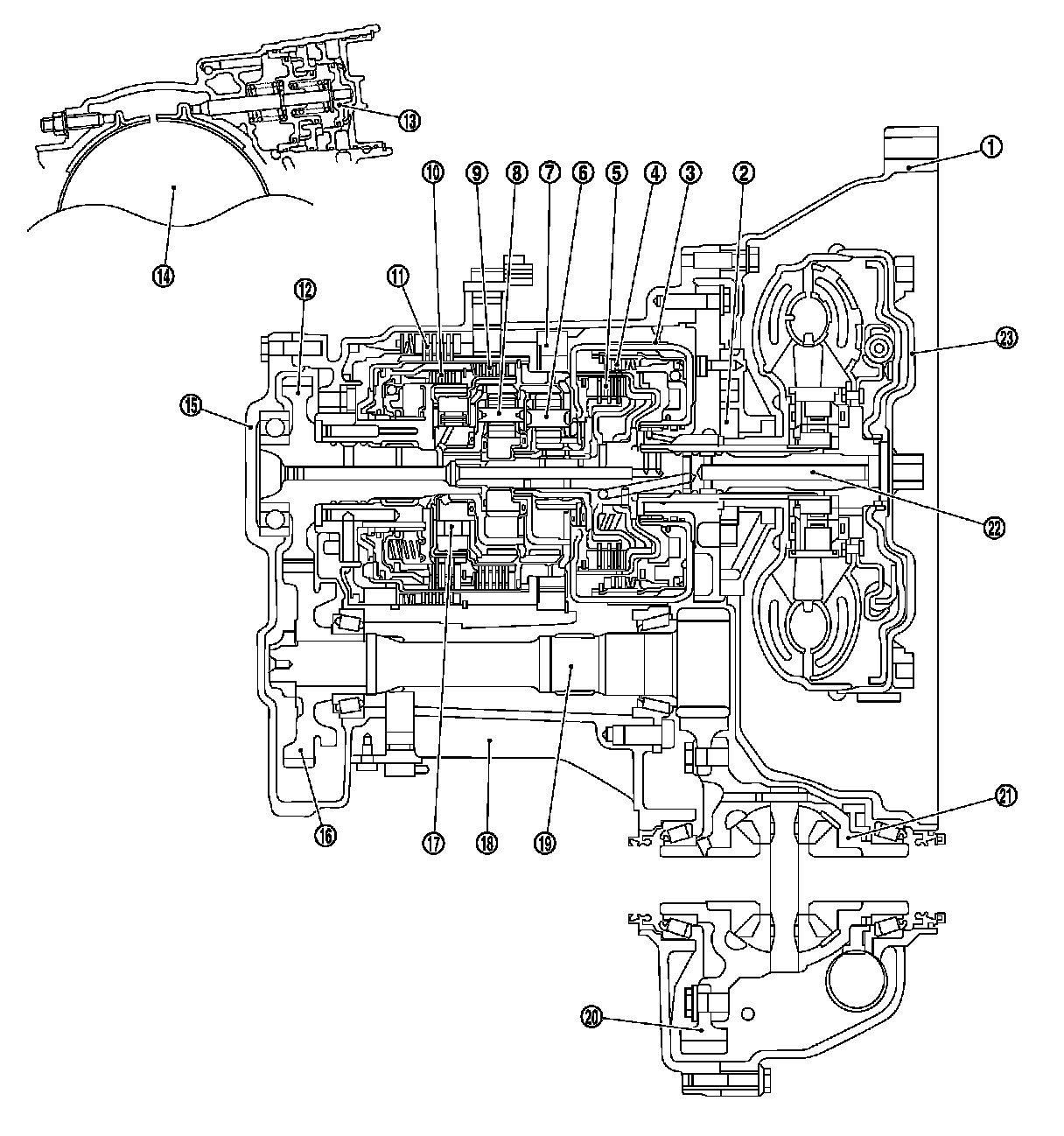

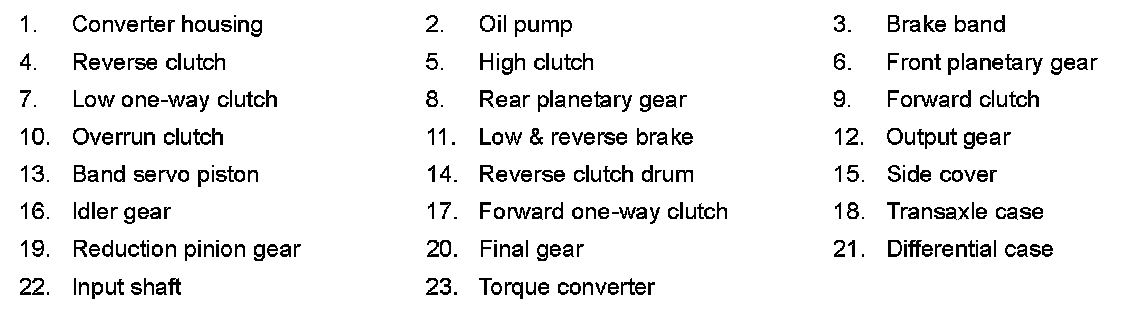

Cross-Sectional View
Cross-Sectional View
A/T CONTROL SYSTEM
Cross-Sectional View
