Removal And Installation

ACCELERATOR CONTROL SYSTEM

Removal and Installation


CAUTION:
- Do not disassemble accelerator pedal assembly. Do not remove accelerator pedal position sensor from accelerator pedal assembly.
- Avoid impact from dropping etc. during handling.
- Be careful to keep accelerator pedal assembly away from water.

REMOVAL

1.Disconnect the negative battery terminal.
2.Disconnect accelerator pedal position sensor harness connector.
3.Remove the bolts and the accelerator pedal assembly.

INSTALLATION

Installation is in the reverse order of removal.
- Insert locating pins into brake pedal bracket to position accelerator pedal assembly. Install bolts to accelerator pedal assembly.
- Align the accelerator pedal stopper to the stud bolt on the floor and insert until fully seated.

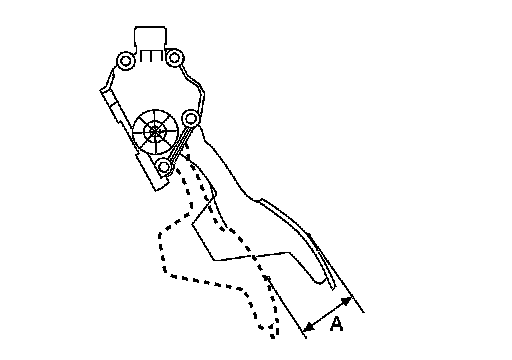

- Check that the accelerator pedal moves through the full specified distance of pedal travel.





Pedal travel (A): [1][2]Accelerator Pedal.

INSPECTION AFTER INSTALLATION

- Make sure that the accelerator pedal moves smoothly within the whole operation range.
- Make sure that the accelerator pedal securely returns to the original position.
- Perform accelerator pedal released position learning. Accelerator Pedal Released Position Learning.
