Trunk Light Bulb: Service and Repair

INTERIOR LAMP

Luggage Room Lamp, Hatch Back


BULB REPLACEMENT

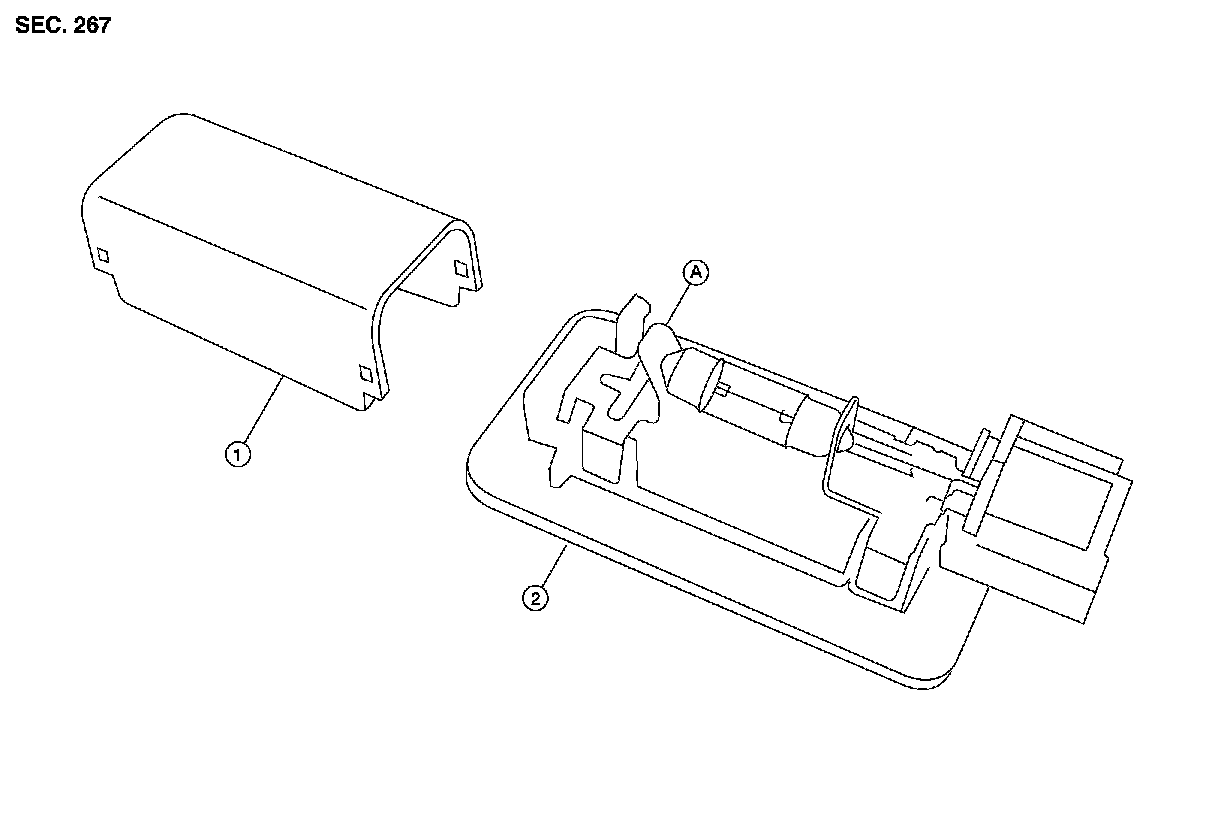

1.Remove luggage compartment lamp from the luggage side finisher LH.
2.Remove luggage compartment lamp cover.
3.Press tab A and remove the bulb.
4.Installation is in the reverse order of removal.

REMOVAL AND INSTALLATION

Removal
1.Remove luggage compartment lamp from the luggage side finisher LH.
2.Disconnect luggage compartment lamp connector.
Installation
Installation is in the reverse order of removal.
