Front Fog Lamp Does Not Illuminate (One Side)

FRONT FOG LAMP

Front Fog Lamp Does Not Illuminate (One Side)


1. CHECK BULB

Check bulb of lamp which does not illuminate.
OK or NG
OK- GO TO 2.
NG- Replace front fog lamp bulb.

2. CHECK FOG LAMP CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect IPDM E/R connector and front fog lamp connector.

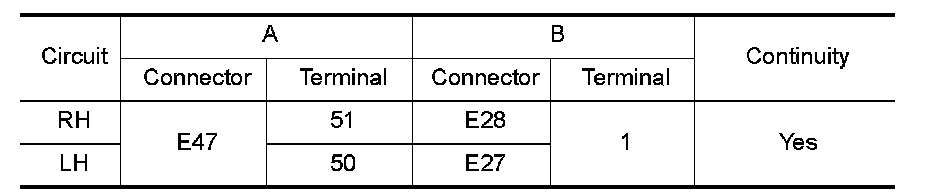

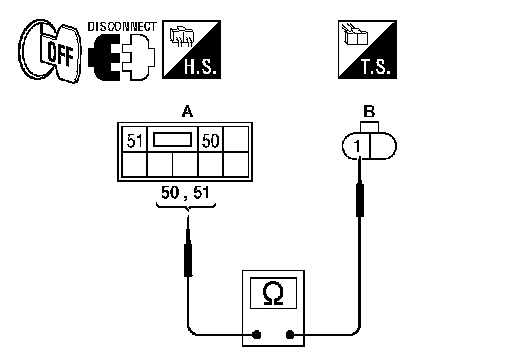

3.Check continuity between IPDM E/R harness connector (A) and front fog lamp harness connector (B).





OK or NG
OK- GO TO 3.
NG- Repair harness or connector.

3. CHECK FOG LAMP GROUND

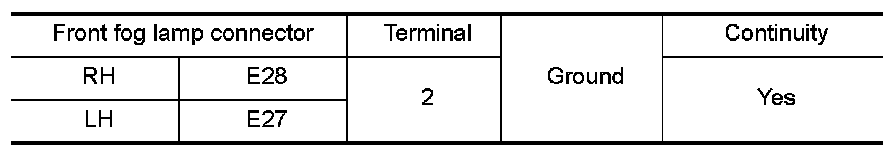

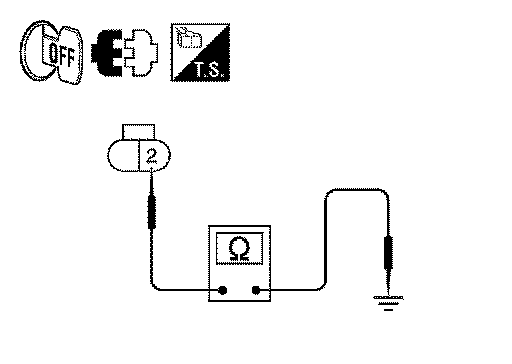

1.Check continuity between front fog lamp harness connector and ground.





OK or NG
OK- Replace IPDM E/R. Service and Repair .
NG- Repair harness or connector.
