Electrical Component Inspection




WARNING CHIME

Electrical Component Inspection

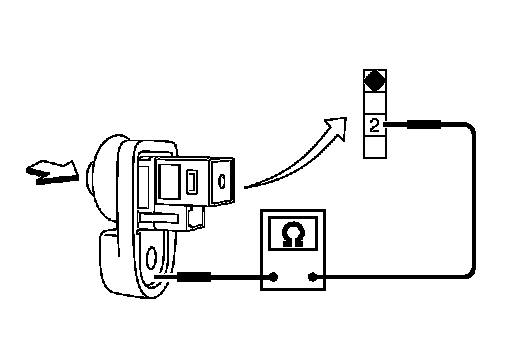

FRONT DOOR SWITCH LH

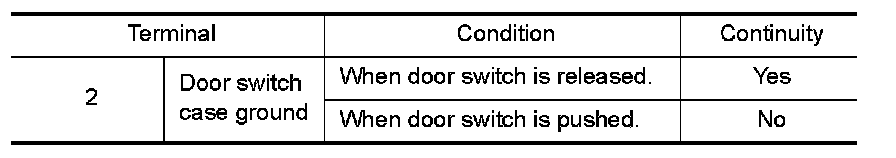

Check continuity between terminal 2 and door switch case ground.

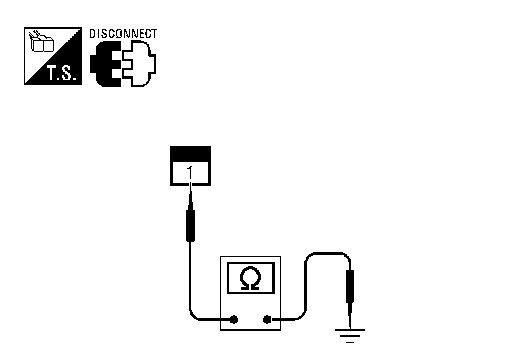

PARKING BRAKE SWITCH

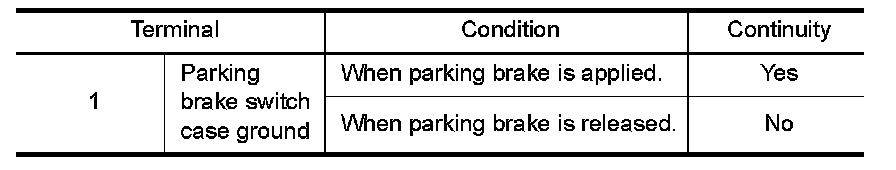

Check continuity between terminal 1 and parking brake switch case ground.
