Removal and Replacement

INSTRUMENT PANEL ASSEMBLY

Disassembly and Assembly

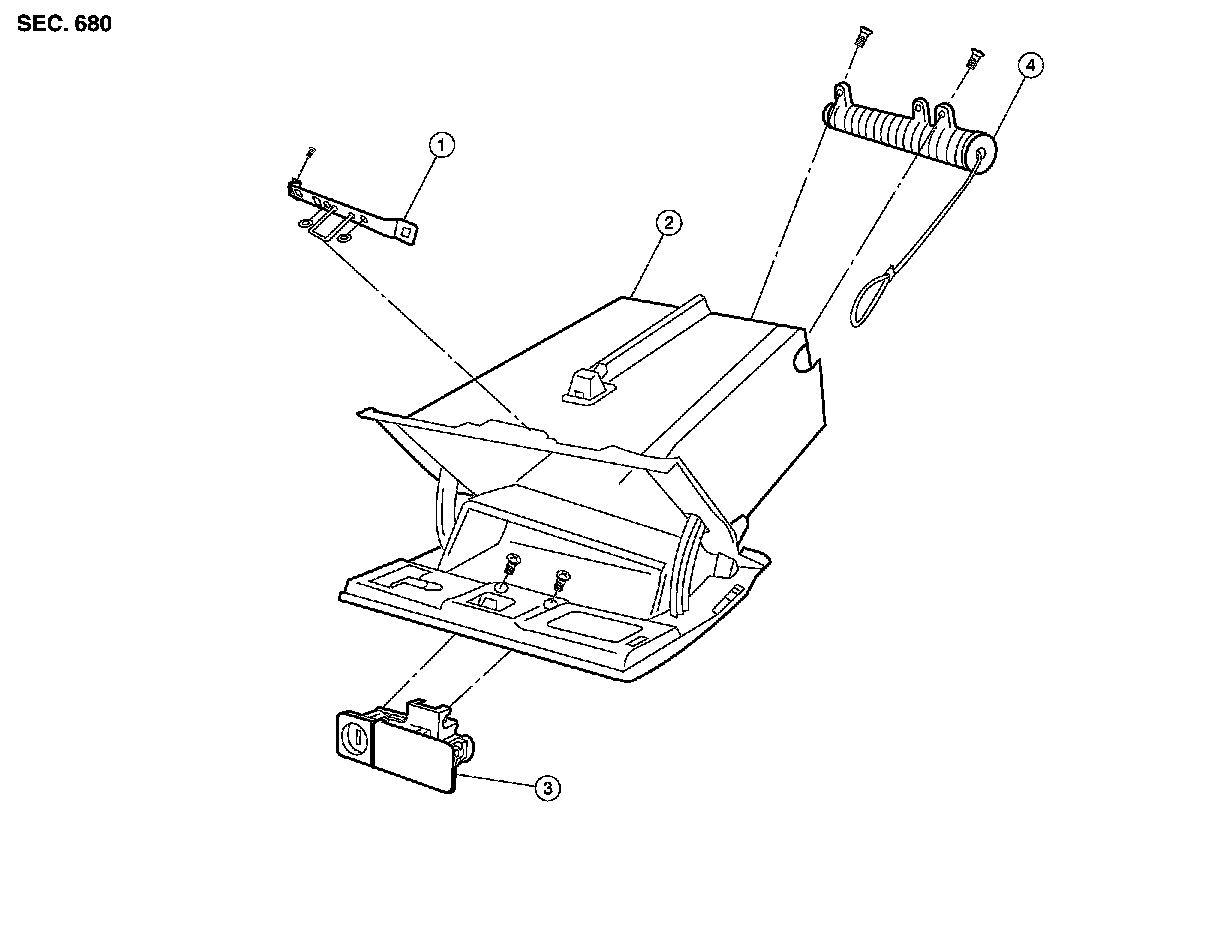

GLOVE BOX ASSEMBLY











Disassembly
1.Remove screws of damper, and then remove damper.
2.Remove screws of glove box striker, and then remove glove box striker.
3.Remove screws of glove box latch, and then remove glove box latch.
Assembly
Assembly is in the reverse order of disassembly.

CENTER CONSOLE ASSEMBLY











Disassembly
Remove the four screws, and then remove front cup holder from center console.
Assembly
Assembly is in the reverse order of disassembly.

COMBINATION METER

Disassembly

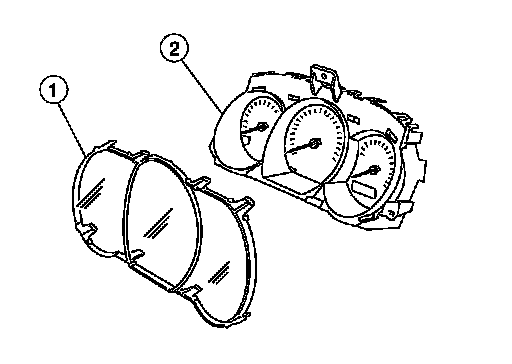

Disengage the eight tabs to separate front cover (1) from the unified meter control unit assembly (2).
Assembly
Assembly is in the reverse order of disassembly.
