Intake Manifold: Specifications

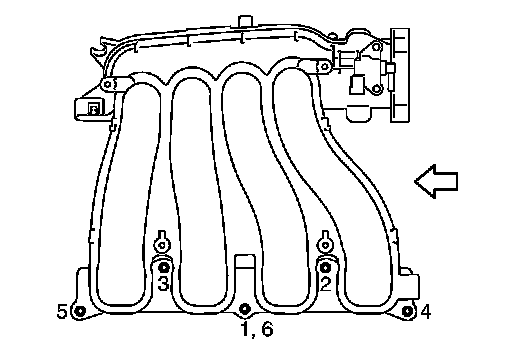

Tighten bolts in numerical order as shown.

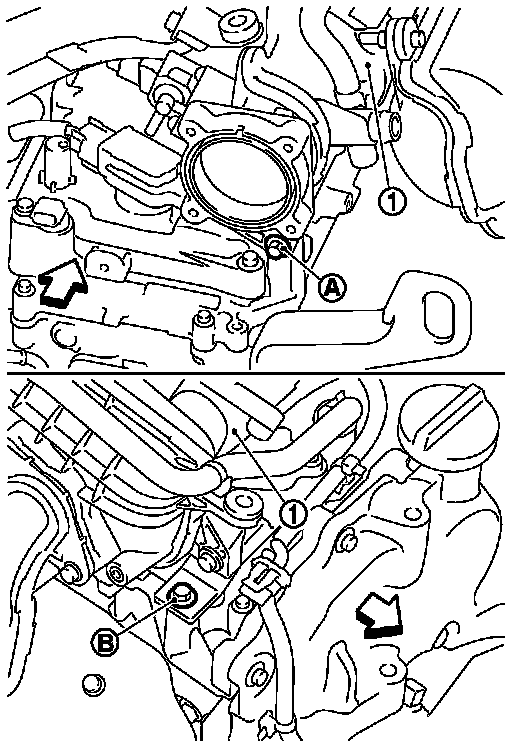

Tighten intake manifold bolt (A). Then tighten intake manifold bolt (B).






Intake manifold bolt (A): 19.6 Nm (2.0 kg-m, 14 ft-lb)
Intake manifold bolt (B): 19.6 Nm (2.0 kg-m, 14 ft-lb)
