Engine System Inspection

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS

Engine System Inspection


1. SELF-DIAGNOSIS RESULT CHECK

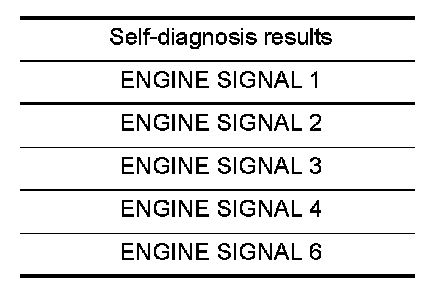

Check self-diagnosis results.





Is the above displayed in the self-diagnosis display items?
YES- GO TO 2.
NO- Inspection End.

2. ENGINE SYSTEM INSPECTION

1.Perform ECM self-diagnosis and repair as necessary.
2.Perform ABS actuator and electric unit (control unit) self-diagnosis again.
OK or NG
OK- Inspection End.
NG- Repair as necessary.
