Removal and Installation

REAR SEAT

Removal and Installation


CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

60:40 SPLIT FOLD DOWN SEAT - HATCHBACK

Removal
1.Remove the tonneau board. Refer toService and Repair.
2.Remove the luggage floor center board. Service and Repair.

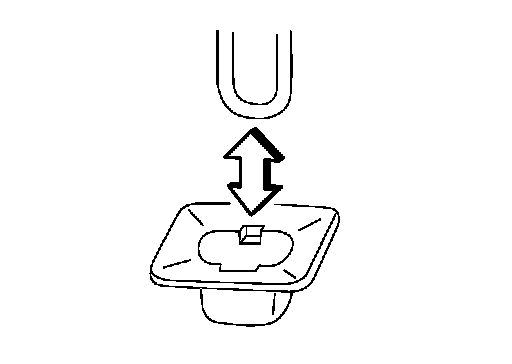

3.Pull seat cushion up, then remove the seat cushion from the seat cushion hook.
NOTE:
- Always replace the seat cushion hooks when the seat cushion has been released.

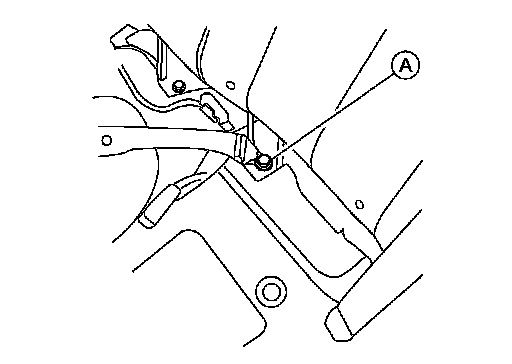

4.Remove the center seatbelt anchor bolt (A) from under the seat.

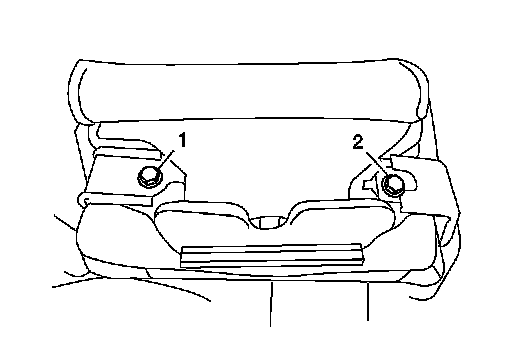

5.Remove the seatback bolts in the reverse order as shown from the right rear seat back brackets.

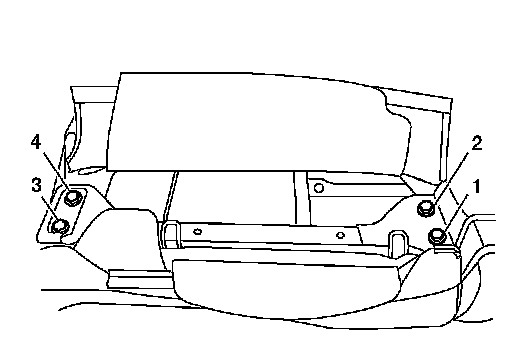

6.Remove the seatback bolts in the reverse order as shown from the left rear seat back brackets.
7.Remove the seatback from the vehicle.
8.Remove the kicking plate rear inner. Component.

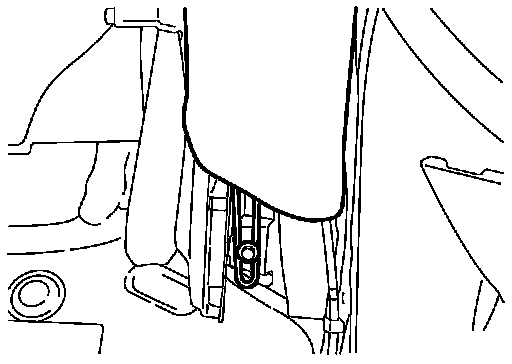

9.Remove the bolt under the seatback side.

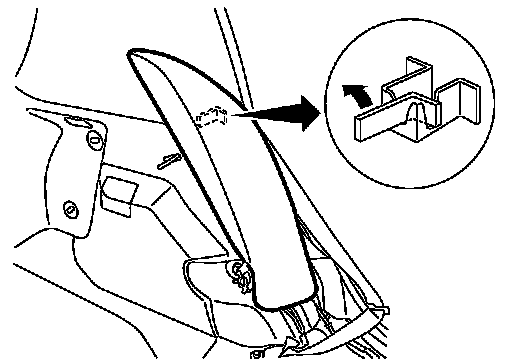

10.Pull seatback side up, and then remove seatback side.
11.Remove the rear seatback center bracket bolts and the rear seatback center bracket.

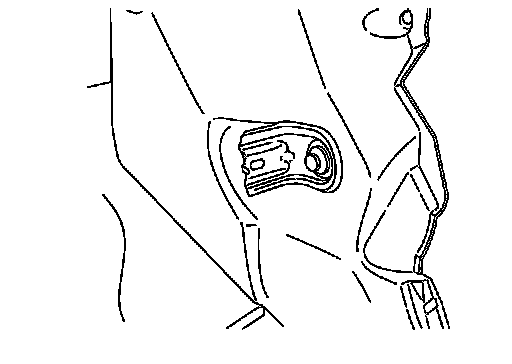

12.Remove the rear seatback side bracket bolt and the rear seatback side bracket.
13.Remove the rear seatback finisher. Component Parts Drawing.
14.Remove the rear seat striker bolts and the rear seat striker.
Installation
Installation is in the reverse order of removal.
- When installing the rear seatback side bracket perform the following procedure:





1.Install the rear seatback side bracket, temporarily tighten the seatback assembly and rear seatback side bracket bolt.
2.Lift to fold up seatback assembly. Be sure to lock seatback assembly to rear seat striker.
3.Tighten the rear seatback side bracket bolt.
NOTE:
Confirm that side hinge bracket location pin is set to the hole on the seatback backside.





- Install the left rear seat back brackets and seatback bolts.





- Install the right rear seat back brackets and the rear seat back bracket bolts.
