Front Door Lock Actuator RH Check

POWER DOOR LOCK SYSTEM

Front Door Lock Assembly RH (Actuator) Check


1. CHECK FRONT DOOR LOCK ASSEMBLY RH (ACTUATOR) HARNESS

1.Turn ignition switch OFF.
2.Disconnect BCM and front door lock assembly RH (actuator).

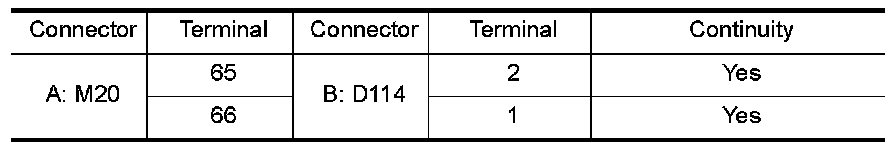

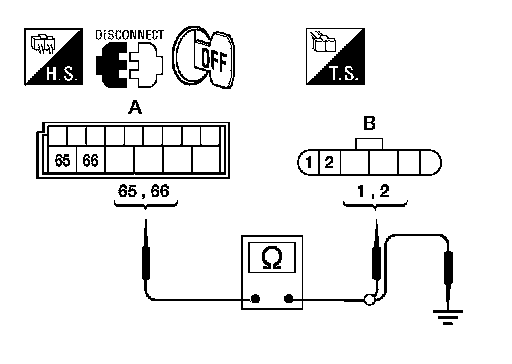

3.Check continuity between BCM connector (A) M20 terminals 65, 66 and front door lock assembly RH (actuator) connector (B)
D114 terminals 2, 1.

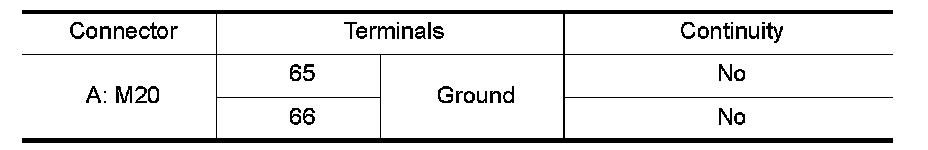

4.Check continuity between BCM connector (A) M20 terminals 65, 66 and body ground.





OK or NG
OK- GO TO 2
NG- Repair or replace harness.

2. CHECK FRONT DOOR LOCK ASSEMBLY RH SIGNAL

1.Reconnect BCM.

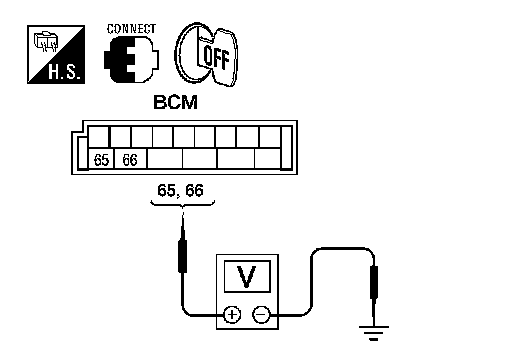

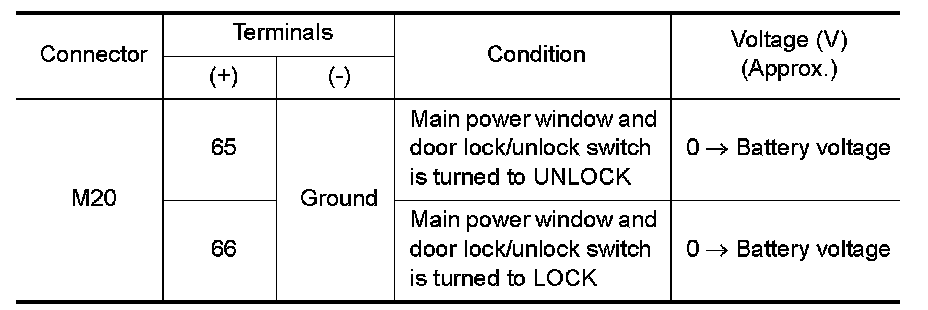

2.Check voltage between BCM connector M20 terminals 65, 66
and ground.










OK or NG
OK- Replace front door lock assembly RH (actuator). Front Door Lock .
NG- Replace BCM. Service and Repair .
