Home
>>
Nissan-Datsun
>>
2012
>>
Versa Hatchback L4-1.8L (MR18DE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Description and Operation
>>
Power Door Lock System
>>
Schematic
>>
Without Intelligent Key System
Without Intelligent Key System

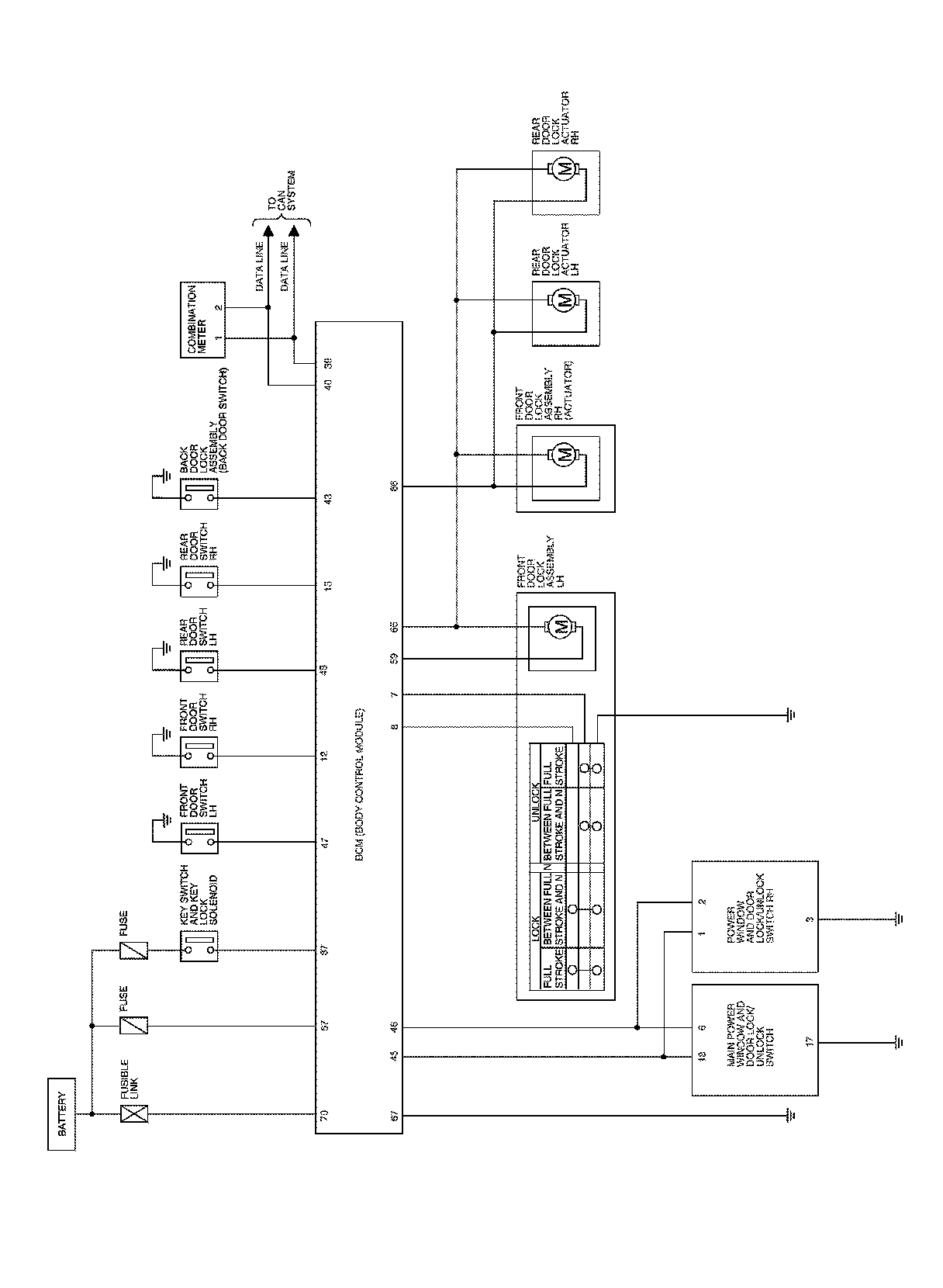

POWER DOOR LOCK SYSTEM
Schematic
WITHOUT INTELLIGENT KEY SYSTEM
