Keyfob Function (Lock) Check

REMOTE KEYLESS ENTRY SYSTEM

Keyfob Function (Lock) Check

NOTE:
The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II
User Guide for additional information.

1. CHECK KEYFOB FUNCTION

With CONSULT

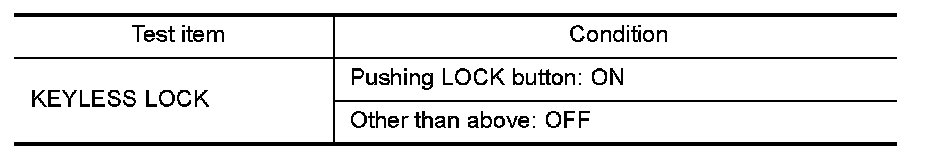

Check keyfob function in "DATA MONITOR" mode with CONSULT. When pushing lock button of keyfob, the corresponding monitor item should be turned as follows.





OK or NG
OK- Keyfob is OK.
NG- Replace keyfob.
