Back Door Lock




BACK DOOR LOCK

Wiring Diagram - B/DOOR

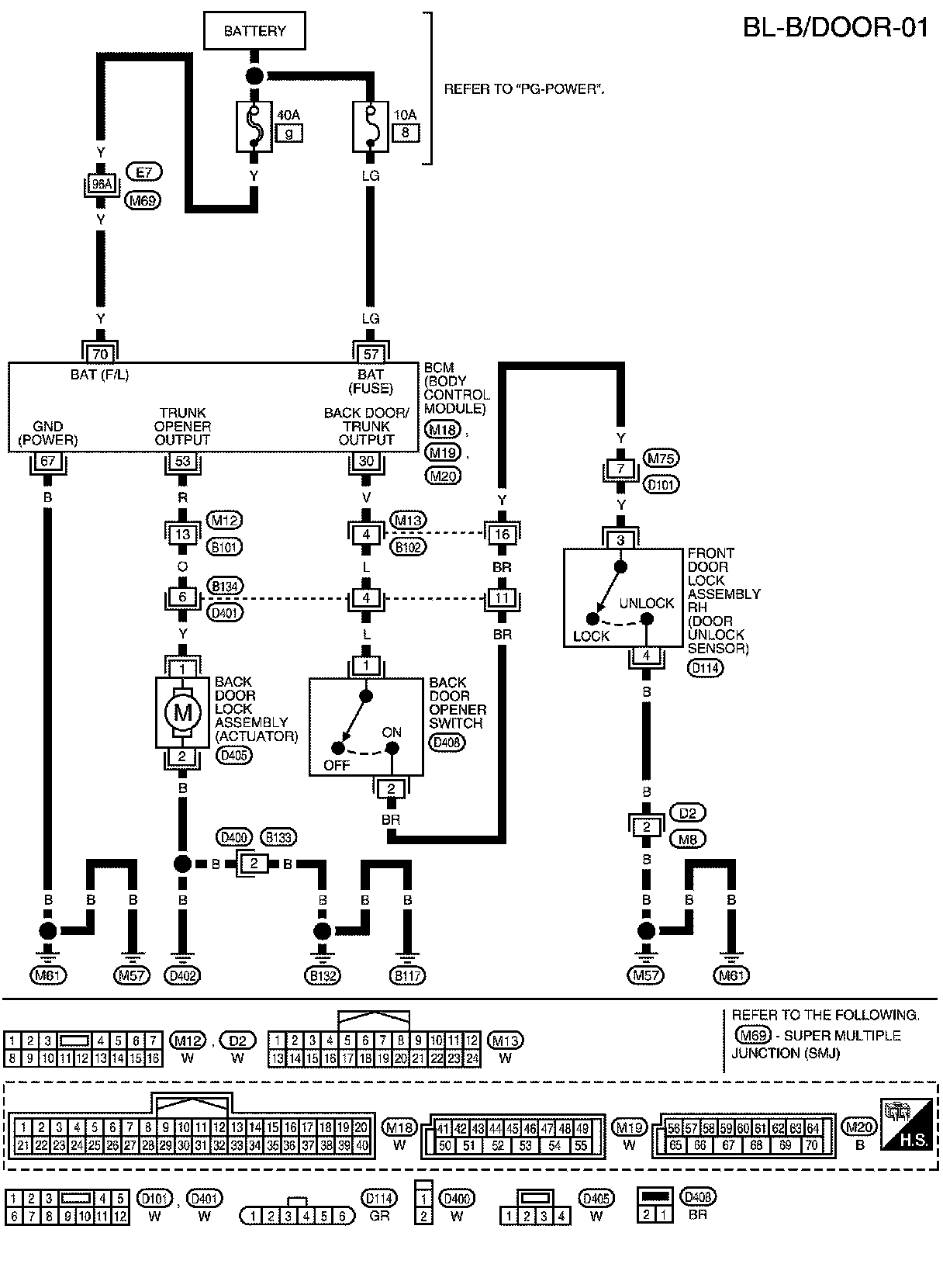

WITHOUT INTELLIGENT KEY SYSTEM

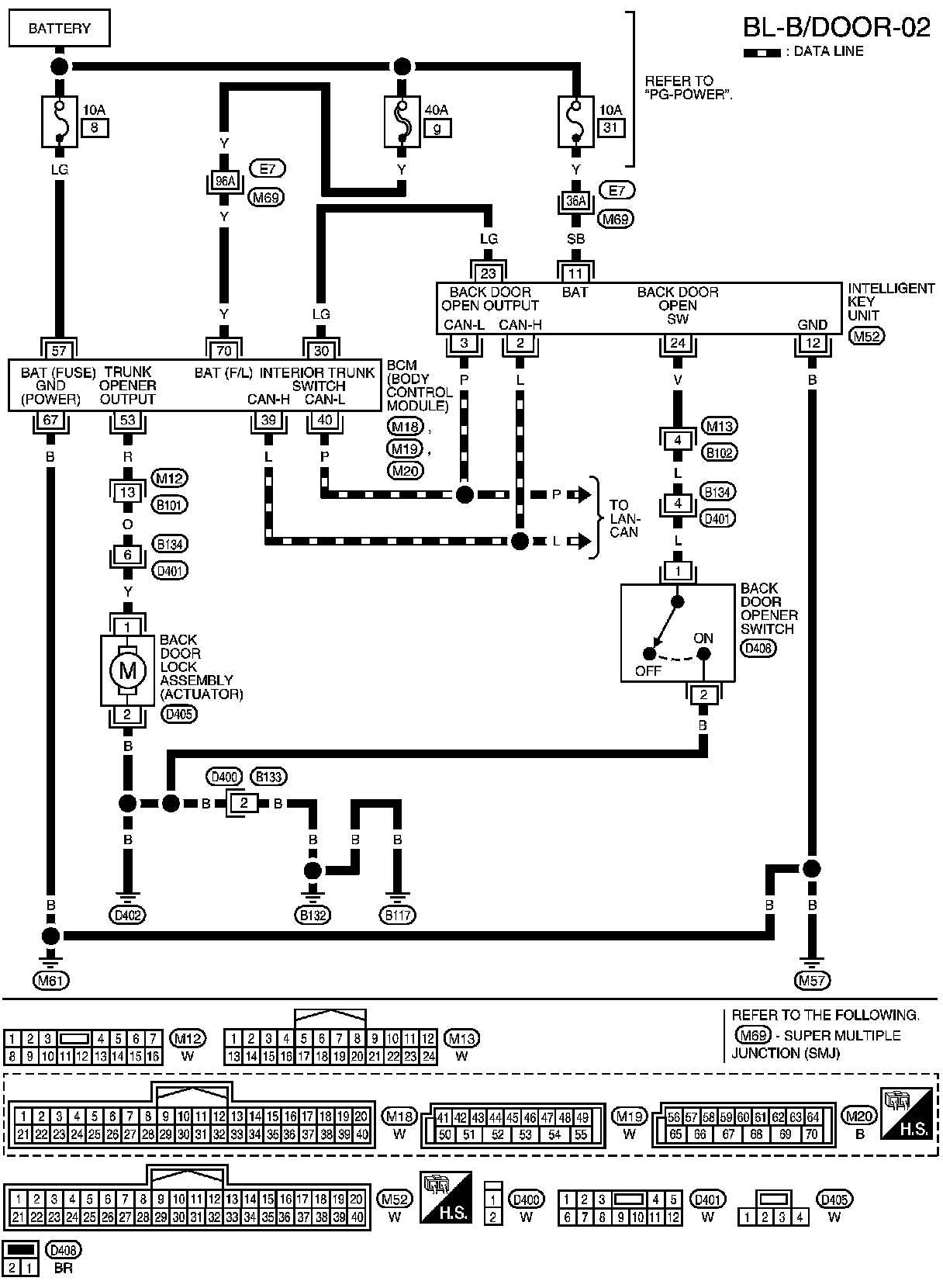

WITH INTELLIGENT KEY SYSTEM
