BL - B/DOOR





BACK DOOR LOCK


Wiring Diagram - B/DOOR -

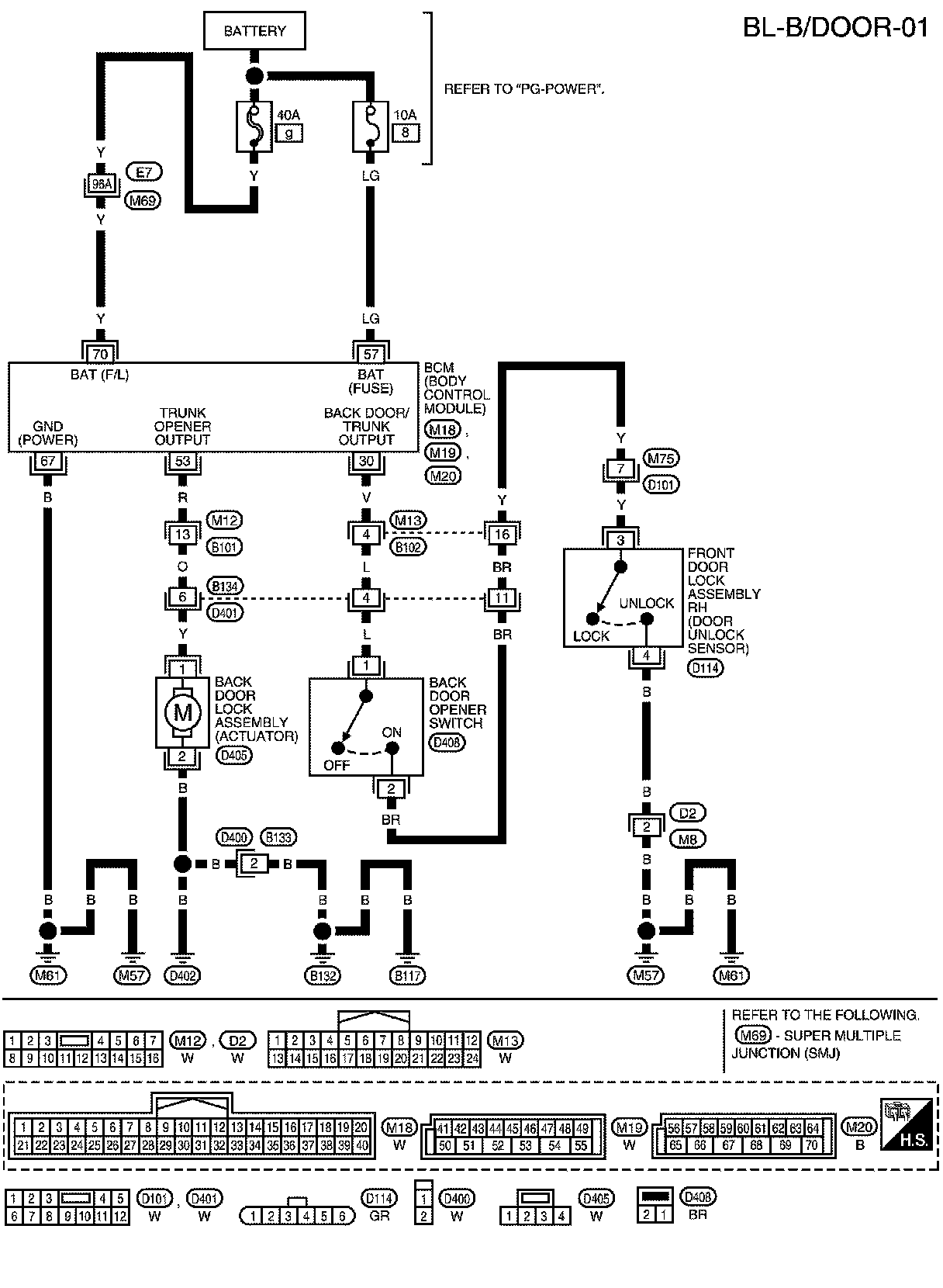

WITHOUT INTELLIGENT KEY SYSTEM

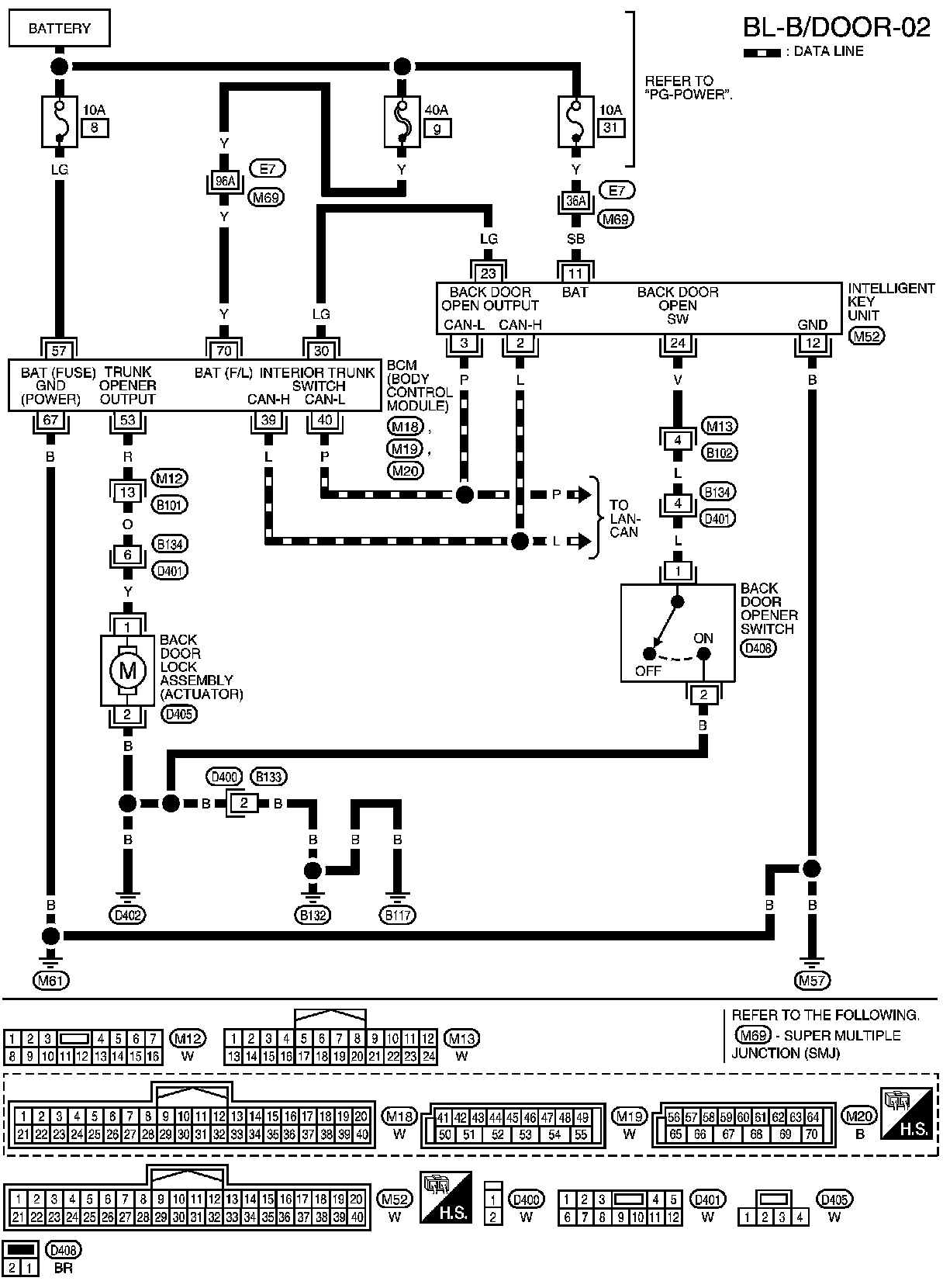

WITH INTELLIGENT KEY SYSTEM
