Fuel Door Release Actuator: Service and Repair

FUEL FILLER LID OPENER


Removal and Installation of Fuel Filler Lid Opener


REMOVAL
1. Remove trunk side finisher (RH). .

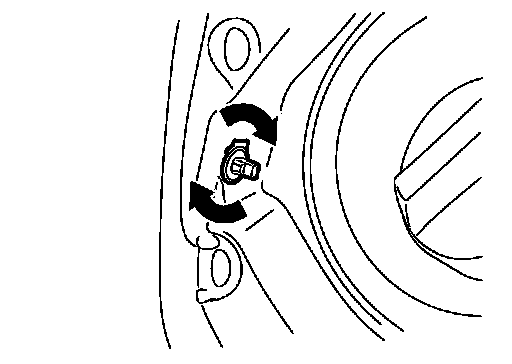

2. Remove fuel filler lock.
3. Remove front kicking plate and rear kicking plate. .
4. Remove rear cushion assembly. .





5. Remove fuel filler lid opener cable clip from the vehicle.





6. Remove the bolts and the fuel filler lid opener.
7. Remove the fuel filler lid opener cable.

INSTALLATION
Installation is in the reverse order of removal.
