Front Door Panel: Service and Repair

DOOR FINISHER

Removal and Installation

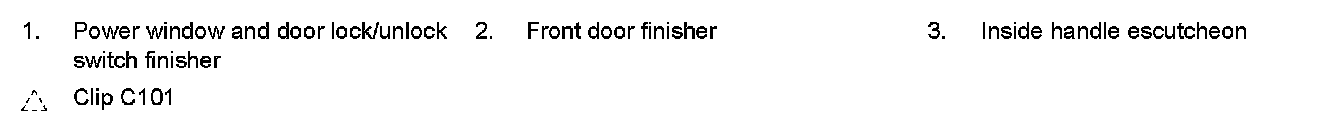

FRONT DOOR











Removal
1.Open front door and front door window.

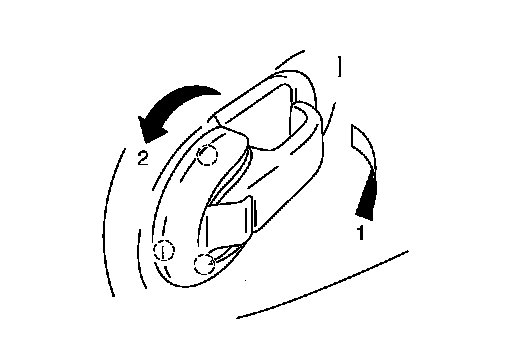

2.Release the front door inside handle escutcheon pawls, then slide the escutcheon rearward to remove from front door finisher.
Broken circle indicates : Pawl

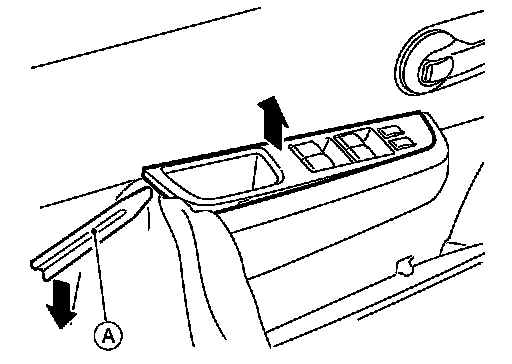

3.Insert a suitable tool into back edge of front door power window and door lock/unlock switch finisher. Lift upward to release the clips and remove.

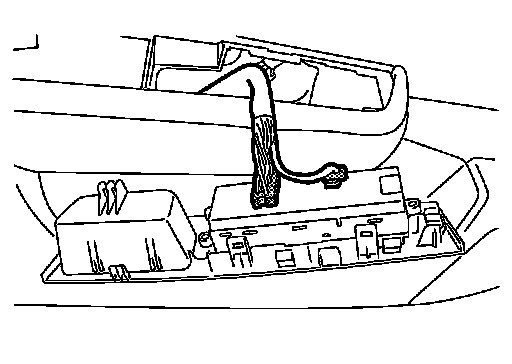

4.Disconnect front door power window and door lock/unlock switch harness connector.
5.Remove the two front door finisher screws.

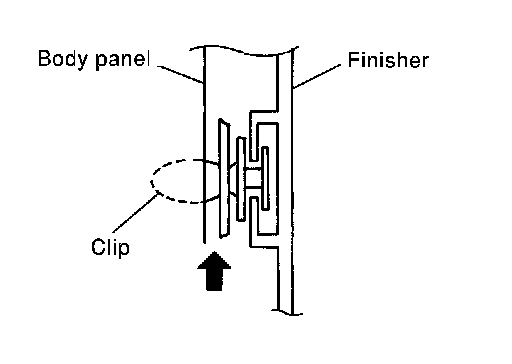

6.Release the clips, then lift front door finisher upward to remove it from door body panel.
Installation
Installation is in the reverse order of removal.

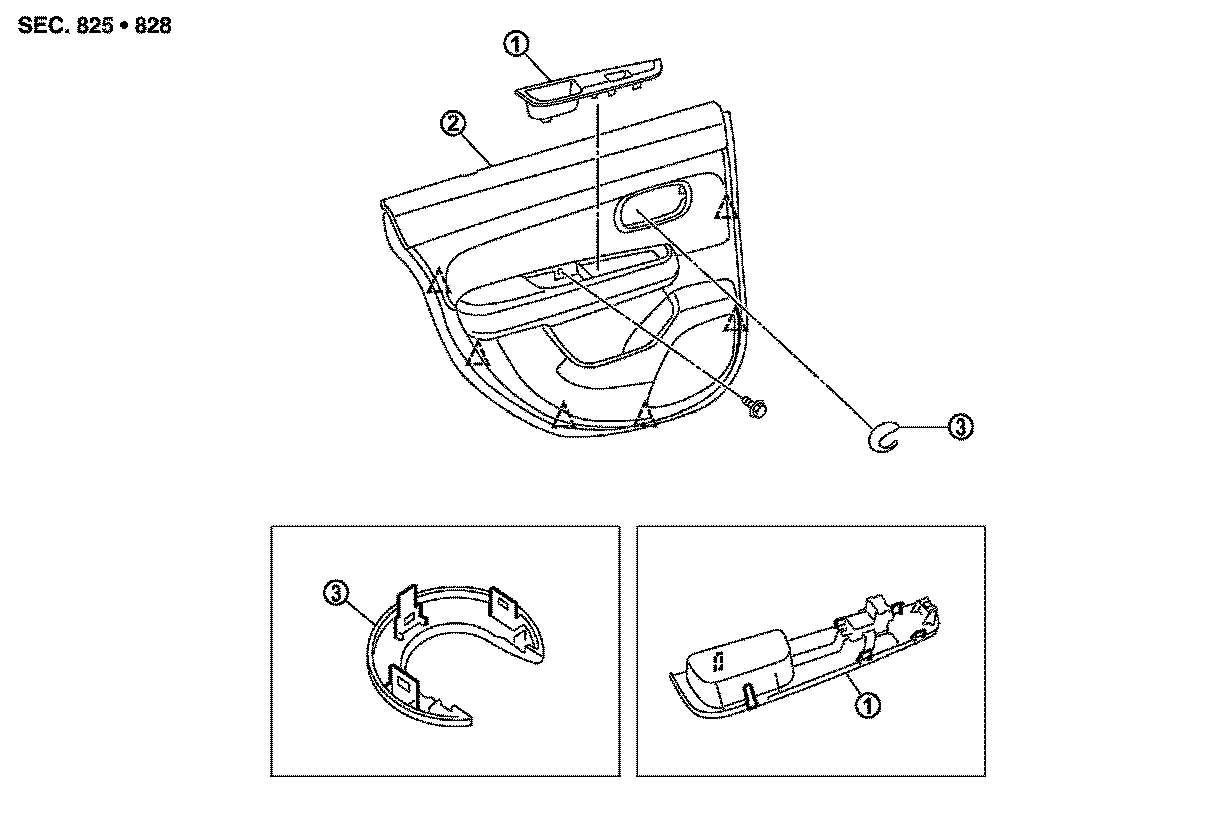

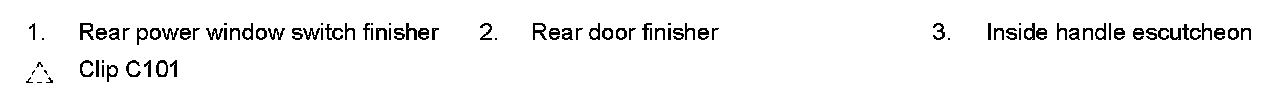

REAR DOOR











Removal
1.Open rear door and rear door window.





2.Release the rear door inside handle escutcheon pawls, then slide the escutcheon rearward to remove from rear door finisher.
Broken circle indicates : Pawl

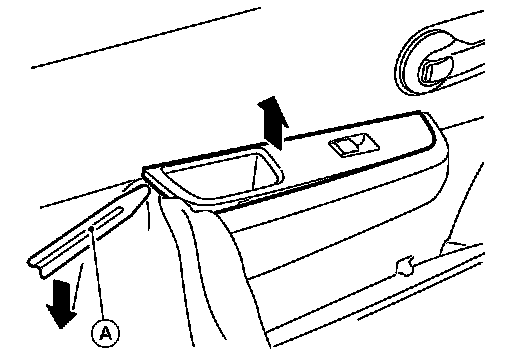

3.Insert a suitable tool into back edge of rear door power window switch finisher. Lift upward to release the clips and remove.
4.Disconnect rear door power window switch harness connector.
5.Remove rear door finisher screw.





6.Release the clips, then lift rear door finisher upward to remove it from door body panel.
Installation
Installation is in the reverse order of removal.
