CONSULT Function

BCM (BODY CONTROL MODULE)

CONSULT Function (BCM)

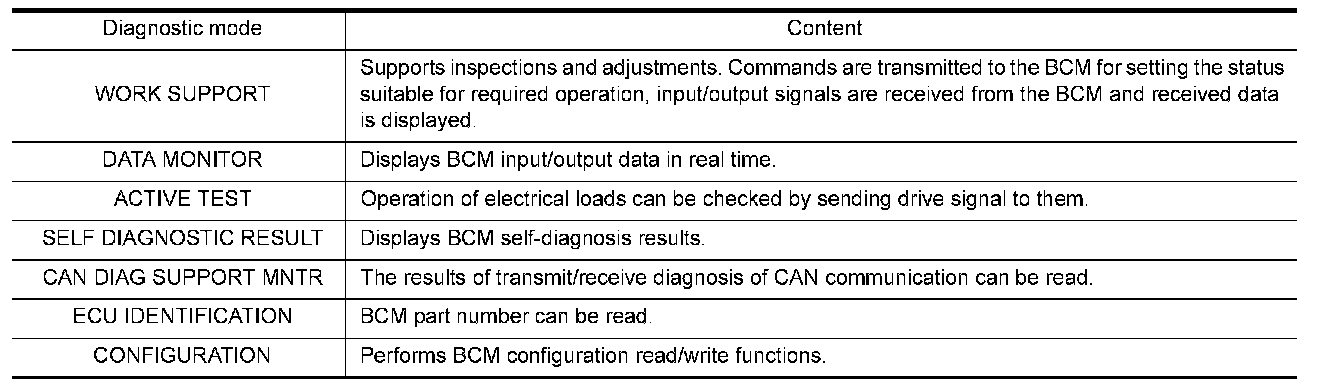

CONSULT can display each diagnostic item using the diagnostic test modes shown following.

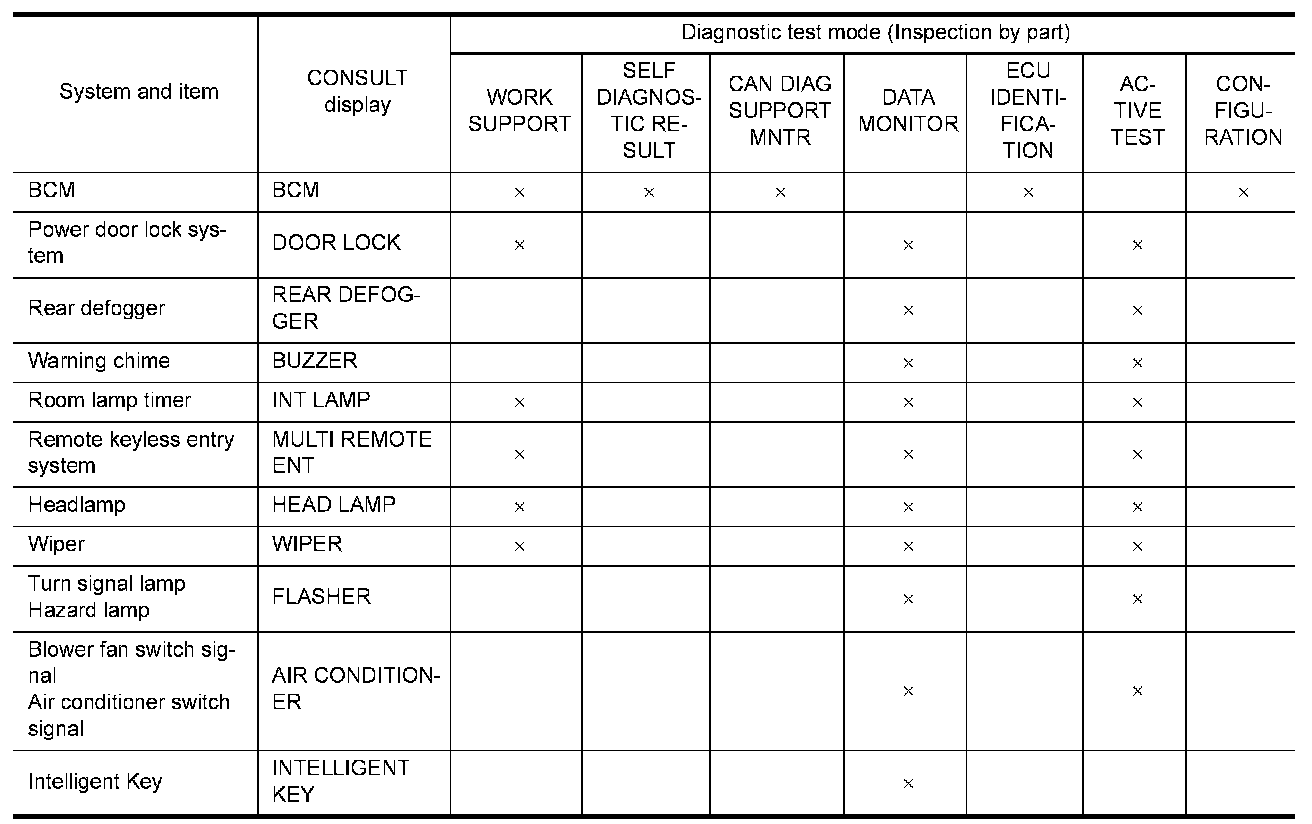

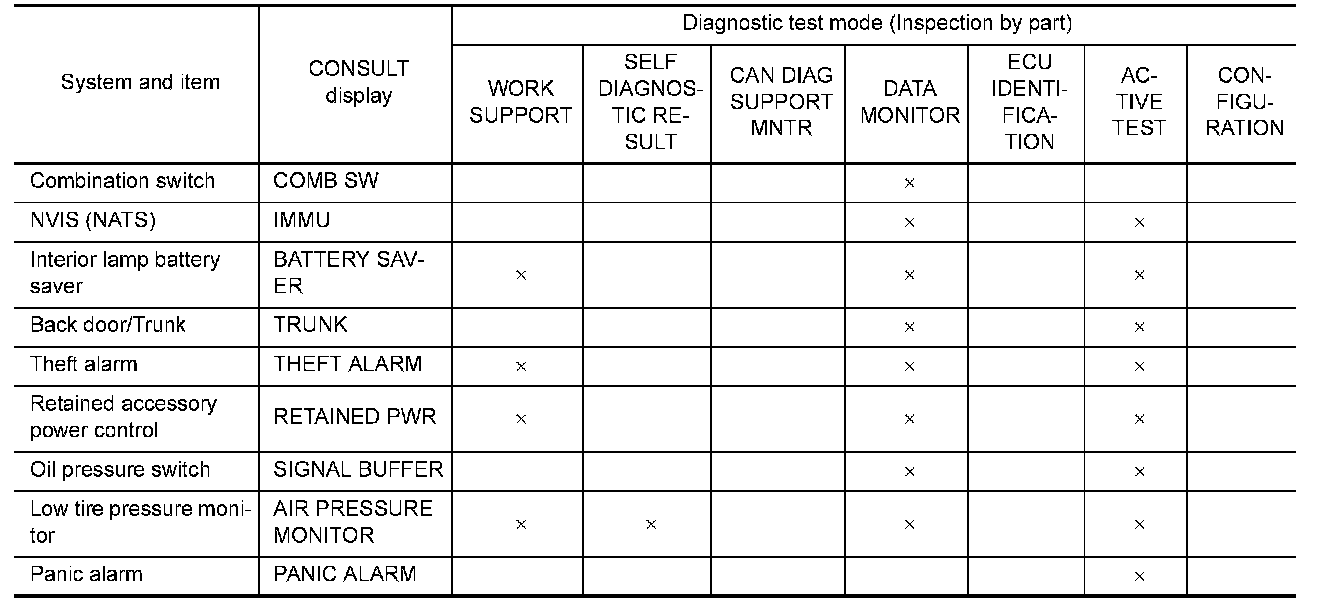

ITEMS OF EACH PART

NOTE:
CONSULT will only display systems the vehicle possesses.











WORK SUPPORT

Display Item List
