Home >> Nissan-Datsun >> 2012 >> Versa Hatchback L4-1.8L (MR18DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Terminal And Reference Value >> AV Control Unit

AV Control Unit




AUDIO

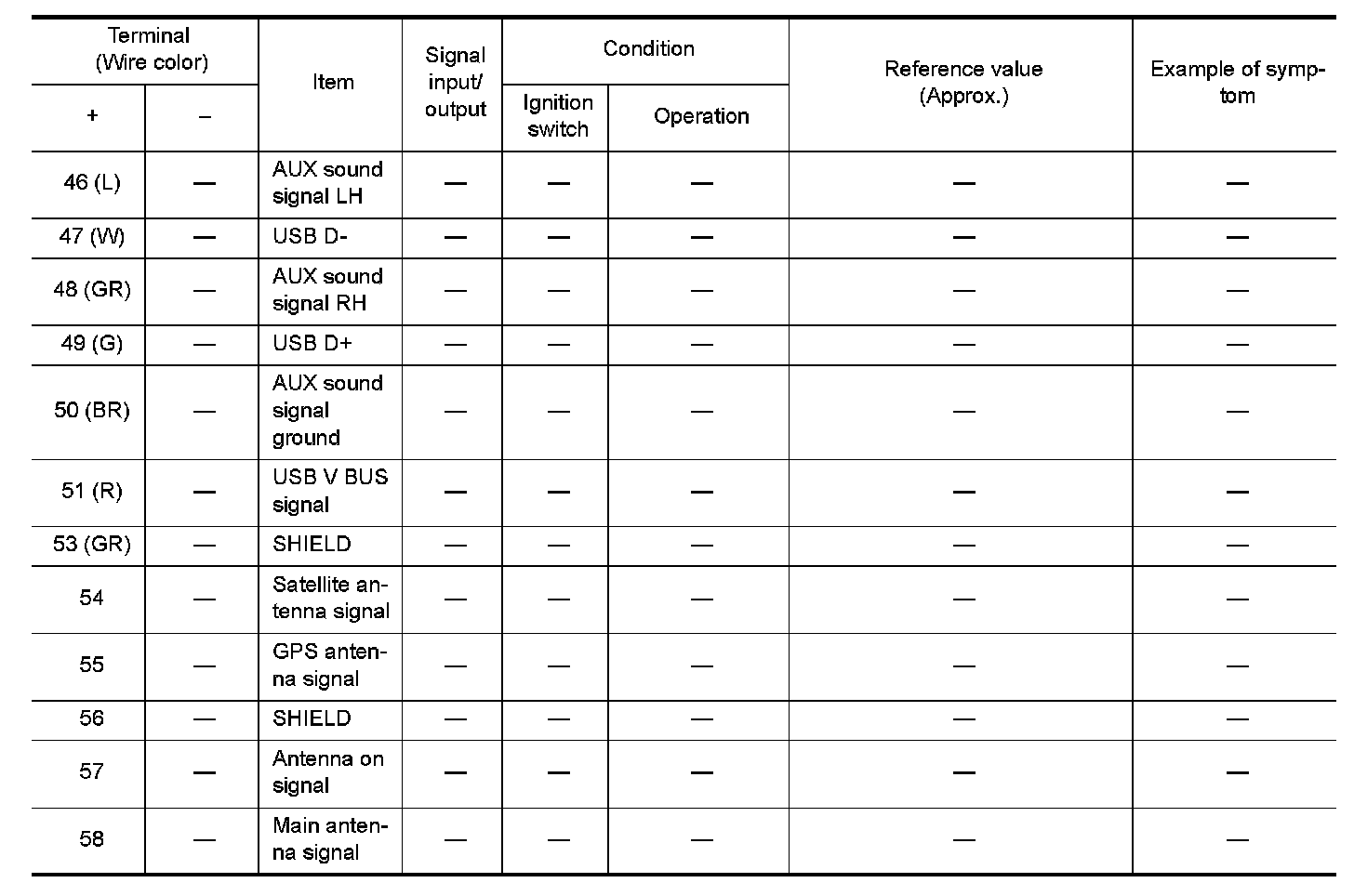

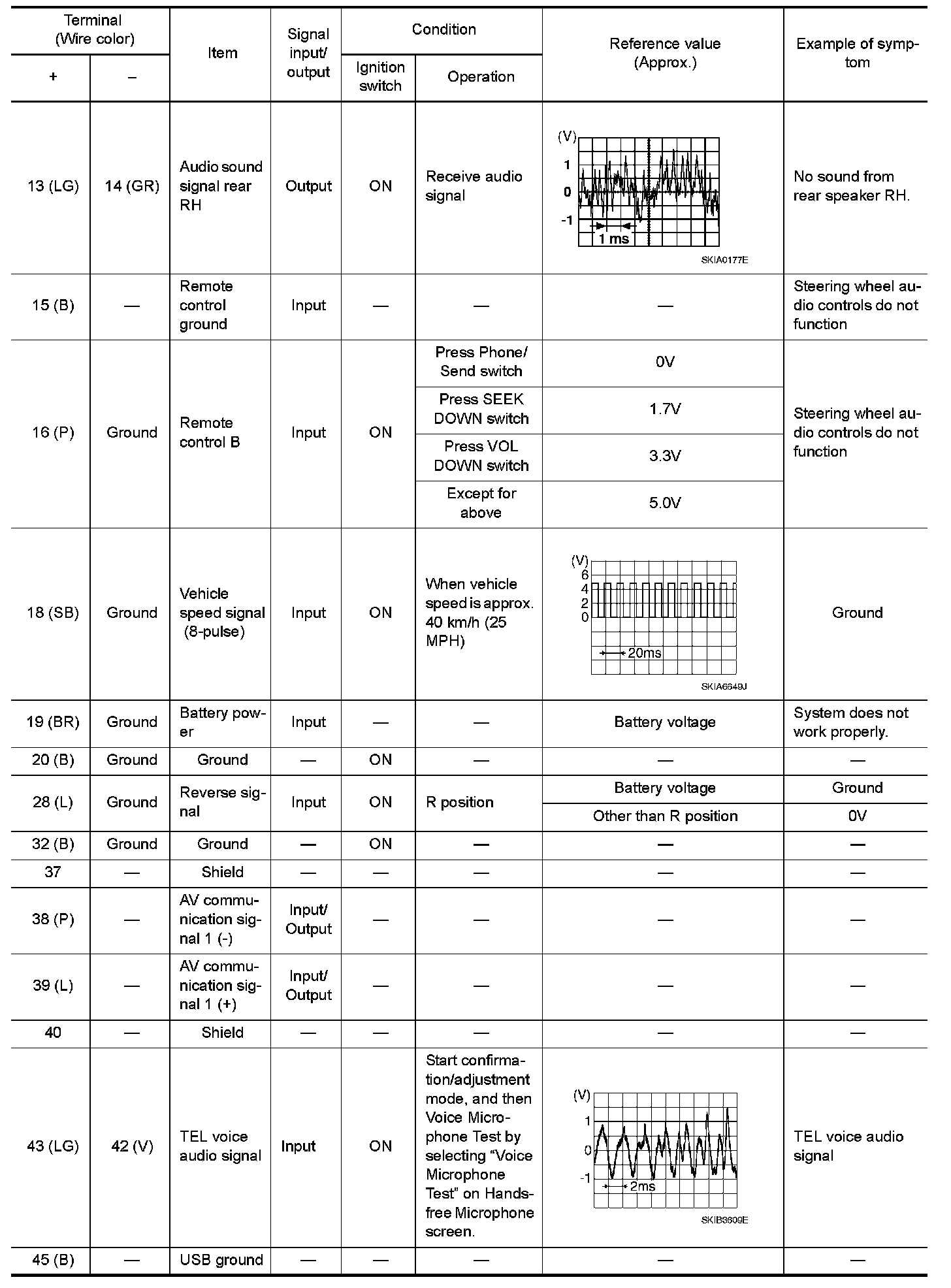

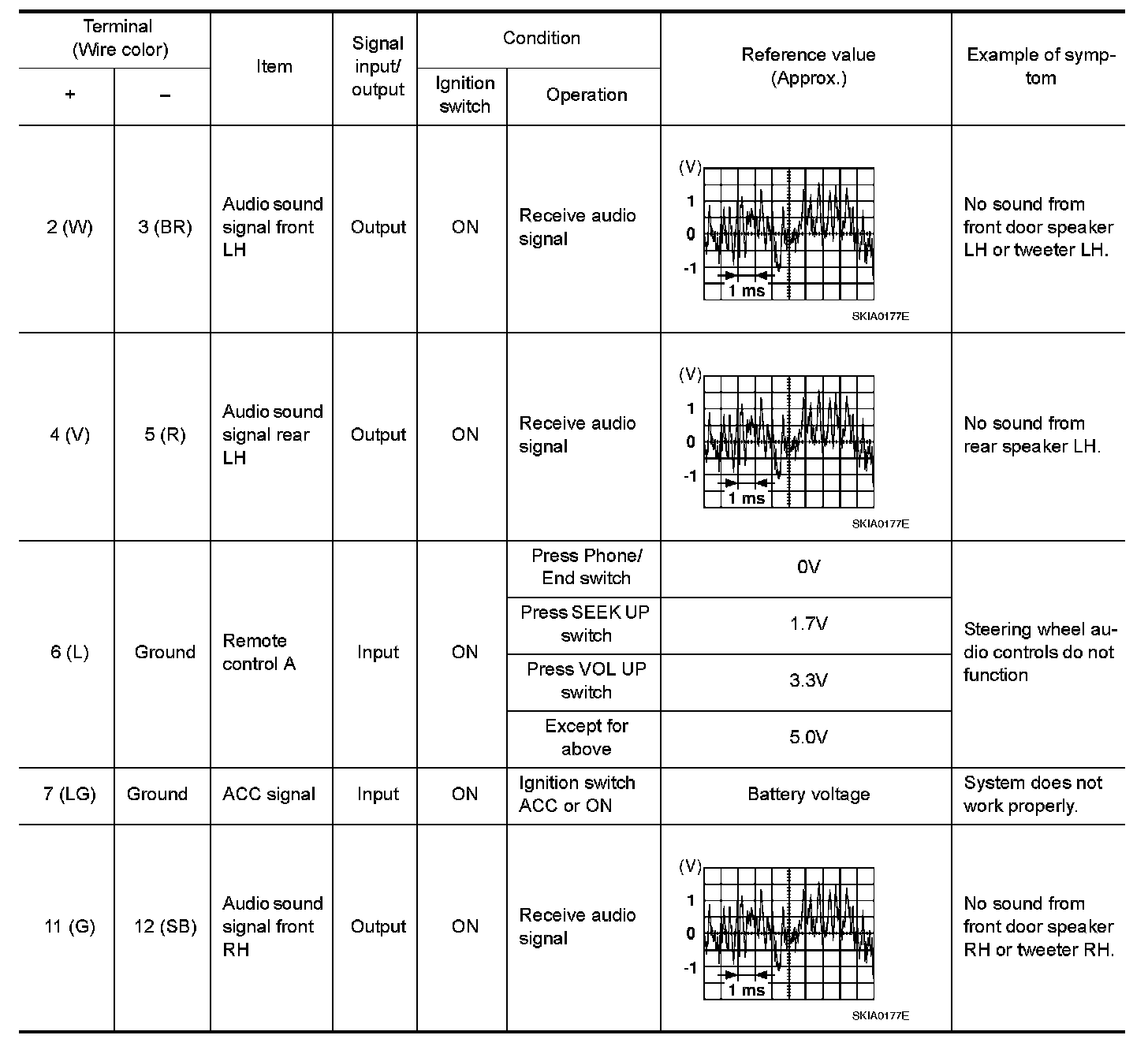

Terminal and Reference Value for AV Control Unit
