Home >> Nissan-Datsun >> 2012 >> Versa Hatchback L4-1.8L (MR18DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Cellular Phone >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Terminal And Reference Value For Bluetooth Control Unit Audio >> With Navigation

With Navigation




TELEPHONE

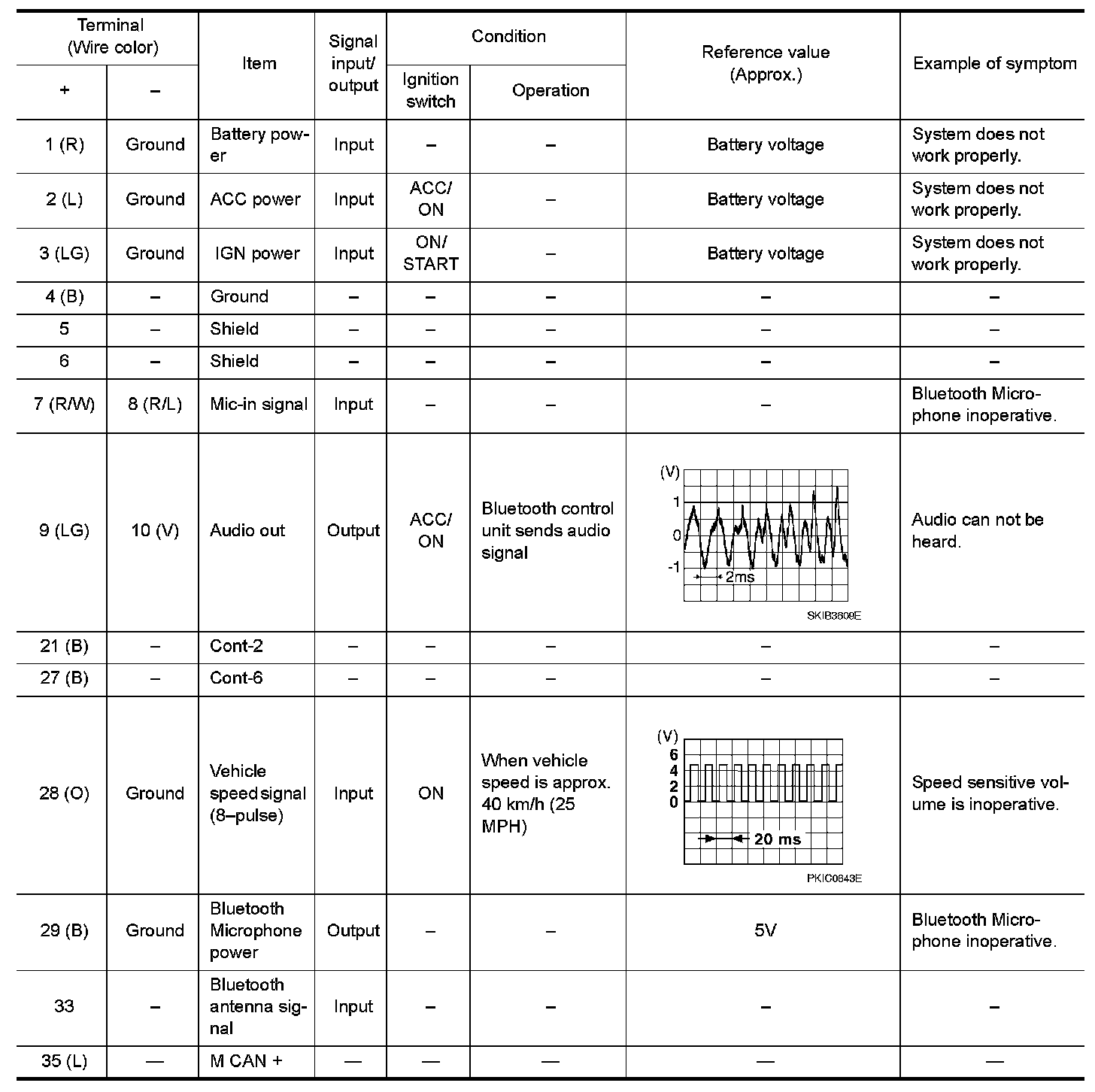

Terminal and Reference Value for Bluetooth Control Unit
