Scan Tool Testing and Procedures
VEHICLE SECURITY (THEFT WARNING) SYSTEM
CONSULT Function (BCM)

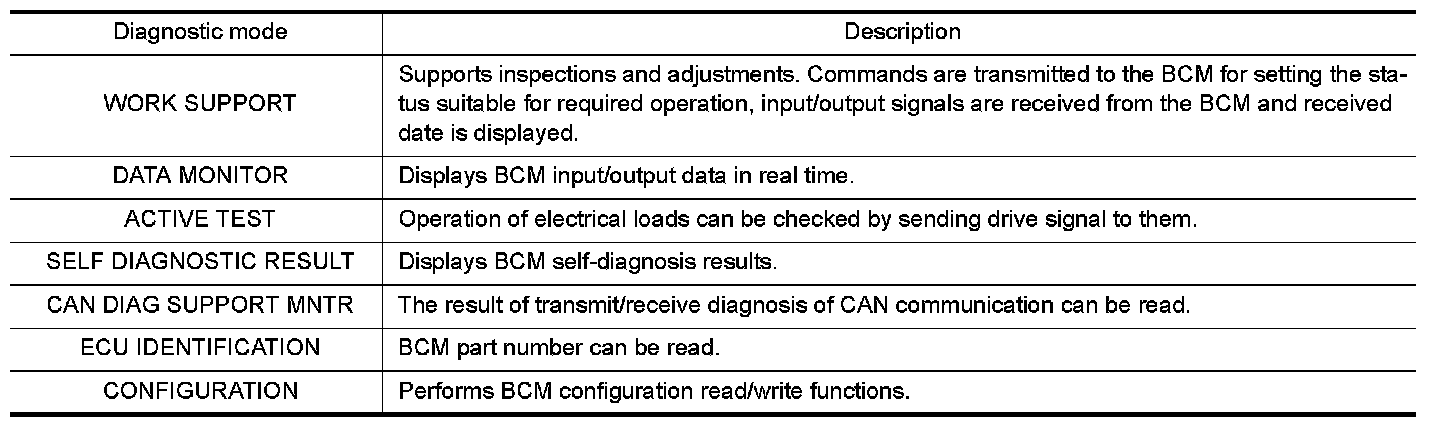

CONSULT can display each diagnostic item using the diagnostic test modes shown following.
CONSULT APPLICATION ITEM

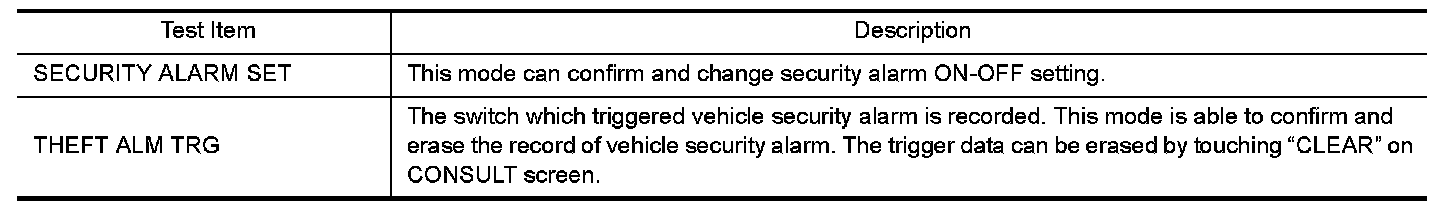

Work Support

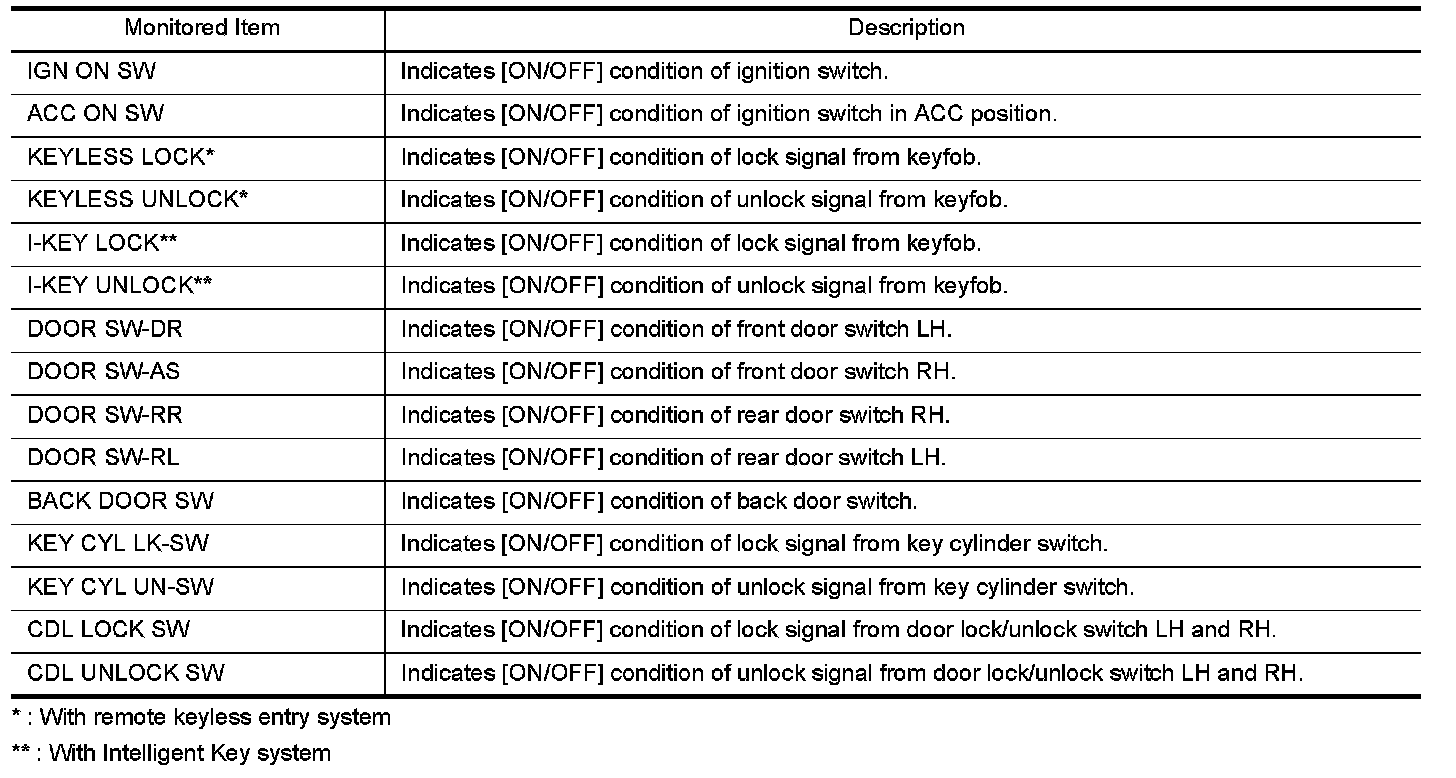

Data Monitor

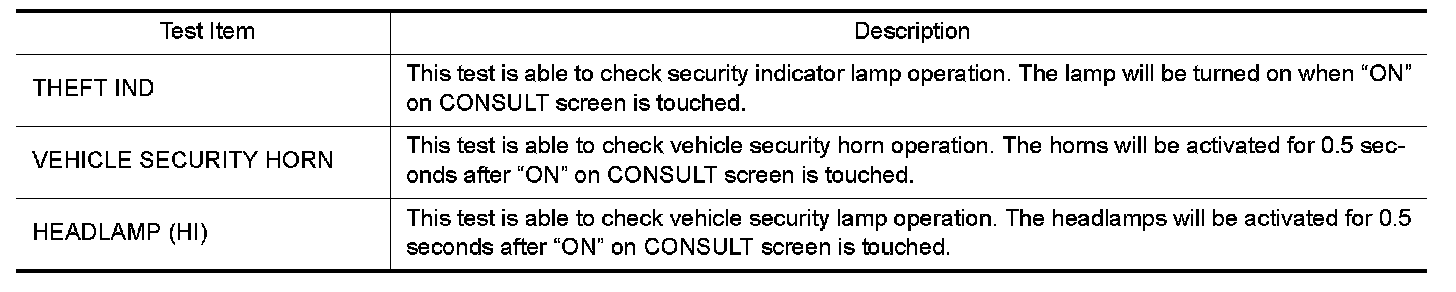

Active Test
VEHICLE SECURITY (THEFT WARNING) SYSTEM
CONSULT Function (BCM)
CONSULT can display each diagnostic item using the diagnostic test modes shown following.
CONSULT APPLICATION ITEM
Work Support
Data Monitor
Active Test
