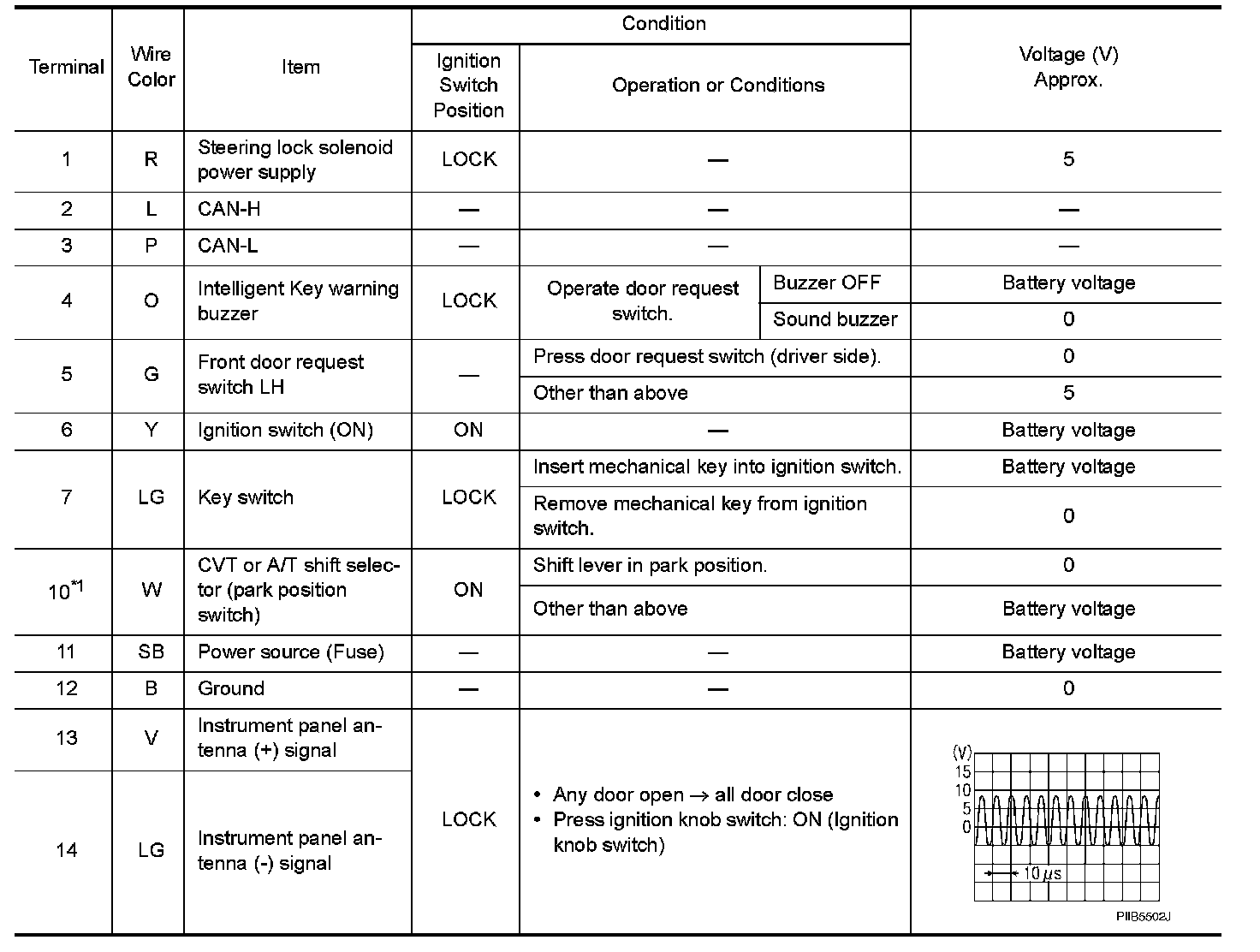

Terminal and Reference Value for Intelligent Key Unit

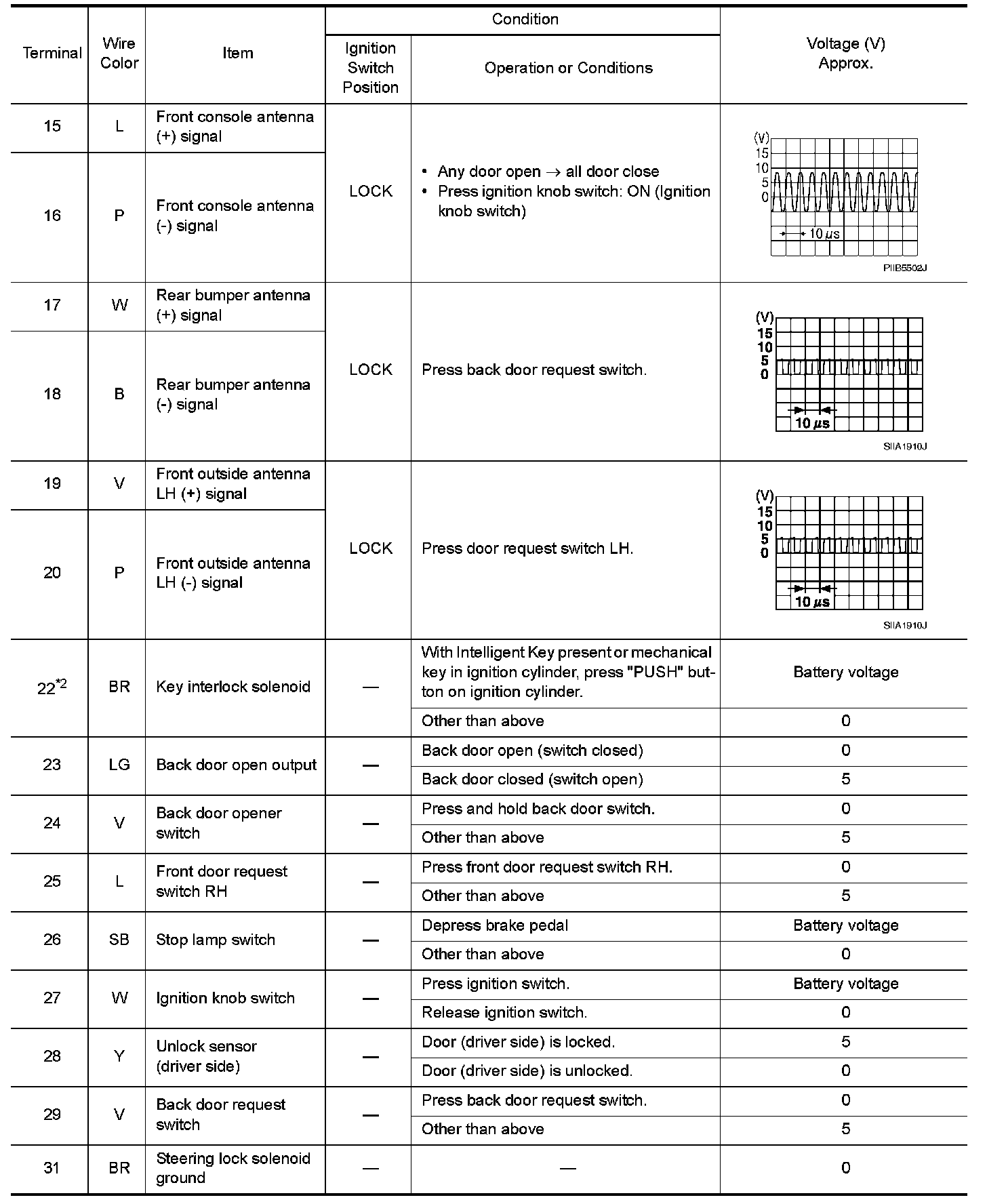

Terminal and Reference Value for Intelligent Key Unit
VEHICLE SECURITY (THEFT WARNING) SYSTEM

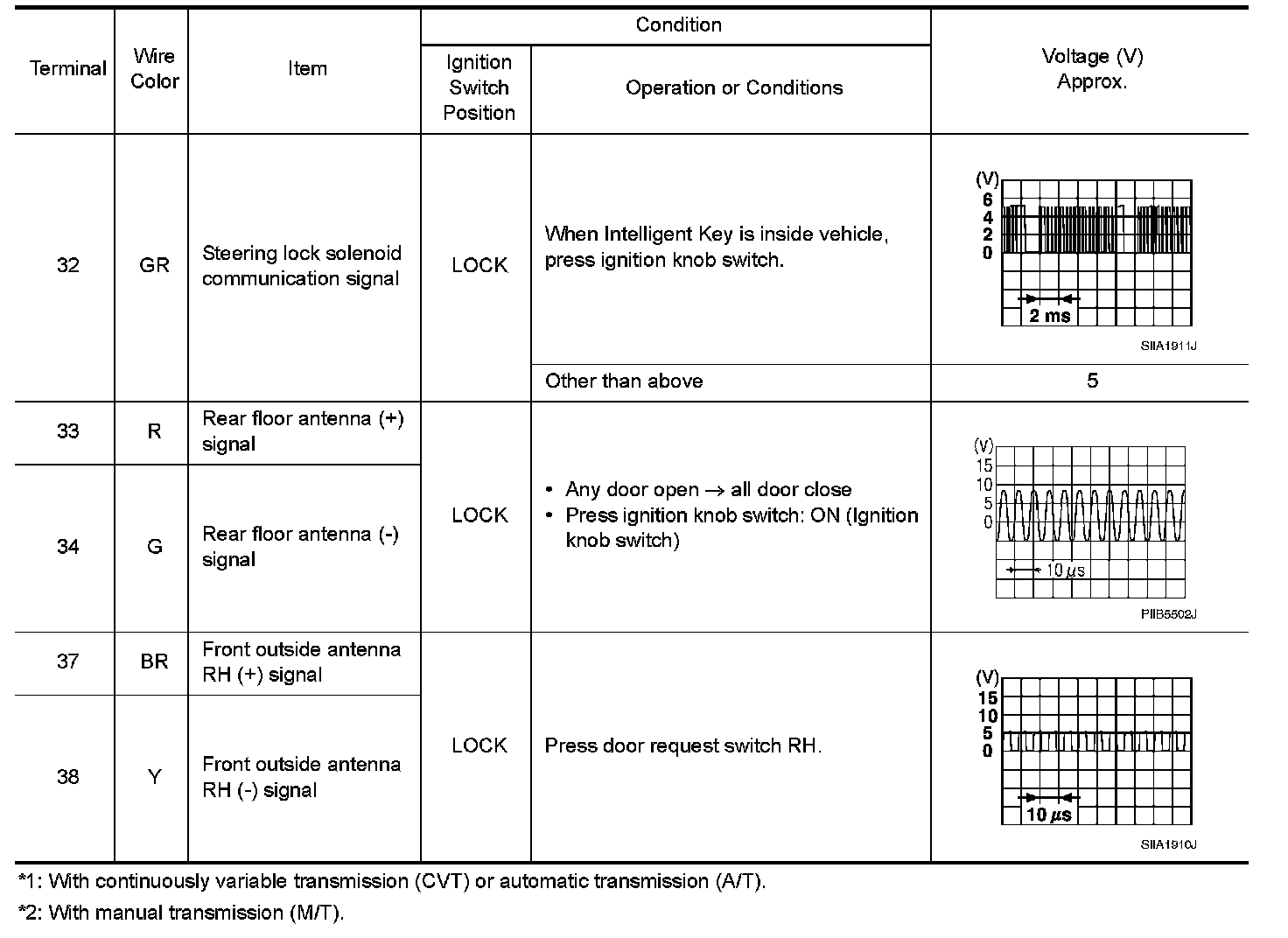

Terminal and Reference Value for Intelligent Key Unit
