Versa Hatchback L4-1.8L (MR18DE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Keyless Entry
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Terminal And Reference Value for Intelligent Key Unit
Terminal And Reference Value for Intelligent Key Unit
INTELLIGENT KEY SYSTEM

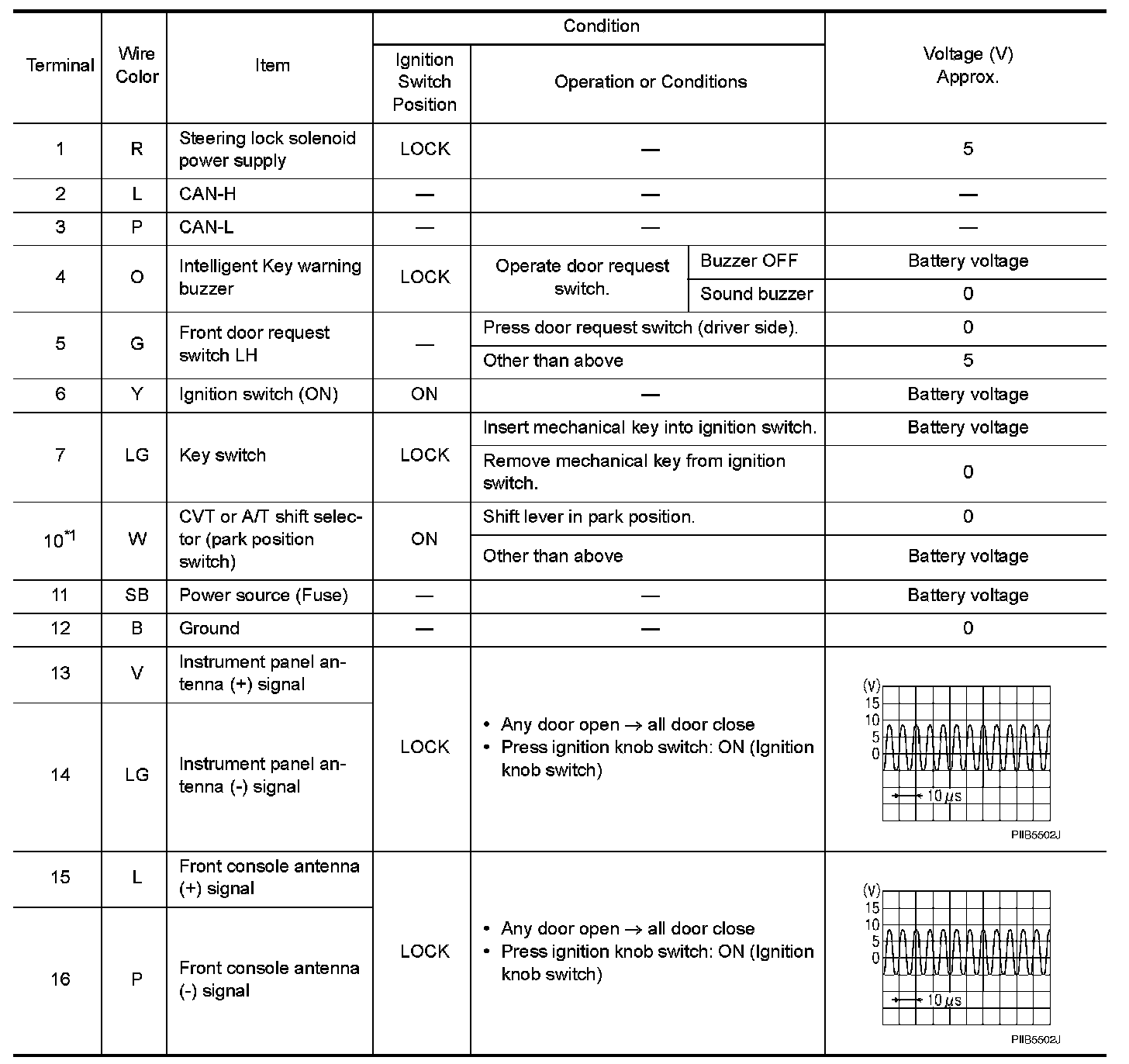

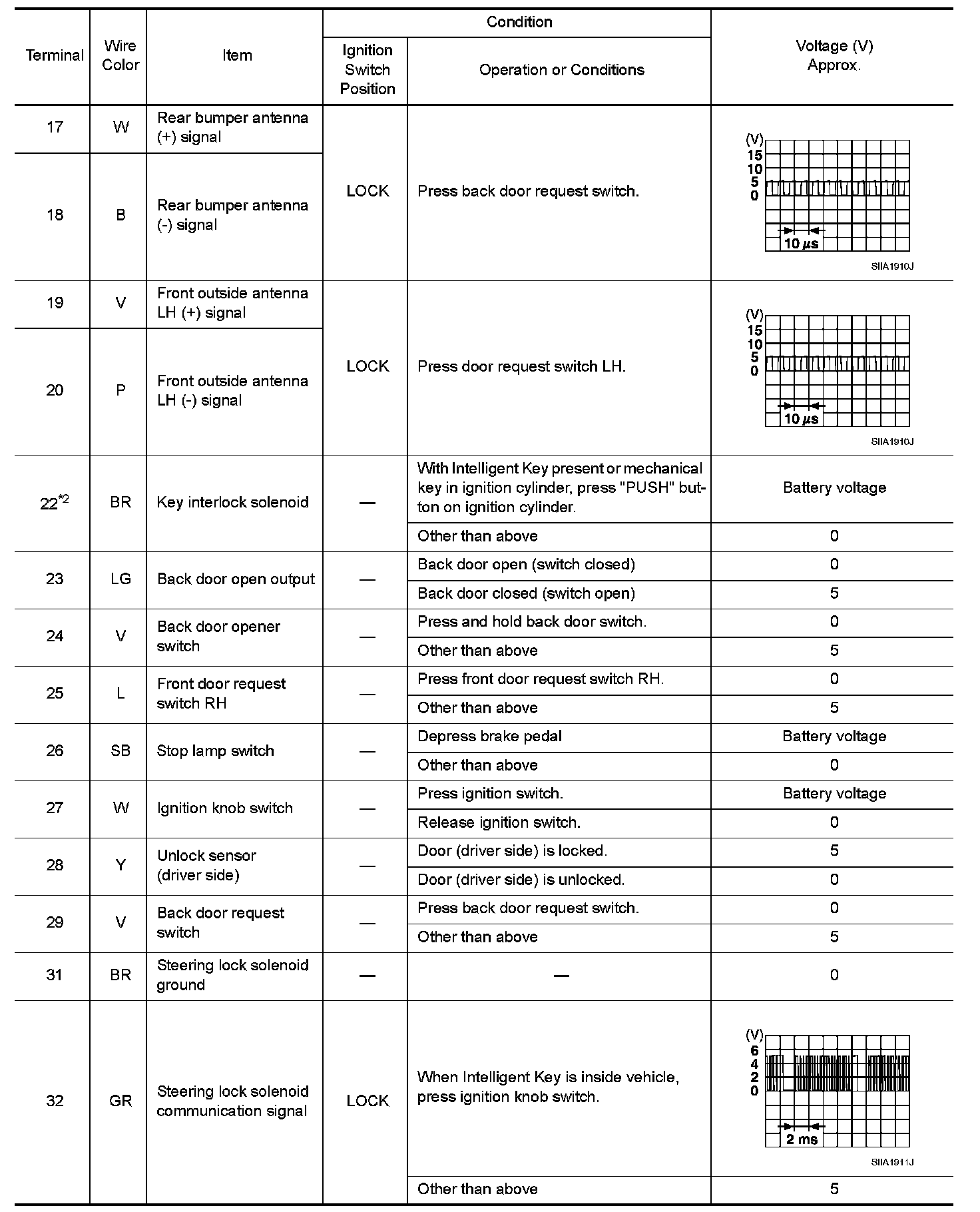

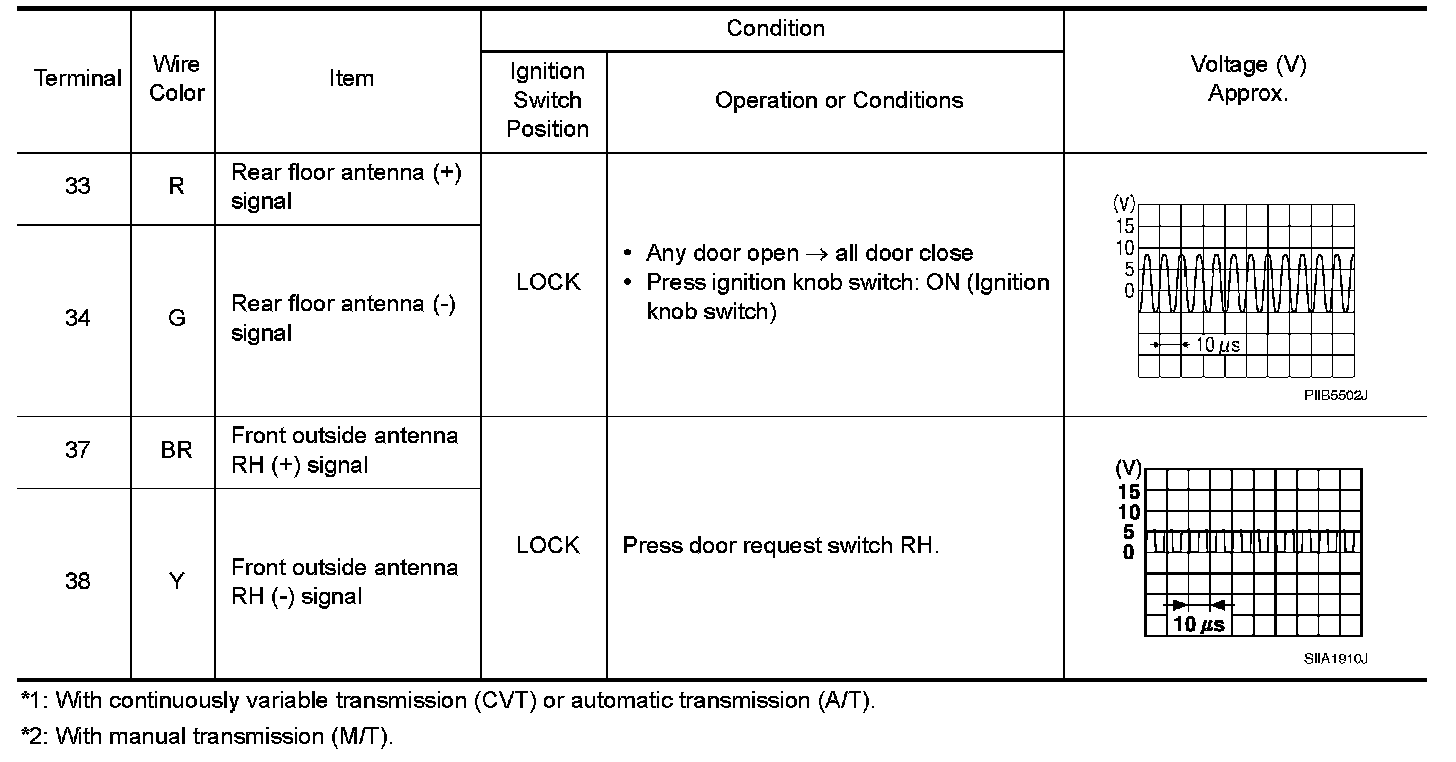

Terminal and Reference Value for Intelligent Key Unit
