C1610

C1610 ENGINE STATUS SIGNAL

Description

EPS control unit receives the engine status signal from ECM via CAN communication line.


DTC Logic

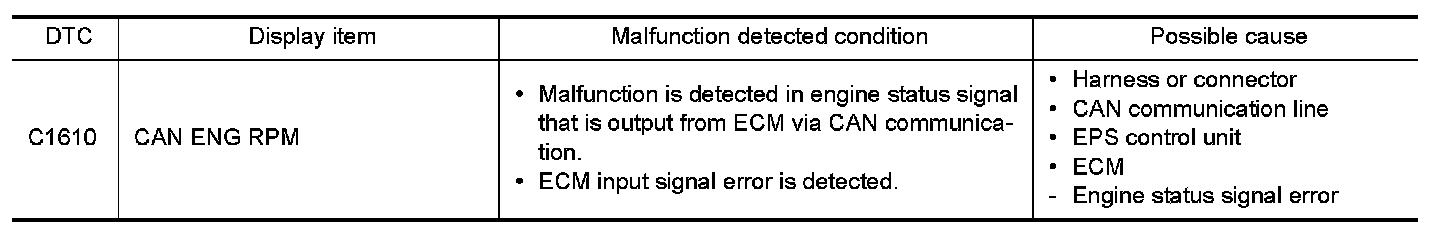

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. DTC REPRODUCTION PROCEDURE

With CONSULT
1.Turn the ignition switch OFF to ON.
2.Perform EPS control unit self-diagnosis.
Is DTC "C1610" detected?
YES- Proceed to diagnosis procedure. .
NO- Inspection End.


Diagnosis Procedure


1. PERFORM ECM SELF-DIAGNOSIS

With CONSULT
1.Turn the ignition switch OFF to ON.
2.Perform ECM self-diagnosis. CONSULT Function (Engine).
Is any DTC detected?
YES- Check the DTC. Testing and Inspection.
NO- GO TO 2.

2. PERFORM SELF-DIAGNOSIS

With CONSULT
Perform EPS control unit self-diagnosis.
Is DTC "C1610" detected?
YES- Replace EPS control unit. Service and Repair.
NO- Check EPS control unit pin terminals for damage or loose connection with harness connector. If any item are damaged, repair or replace error-detected parts.
