CONSULT Function (BCM)

FRONT WIPER AND WASHER SYSTEM

CONSULT Function (BCM)

CONSULT can display each diagnostic item using the diagnostic test modes shown following.

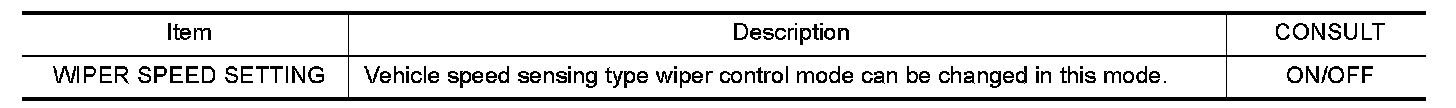

WORK SUPPORT

Display Item List

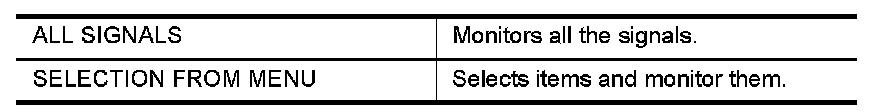

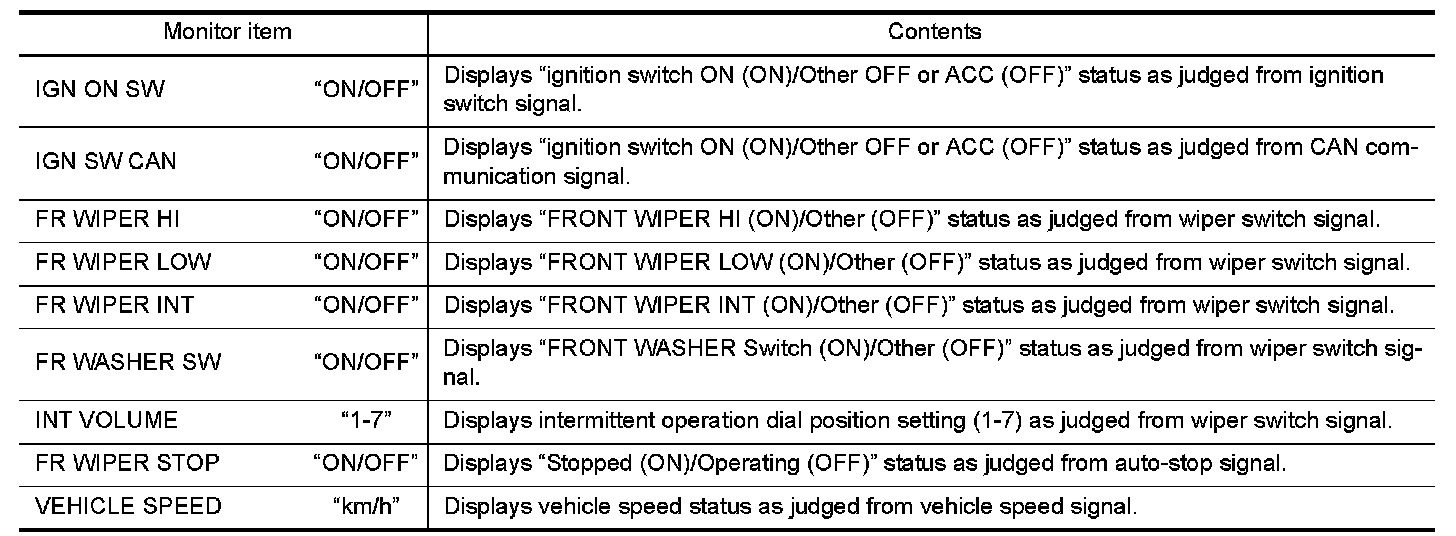

DATA MONITOR






Display Item List

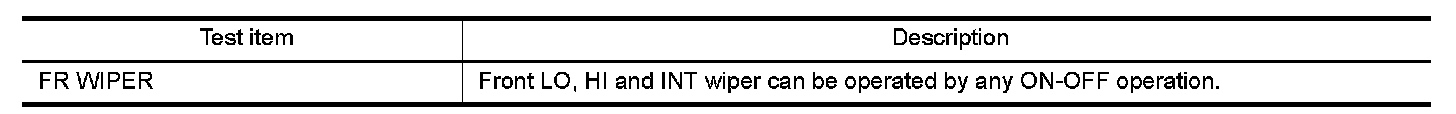

ACTIVE TEST

Display Item List
