Terminal And Reference Value For Main Power Window And Door Lock/Unlock Switch




POWER WINDOW SYSTEM

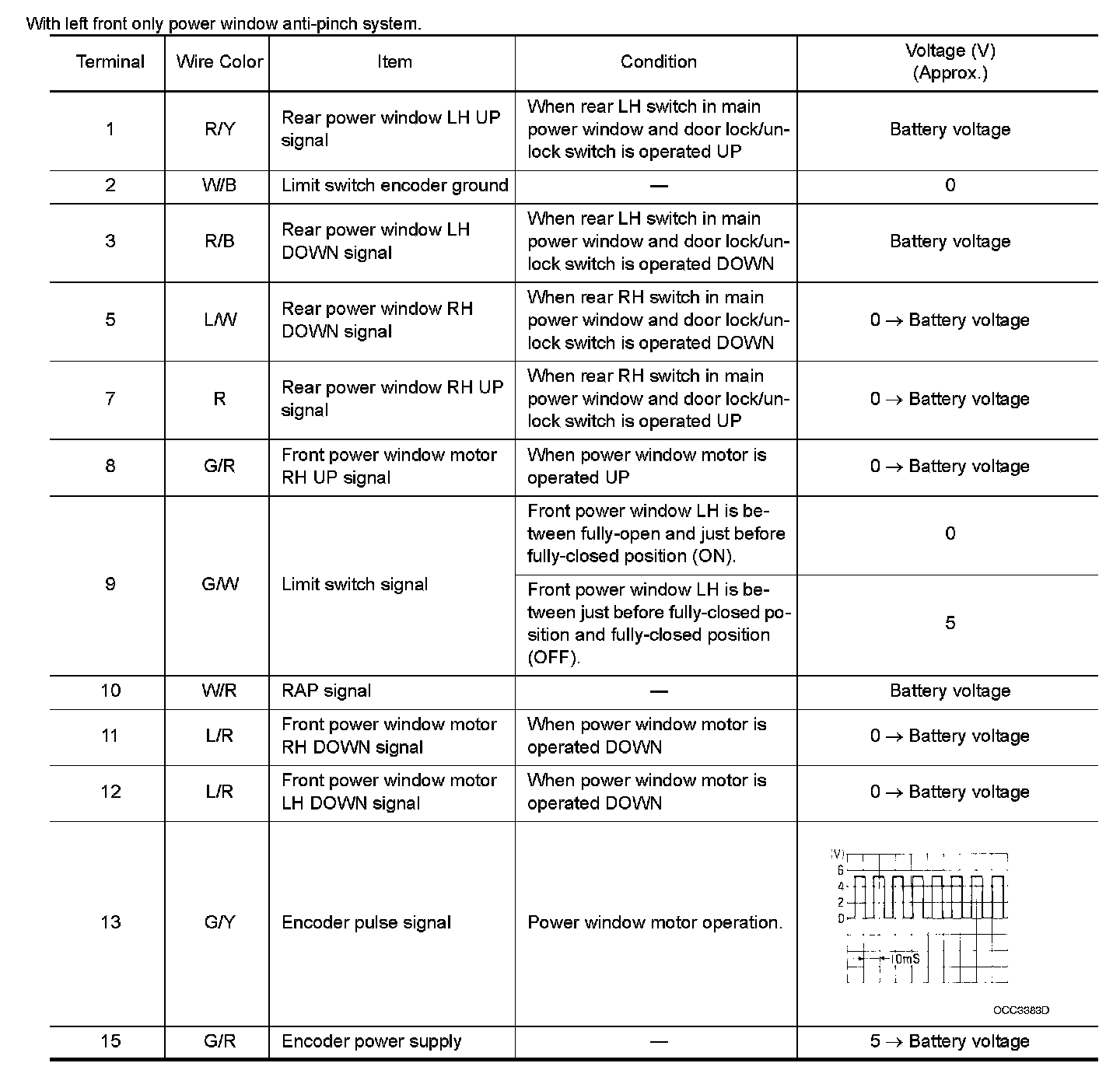

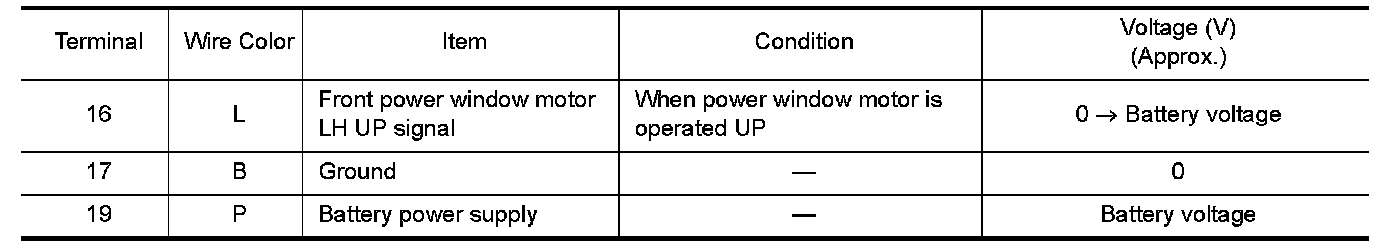

Terminal and Reference Value for Main Power Window and Door Lock/Unlock Switch

With left front only power window anti-pinch system.
