Power Window And Door Lock/Unlock Switch RH Power Supply Circuit Inspection

POWER WINDOW SYSTEM

Power Window and Door Lock/Unlock Switch RH Power Supply Circuit Inspection


1. CHECK POWER SUPPLY CIRCUIT






1.Turn ignition switch ON.

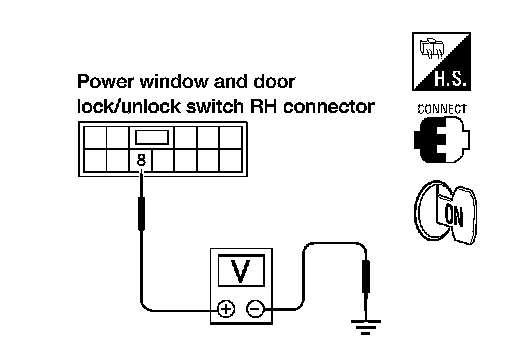

2.Check voltage between power window and door lock/unlock switch RH connector D104 terminal 8 and ground.
8 - Ground: Battery voltage
OK or NG
OK- Replace power window and door lock/unlock switch RH.
Service and Repair.
NG- GO TO 2.

2. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH POWER SUPPLY CIRCUIT






1.Turn ignition switch OFF.
2.Disconnect BCM and power window and door lock/unlock switch
RH.

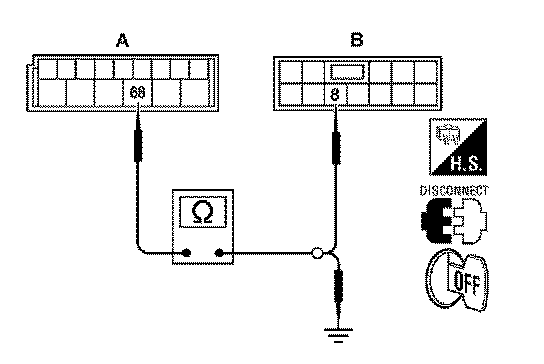

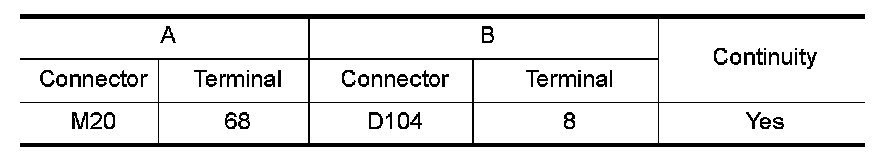

3.Check continuity between BCM connector (A) and power window and door lock/unlock switch RH connector (B).

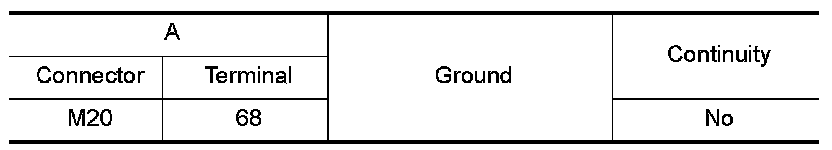

4.Check continuity between BCM connector (A) and ground.





OK or NG
OK- Check the condition of the harness and the connector.
NG- Repair or replace harness.
