Front Power Window RH Circuit Inspection (Power Window And Door Lock/Unlock Switch RH Operation)

POWER WINDOW SYSTEM

Front Power Window RH Circuit Inspection (Power Window and Door Lock/Unlock Switch RH Operation)


1. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH OUTPUT SIGNAL






1.Turn ignition switch OFF.
2.Disconnect front power window motor RH.
3.Turn ignition switch ON.

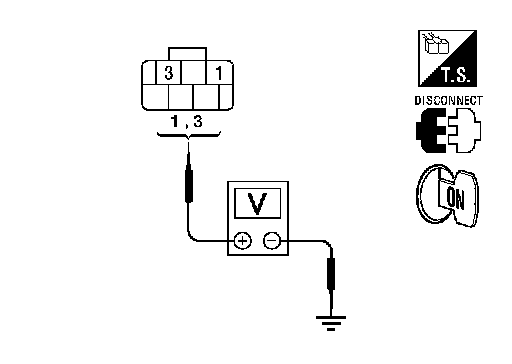

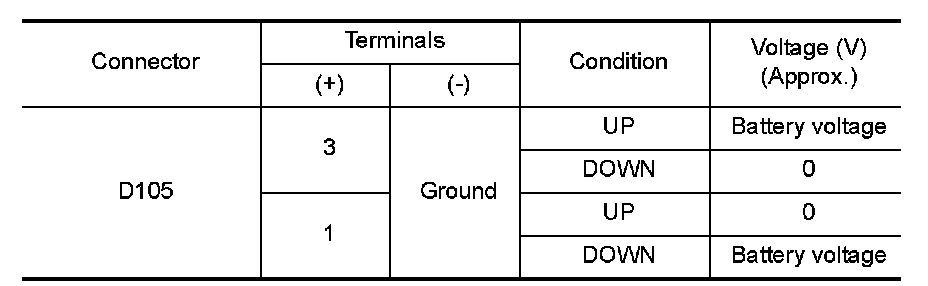

4.Check voltage between front power window motor RH connector and ground.





OK or NG
OK- Replace front power window motor RH. Removal And Installation.
NG- GO TO 2.

2. CHECK POWER SUPPLY CIRCUIT






1.Turn ignition switch ON.
2.Check voltage between power window and door lock/unlock switch RH connector D104 and ground.
8 - Ground: Battery voltage
OK or NG
OK- GO TO 4.
NG- GO TO 3.

3. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH POWER SUPPLY CIRCUIT






1.Turn ignition switch OFF.
2.Disconnect BCM and power window and door lock/unlock switch
RH.

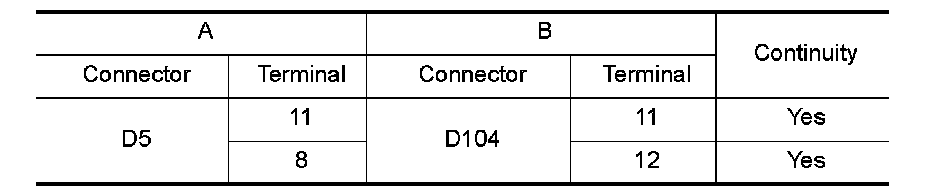

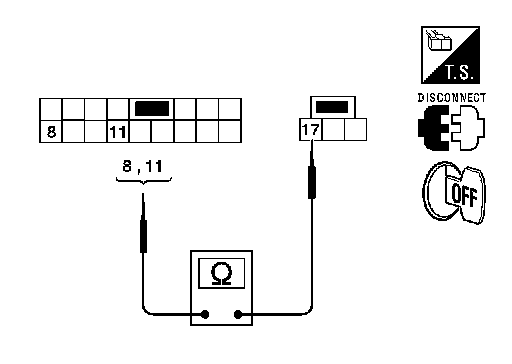

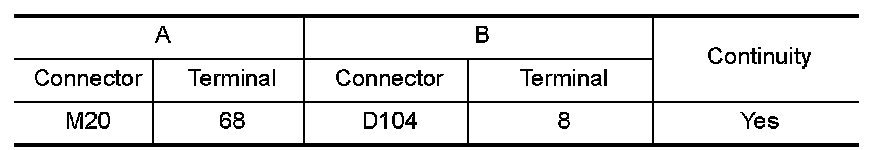

3.Check continuity between BCM connector (A) and power window and door lock/unlock switch connector (B).

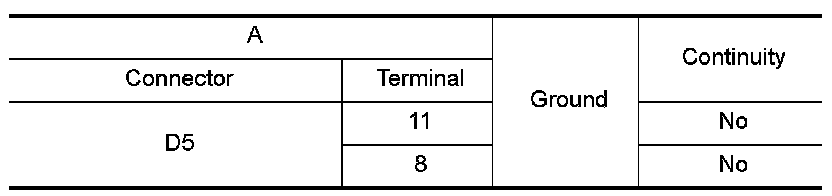

4.Check continuity between BCM connector (A) and ground.





OK or NG
OK- Check the condition of the harness and the connector.
NG- Repair or replace harness.

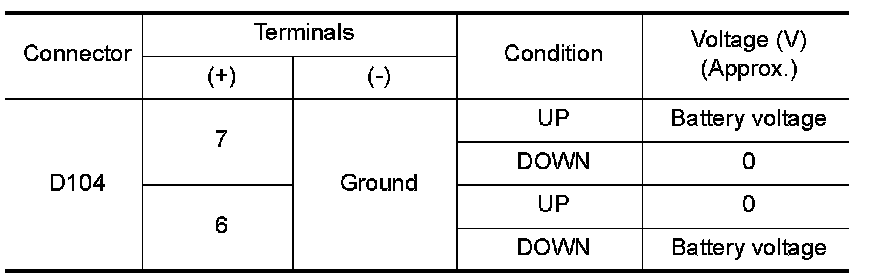

4. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH OUTPUT SIGNAL






1.Turn ignition switch ON.

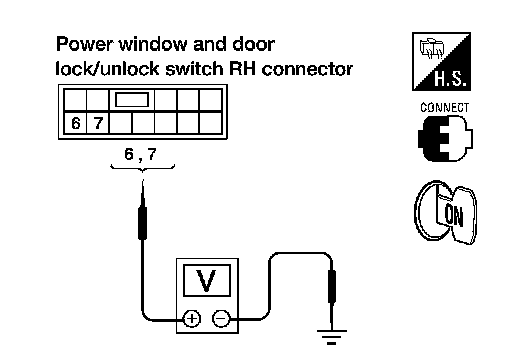

2.Check voltage between power window and door lock/unlock switch RH connector and ground.





OK or NG
OK- GO TO 5.
NG- GO TO 6.

5. CHECK FRONT POWER WINDOW MOTOR RH CIRCUIT






1.Turn ignition switch OFF.
2.Disconnect front power window motor RH and power window and door lock/unlock switch RH.

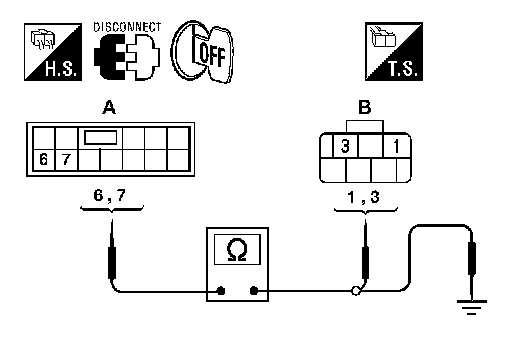

3.Check continuity between power window and door lock/unlock switch RH connector D104 (A) terminals 6, 7 and front power window motor RH connector D105 (B) terminals 1, 3.
7 - 3: Continuity should exist.
6 - 1: Continuity should exist.
4.Check continuity between power window and door lock/unlock switch RH connector D104 (A) terminals 6, 7 and ground.
6 - Ground: Continuity should not exist.
7 - Ground: Continuity should not exist.
OK or NG
OK- Replace front power window motor RH. Removal And Installation.
NG- Repair or replace harness.

6. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH






1.Turn ignition switch OFF.

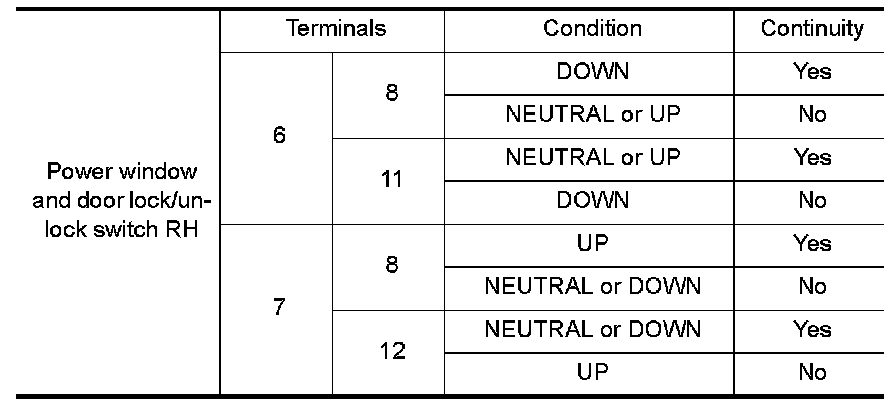

2.Check continuity between power window and door lock/unlock switch RH terminals.





OK or NG
OK- GO TO 7.
NG- Replace power window and door lock/unlock switch RH. Service and Repair.

7. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH GROUND SUPPLY

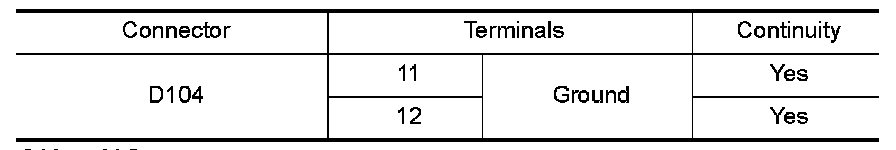

Check continuity between power window and door lock/unlock switch connector and ground.





OK or NG
OK- Check the condition of the harness and the connector.
NG- GO TO 8.

8. CHECK GROUND SUPPLY CIRCUIT






1.Disconnect main power window and door lock/unlock switch and power window and door lock/unlock switch RH.

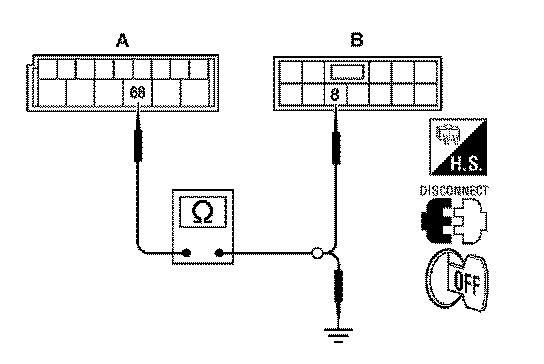

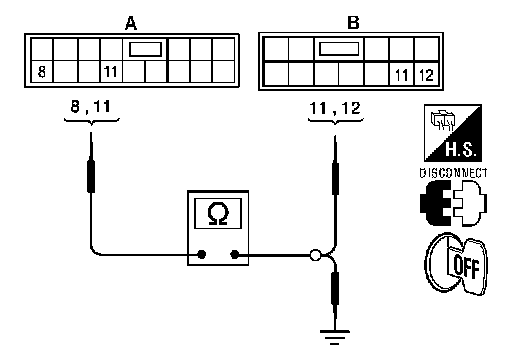

2.Check continuity between main power window and door lock/
unlock switch connector (A) and power window and door lock/
unlock switch RH connector (B).

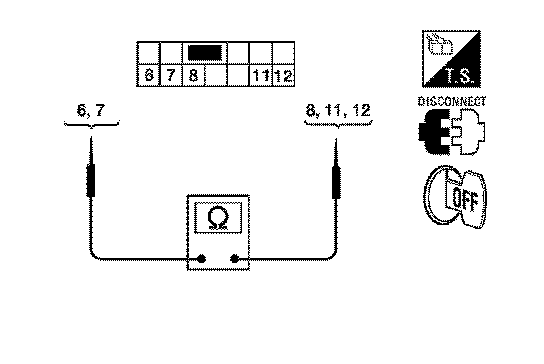

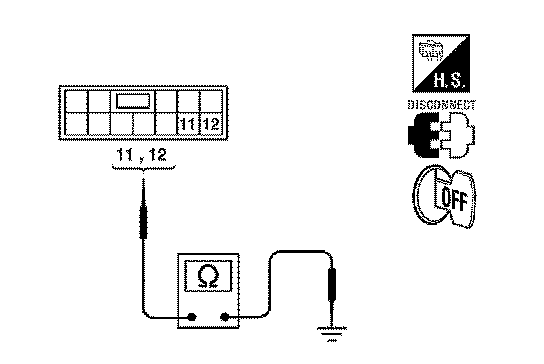

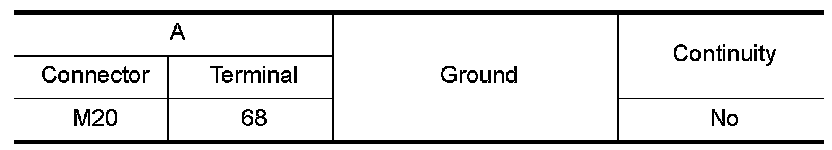

3.Check continuity between main power window and door lock/unlock switch connector (A) and ground.





OK or NG
OK- GO TO 9.
NG- Repair or replace harness.

9. CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

NOTE:
Make sure the window lock switch is in the unlock position.

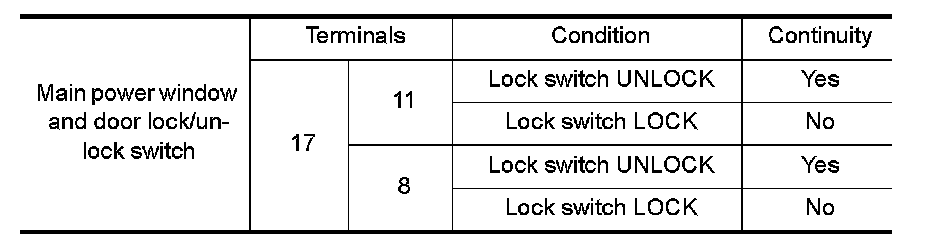

Check continuity between main power window and door lock/unlock switch terminals.





OK or NG
OK- Repair or replace harness.
NG- Replace main power window and door lock/unlock switch. Service and Repair.
