RS6F52A

POSITION SWITCH

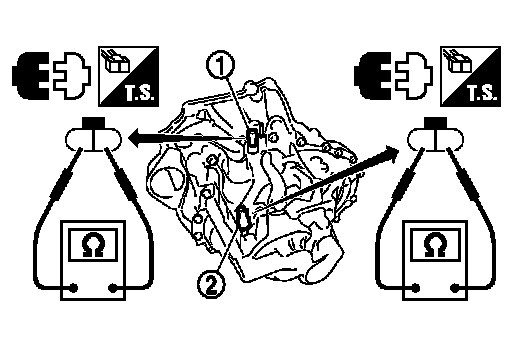

Checking

NOTE:
For removal and installation of the switches, Disassembly And Assembly.

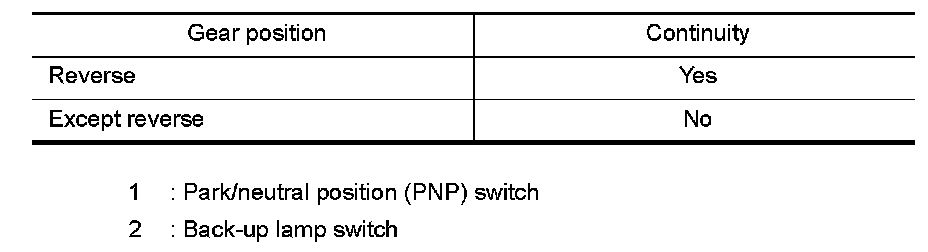

BACK-UP LAMP SWITCH






- Check continuity.

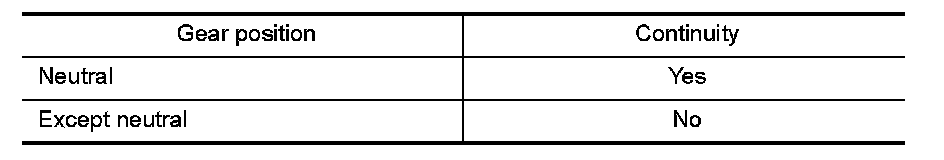

PARK/NEUTRAL POSITION (PNP) SWITCH

- Check continuity.
