Home >> Nissan-Datsun >> 2012 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Shifter M/T >> Service and Repair >> Removal and Replacement >> RS6F52A >> Component Of Shift Selector And Cable

Component Of Shift Selector And Cable




CONTROL LINKAGE

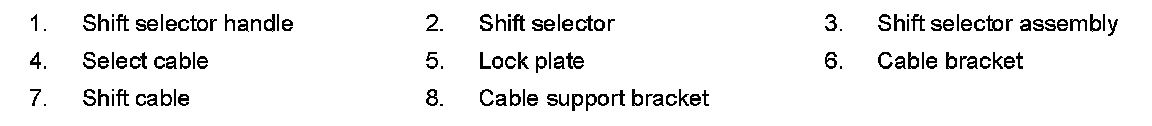

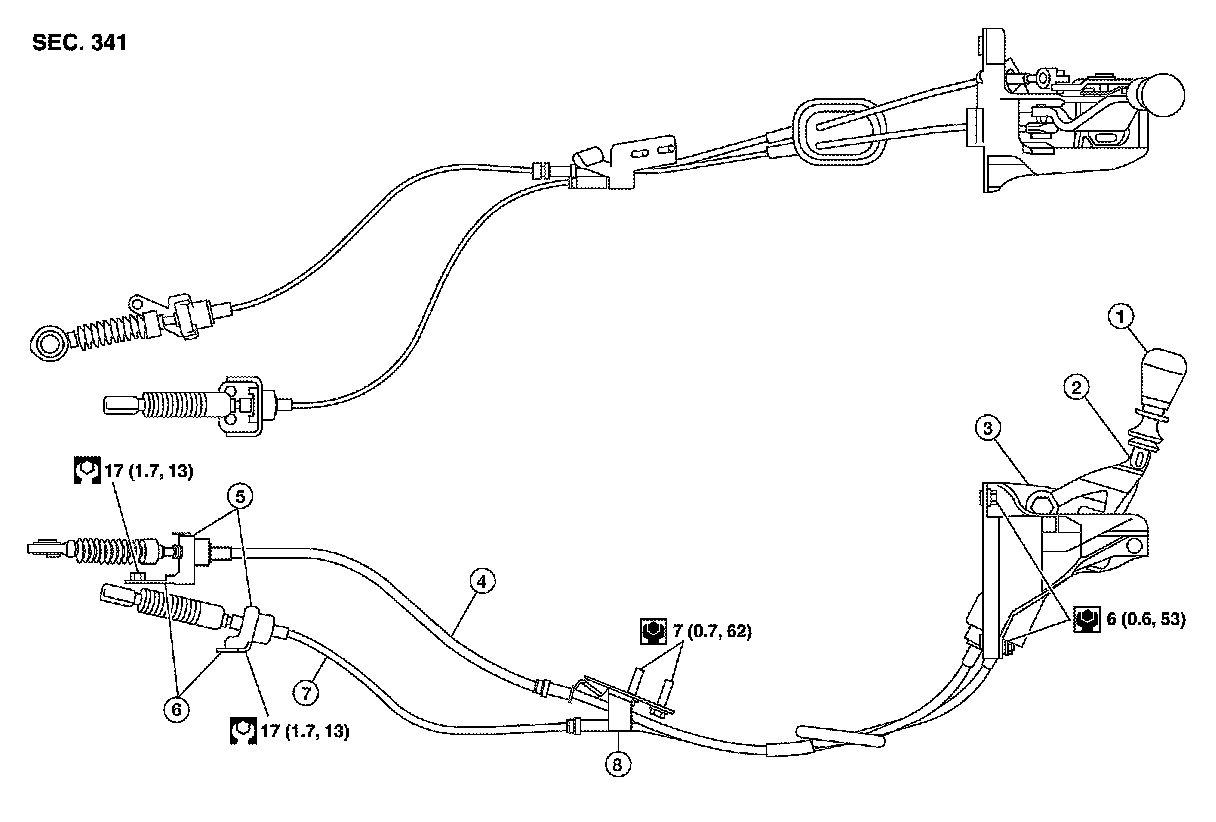

Component of Shift Selector and Cable
