RS6F52H

SHIFT CONTROL

Disassembly and Assembly


DISASSEMBLY

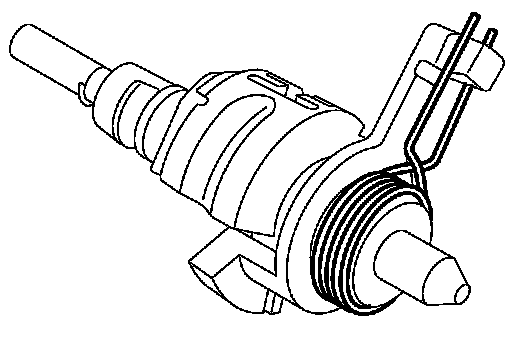

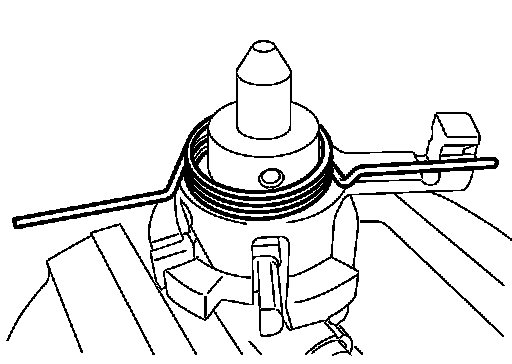

1.Remove return spring to striking rod assembly.

INSPECTION AFTER DISASSEMBLY

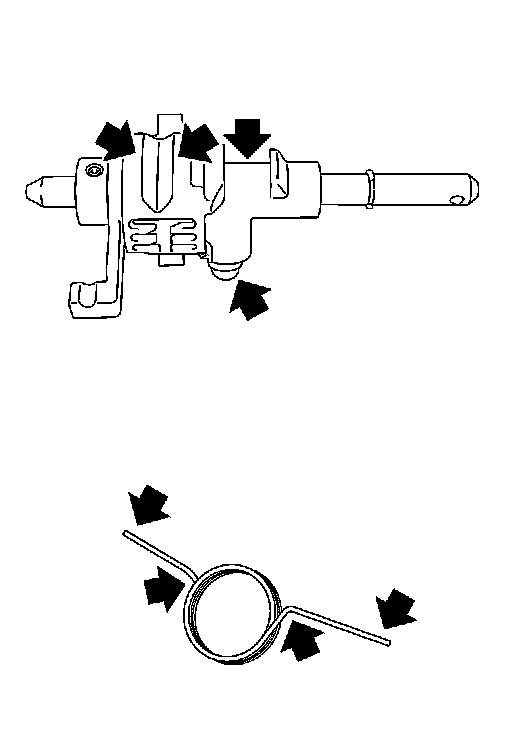

Striking Rod Assembly and Return Spring





- Check contact surfaces and sliding area for wear, damage, bending, etc. If necessary, replace parts.

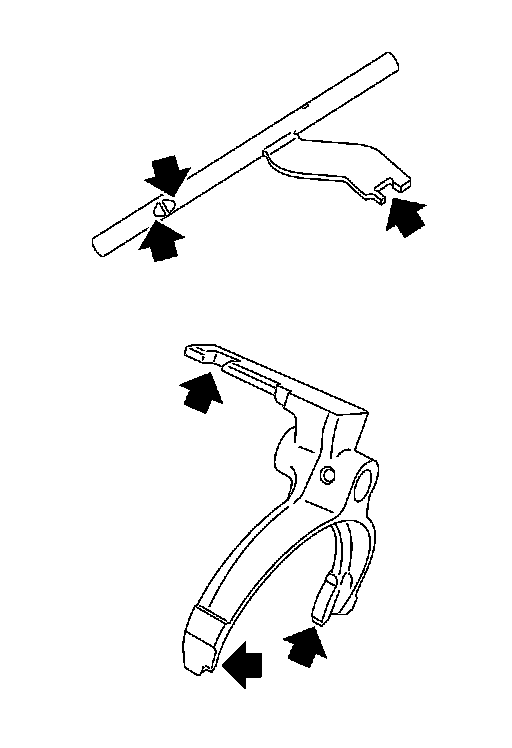

Fork Rod and Shift Fork





- Check contact surfaces and sliding area for wear, damage, bending, etc. If necessary, replace parts.

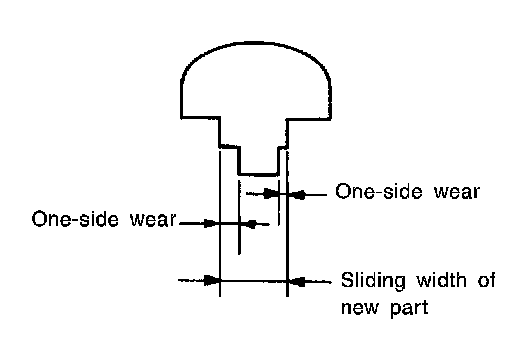

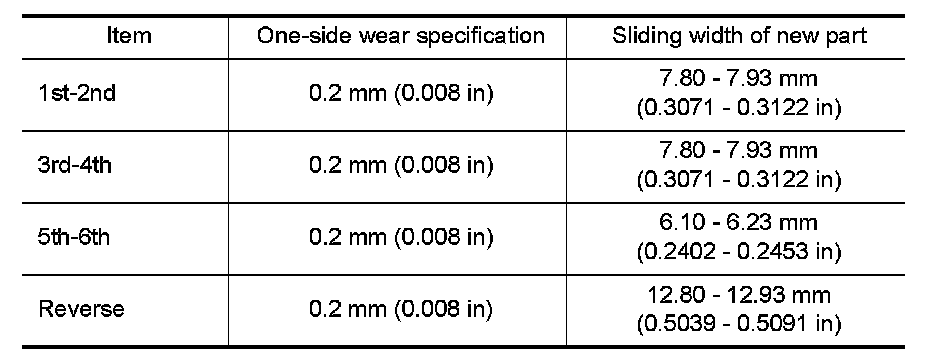

- Check if the width of shift fork hook (sliding area with coupling sleeve) is within allowable specification below.






ASSEMBLY






1.Temporarily install return spring to striking rod assembly.

CAUTION:
Be careful with the orientation of return spring.

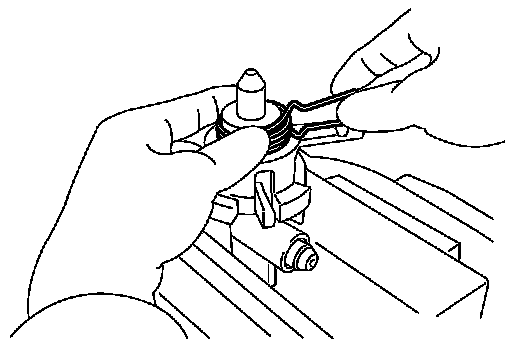

2.Attach one end of the return spring to striking interlock of striking rod assembly while holding return spring.

CAUTION:

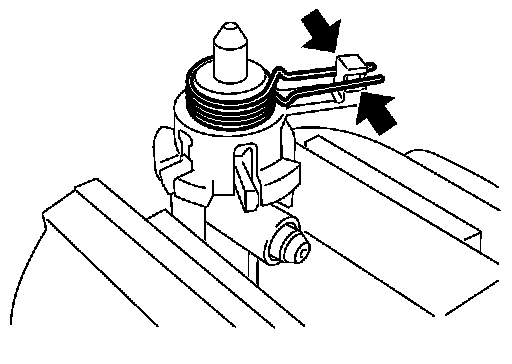

- When installing, check that return spring is securely seated in the groove of striking interlock of striking rod assembly.
