Air Breather Hose

AIR BREATHER HOSE

Removal and Installation

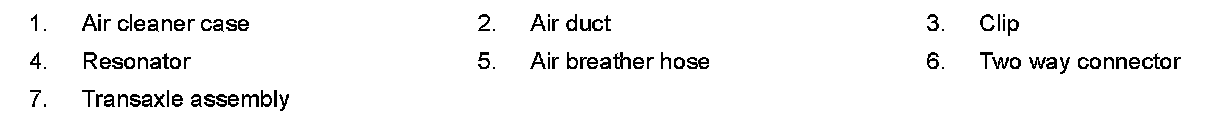

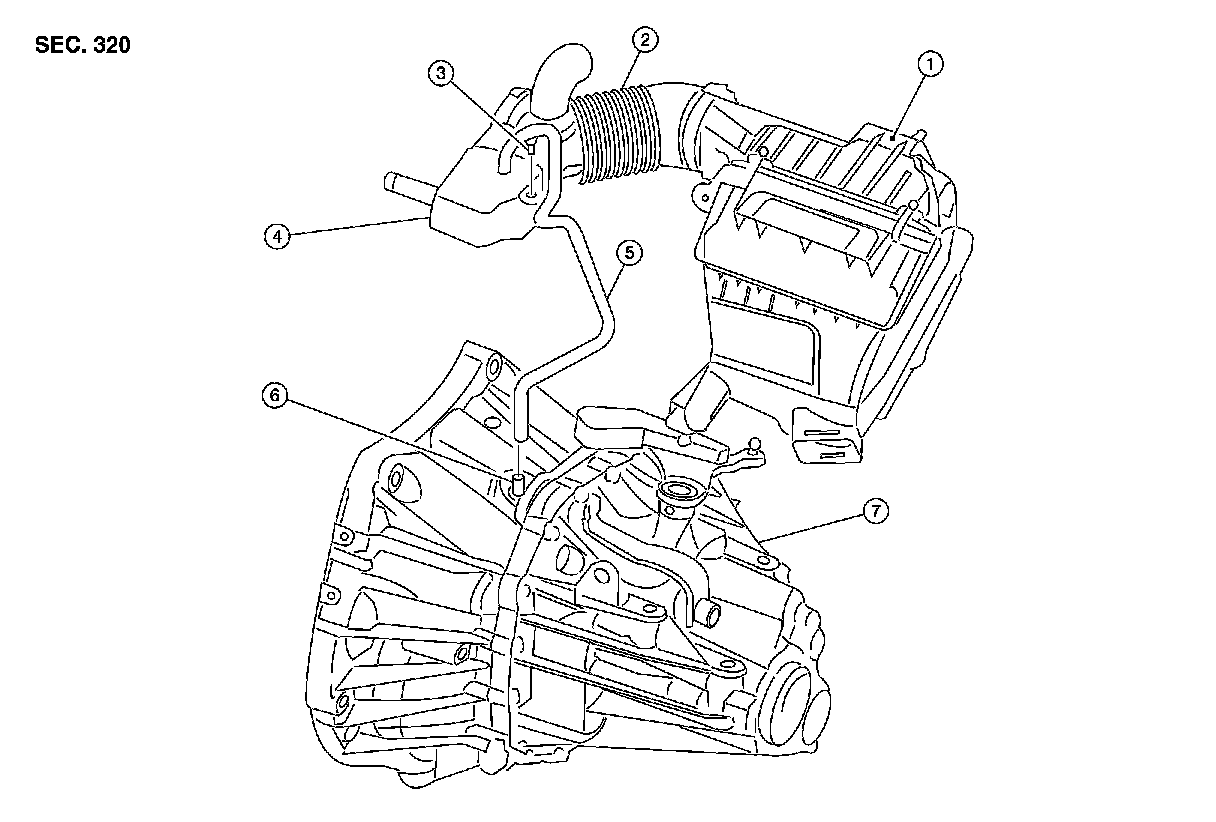

COMPONENTS












REMOVAL

1.Disconnect air breather hose clips and disconnect air breather hose from resonator.
2.Remove air breather hose.

CAUTION:
When removing air breather hose, be sure to hold two way connector securely.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:
- Make sure air breather hose is not collapsed or blocked due to folding or bending when installed.
- When installing air breather hose on two way connector, push it until it hits transaxle case.
- When installing air breather hose on two way connector, aim paint mark toward the vehicle front.
- When installing air breather hose to resonator, make sure that clips are fully inserted.
