Air Breather Hose

AIR BREATHER HOSE

Removal and Installation

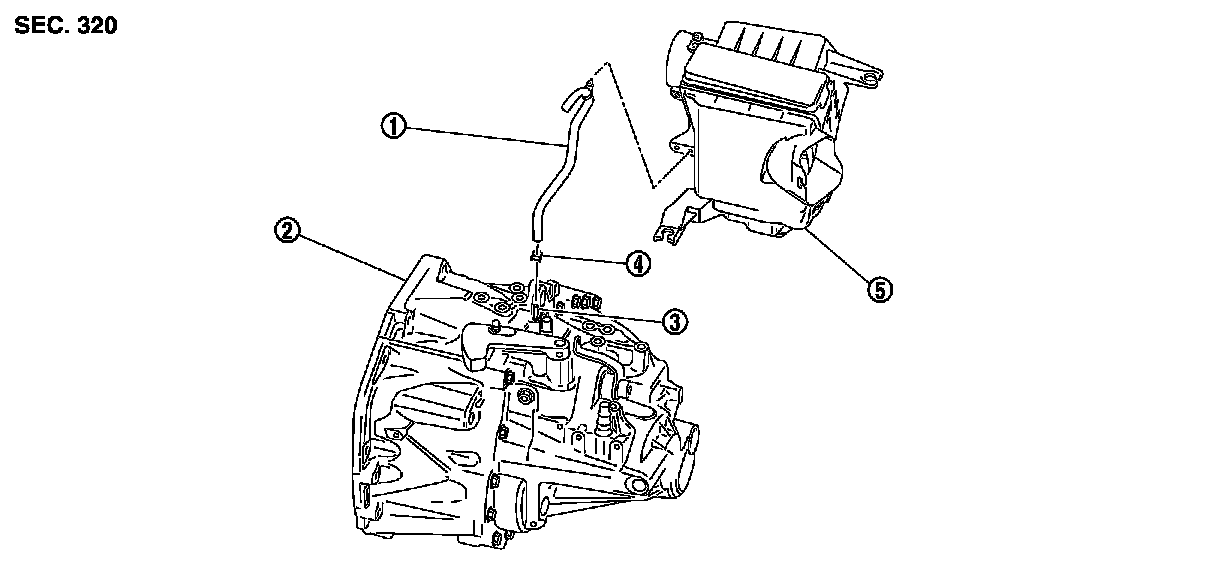

COMPONENTS












REMOVAL

1.Disconnect air breather hose clip and disconnect air breather hose from air cleaner case.
2.Release air breather hose clamp and remove air breather hose.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:
- Make sure there are no pinched or restricted areas on the air breather hose caused by bending or winding when installing it.
- Be sure to insert air breather hose into air breather tube until hose end reaches the tube's base.
- Install air breather hose with painted mark facing forward.
- Install air breather hose to air cleaner case by fully inserting the clip.
