Changing M/T Oil

M/T OIL

Changing M/T Oil


DRAINING

1.Start engine and let it run to warm up transaxle.

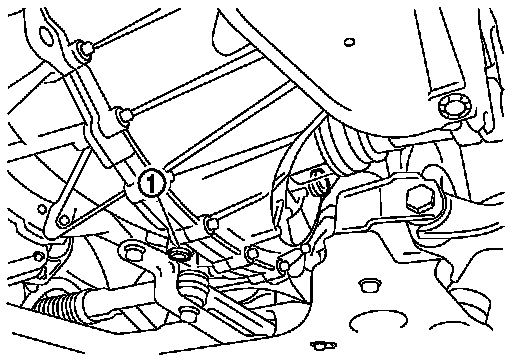

2.Stop engine. Remove drain plug (1) and drain oil.
3.Install a new gasket onto drain plug (1) and install it into transaxle. Tighten drain plug to specification. Disassembly And Assembly.

CAUTION:
Do not reuse gasket.

FILLING

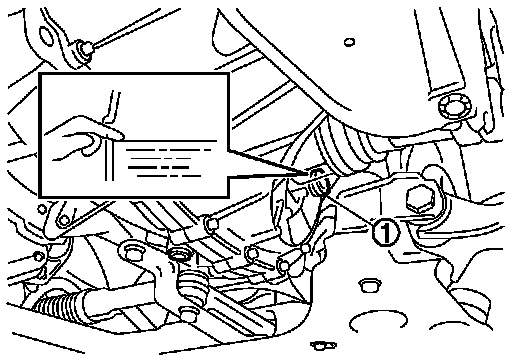

1.Remove filler plug (1). Fill with new oil until oil level reaches the specified limit at filler plug hole as shown.

2.After refilling oil, check oil level. Install a new gasket on filler plug (1), then install it into transaxle. Tighten filler plug to specification. Disassembly And Assembly.

CAUTION:
Do not reuse gasket.
