Checking M/T Oil

M/T OIL

Checking M/T Oil


OIL LEAKAGE AND OIL LEVEL

1.Make sure that oil is not leaking from transaxle or around it.

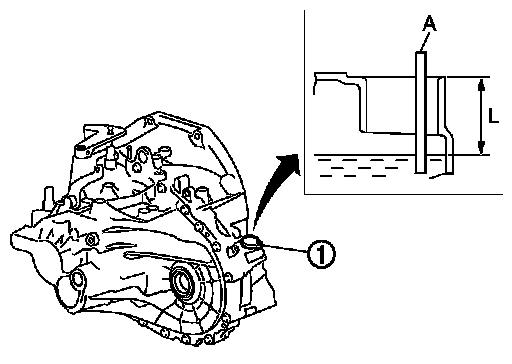

2.Remove filler plug (1).
3.Check the oil level (L) using suitable gauge (A) as shown.
Oil level (L): 61.0 - 67.0 mm (2.402 - 2.638 in)

CAUTION:
Do not start engine while checking oil level.
4.Install a new O-ring onto filler plug (1) and then install it into transaxle. Tighten filler plug to specification. Disassembly And Assembly.

CAUTION:
Do not reuse O-ring.
