Changing M/T Oil

M/T OIL

Changing M/T Oil


DRAINING

1.Start engine and let it run to warm up transaxle.





2.Stop engine. Remove drain plug and drain oil.
3.Install a new gasket onto drain plug and install it into transaxle.
Tighten drain plug to specification. Disassembly And Assembly.

CAUTION:
Do not reuse gasket.

FILLING

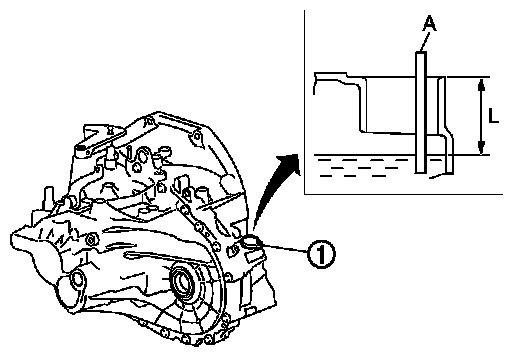

1.Remove filler plug (1). Fill with new oil and check the oil level (L)
using suitable gauge (A) as shown.
Oil level (L): 61.0 - 67.0 mm (2.402 - 2.638 in)
2.Install a new O-ring onto filler plug (1) and then install it into transaxle. Tighten filler plug to specification. Disassembly And Assembly.

CAUTION:
Do not reuse O-ring.
