Side Oil Seal

SIDE OIL SEAL

Removal and Installation


REMOVAL

1.Remove front drive shafts from transaxle assembly. Front Drive Shaft Left Side
and Front Drive Shaft Right Side.

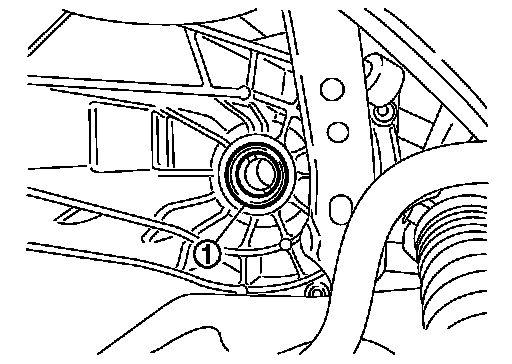

2.Remove differential side oil seal (1) using a suitable tool.

CAUTION:
Do not damage transaxle case and clutch housing.

INSTALLATION

Installation is in the reverse order of removal.

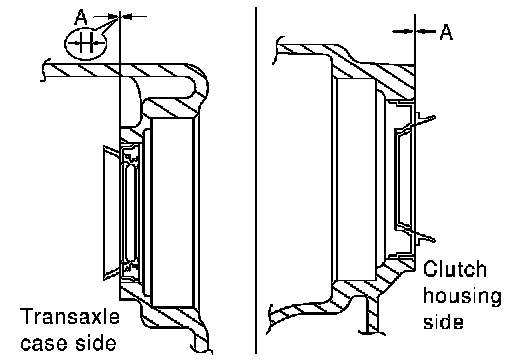

- Install differential side oil seal to clutch housing and transaxle case to the specified dimension (A) using Tools.
Dimension (A): -0.5 - 0.5 mm (-0.020 - 0.020 in)
Tool numbers: ST-30720000 (J-25405)
: ST-33400001 (J-26082)

CAUTION:
- Do not reuse oil seal.
- Do not damage transaxle case and clutch housing.
- Check oil level after installation. Checking M/T Oil.
