Torque Converter: Service and Repair

REPAIR FOR COMPONENT PARTS

Torque Converter and Converter Housing Oil Seal

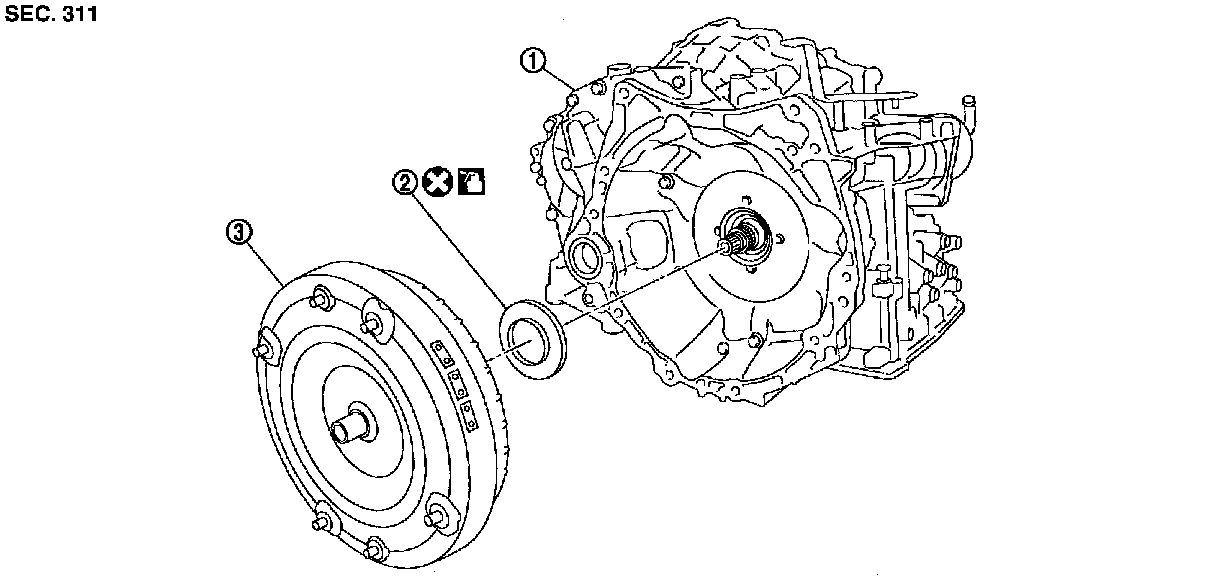

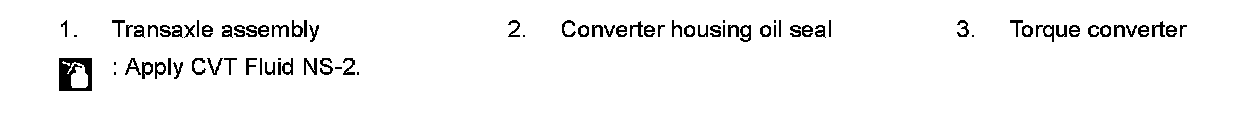

COMPONENTS












DISASSEMBLY

1.Remove torque converter.
2.Remove the converter housing oil seal using suitable tool.

CAUTION:
Do not scratch converter housing.

ASSEMBLY

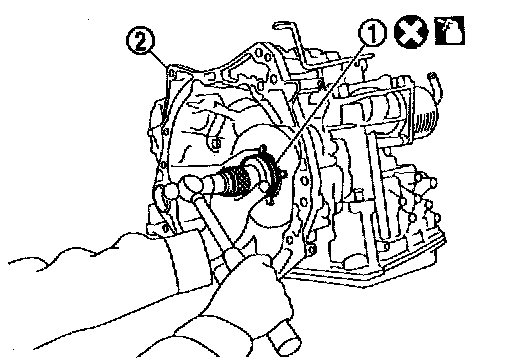

1.Drive the converter housing oil seal (1) in evenly using suitable tool as shown.
- CVT (2)

CAUTION:
- Do not reuse converter housing oil seal.
- Apply CVT fluid to converter housing oil seal.
2.Install torque converter.
