Primary Speed Sensor

ON-VEHICLE SERVICE

Primary Speed Sensor

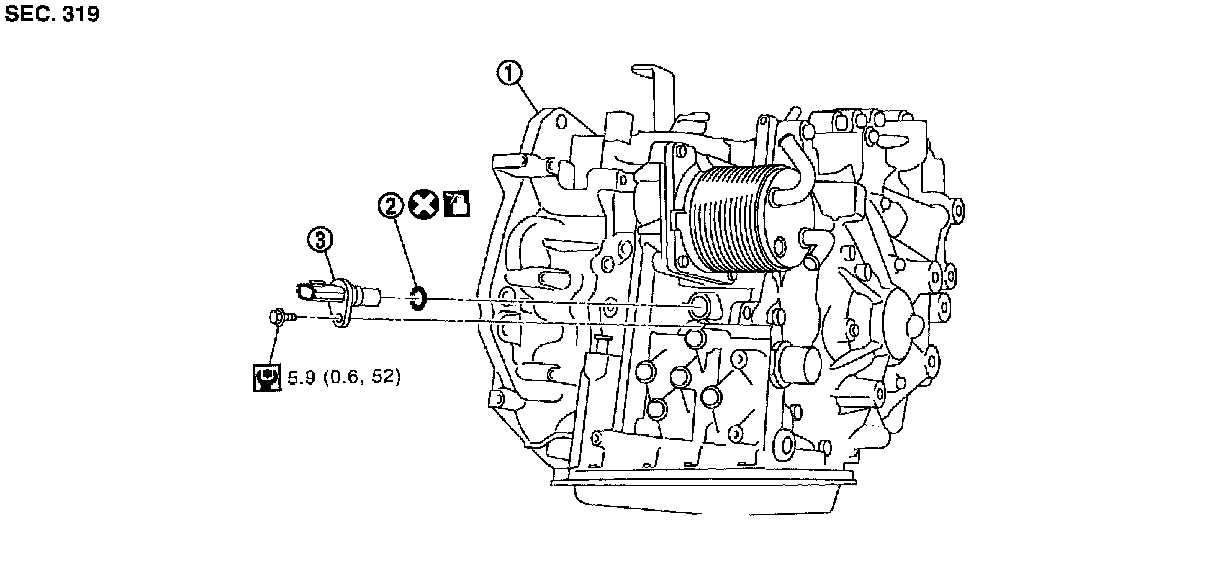

COMPONENTS












REMOVAL AND INSTALLATION (MR20DE)

Removal
1.Remove the engine undercover. Service and Repair.
2.Disconnect the primary speed sensor connector.
3.Remove the primary speed sensor.
Installation
Installation is in the reverse order of removal.

CAUTION:
- Do not reuse O-ring.
- Apply CVT fluid to O-ring.
- After installation is complete, check for CVT fluid leakage and CVT fluid level. Procedures.

REMOVAL AND INSTALLATION (QR25DE)

Removal
1.Remove front air duct. Removal And Installation.
2.Disconnect the primary speed sensor connector.
3.Remove the primary speed sensor.
Installation
Installation is in the reverse order of removal.

CAUTION:
- Do not reuse O-ring.
- Apply CVT fluid to O-ring.
- After installation is complete, check for CVT fluid leakage and CVT fluid level. Procedures.
